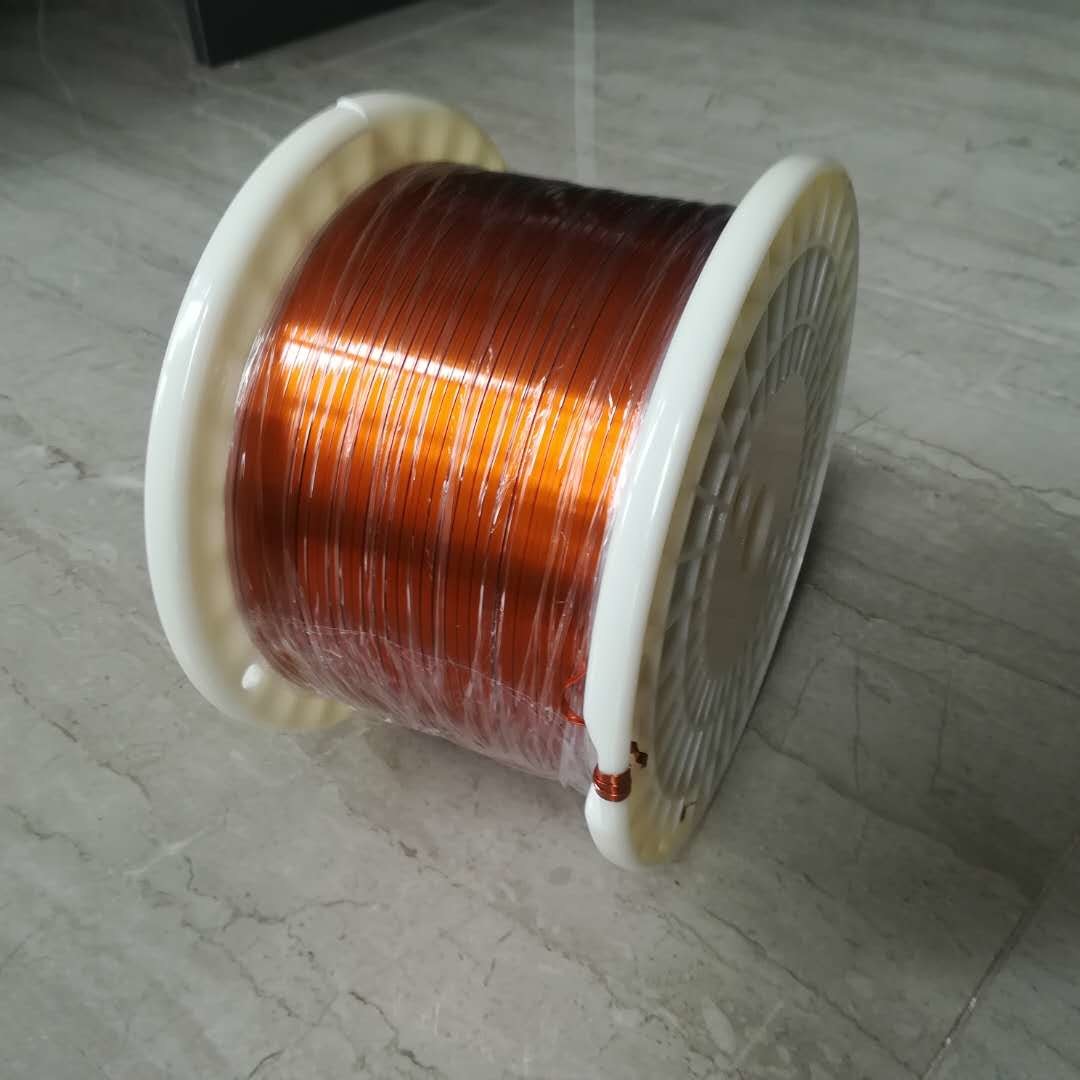

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEWH

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 days
Payment Terms:	T/T, Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width Of Conductor:	2.4mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness Of Conductor:	0.5mm
Applications:	Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor	Thermal Grade:	220
Key Word:	Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor
Highlight:	Flat Copper Wire Rectangular , 2.4mm Solderable Copper Wire , Motor Solderable Copper Wire

Product Description

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

If you are looking for reliable, high-performance solutions for motor and transformer winding, our custom enameled rectangular copper wires are the ideal choice. We are committed to providing high quality and customized services, and are committed to supporting your projects with the best quality enameled rectangular copper wires on the market.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		T	W	T	W	T	W	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.400	0.025	/	/	/
	Max	0.509	2.460	0.040	0.550	0.0550	2.500		16.090
	Min	0.491	2.340	0.010				0.700
No. 1		0.501	2.405	0.039	0.544	0.544	2.483	4.880	14.437
No. 2		0.500	2.406	0.039	0.545	0.545	2.485	4.331
No. 3		0.502	2.407	0.039	0.543	0.543	2.484	3.660
No. 4								4.515
No. 5								4.600
No. 6								4.770
No. 7								4.440
No. 8								4.250
No. 9								3.990
No. 10								3.750
Avg		0.501	2.406	0.022	0.039	0.544	2.484	4.319
No.of reading		3	3	3	3	3	3	10
Min. reading		0.500	2.405	0.021	0.022	0.543	2.483	3.660
Max. reading		0.502	2.407	0.023	0.039	0.545	2.485	4.880
Range		0.002	0.002	0.002	0.001	0.002	0.002	1.220
Result		OK	OK	OK	OK	OK	OK	OK	OK
