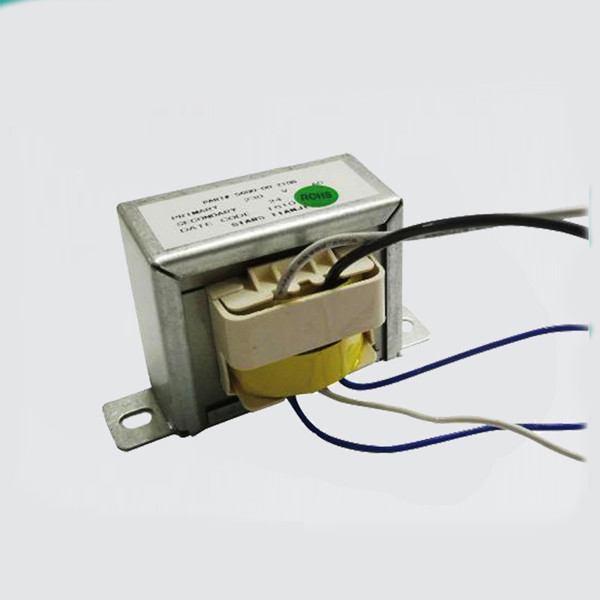

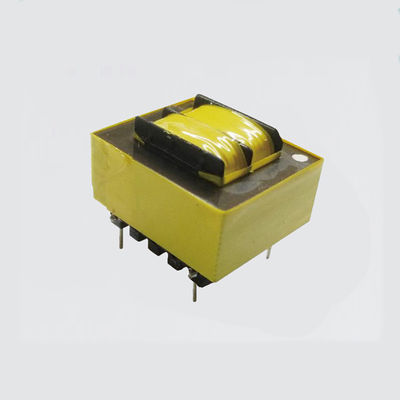

EI Series Pin Type Ferrite Core Transformer Low Frequency Electrical Transformers

Basic Information
Brand Name: Rvyuan
Certification: RoHS
Model Number: EI
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Place Of Origin: China Name: Low Frequency Power Transformer
Type: EI Out Power: 0.5-1000W
Core Type: EI28-EI114 Material: Copper Wire
High Light:

high frequency transformer

,

electrical transformers


Product Description

EI 0.5-1000W SERIES PIN TYPE LOW FREQUENCY POWER TRANSFORMER

Technique is presented for designing transformers with given size and type of structure to have maximum volt-ampere (VA) output while at the same time insuring the satisfaction of a number of design constraints. The technique is based on a mathematical optimization problem whose solution is a set of parameter values characterizing the maximum VA output design. The existence and uniqueness of the solution to this problem are established, and a set of closed-form expressions are presented for the optimum design parameter values. The resulting design technique eliminates overdesign problems in that the smallest physical size structure will result consistent with the design objectives. The results presented here also provide information on possible design trade-offs between various parameters. Although a graphical design procedure is illustrated here, the ultimate utility of this analytical technique will be in a comprehensive computer-aided design program.

FEATURES

Low loss:large output power,high

efficiency,limited temperatuer

rise.Good safety and reliability

APPLICATION

Used for audio equipment,telephone

exchanger,air-conditioner home

appliance etc.Using different mounting

types such as pins,lesd wire or others.

Item Model

Corpe

Output power(w)





































ST-DB(61740*)

EI28/8×12

0.5-1



EI28/8×16

0.7-1



EI35/9.6×10

0.2-0.8



EI35/9.6×12.5

0.25-1



EI35/9.6×16

0.4-1.7



EI35/9.6×20

0.6-2.5



EI41/13×13

0.6-2.3



EI41/13×16

1-3.6



EI41/13×21

1.6-5.5



EI41/13×26

2.3-7.7



EI48/16×16

2-5



EI48/16×20

2.8-7.2



EI48/16×25

4.6-11.1



EI48/16×32

7-10



EI54/18×18

5-12



EI54/18×22.5

8-17



EI54/18×29

11-25



EI54/18×36

17-34



EI57/19×19

7-16



EI57/19×24

14-21



EI57/19×30

16-32



EI57/19×38

20-40



EI66/22×22

17-35



EI66/22×28

24-45



EI66/22×35

36-58



EI66/22×45

55-77



EI76.2/25.4×25

65-88



EI76.2/25.4×31.5

71-95



EI76.2/25.4×40

70-97



EI76.2/25.4×50

86-123



EI85.8/28.6×29

70-95



EI85.8/28.6×36

84-120



EI85.8/28.6×46

105-154



EI85.8/28.6×58

130-200



EI96/32×40

90-130



EI96/32×45

100-150



EI96/32×50

110-160



EI105/35

500-700



EI114/38

700-1000
