| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012 - 0.8 mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Thermal Rating: | 130-220 | Package:: | Plastic Spool |
|---|---|---|---|
| Delivery: | 2-30 Days | Size Range: | 0.012-4.5mm |
| High Light: | submersible motor winding wire,electric motor winding wire |
||

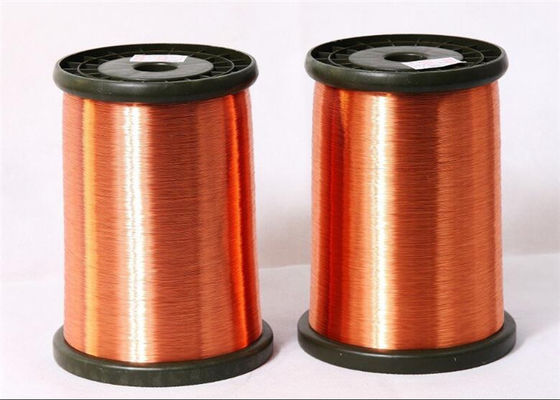

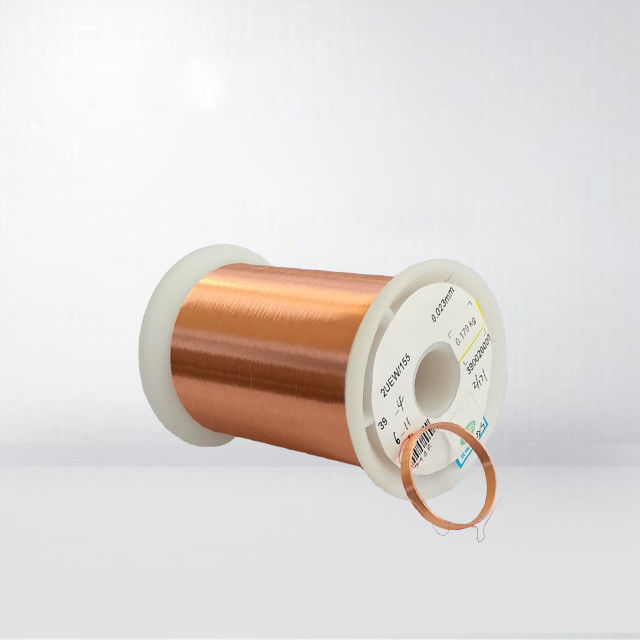

0.012 - 0.8MM ULTRA FINE COPPER WIRE VOICE COILS WIRE
Enameled copper Winding wire are widely used in electric devices because of their conductivity. d Copper Enameled wire are meant to carry electrical currents. Specially, Enamel Copper Magnet Wire has less resistance than almost any other insulated wires. This means that generators using enamel copper wires will produce more electricity than generators using most other substances. Coils of Motors made of Enamel Copper Winding Wire will produce more motion. Transformers made of Enamel Copper Wire will lose less energy.
FEATURES AND BENEFITS
1. High quality and reasonable price
2. Perfect,Timely after-sales service
3. Sweet safe packing are available
4. Professional production and sales Team
5. Double or Three Type Insultaions covered wires
6 NEMA/JIS/IEC and any Local Standards approved
APPLICATION
1) Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads.
2) Automotive sensors and coils as relais and ignition coils.
3) Generators,dry-type or oil-immersed.
4) Anti-explosion motor,air-conditioner compressor,washing machines.
5) Military and space applications.
SPECIFICTION
|
Specification |
1.5 mm |
Weight |
|
|
Carried standard |
IEC60317-3 |
Testing date |
|
|
No. |
Testing item |
Unit |
Requirement |
Testing result |
||||||
|
1 |
Appearance |
|
Uniform painting smooth no burrs |
Qualified |
||||||
|
2 |
Dimension |
|||||||||
|
|
Max overall dimension |
mm |
≤ 1.606 |
1.59 |
||||||
|
Conductor dimension |
mm |
1.50±0.015 |
1.50 |
|||||||
|
Insulation thickness |
mm |
0.071≤δ≤ 0.107 |
0.09 |
|||||||
|
3 |
Conductor resistance |
/M |
≤0.009968 |
0.009619 |
||||||
|
4 |
Elongation rate |
% |
≥ 32 |
41.0 |
||||||
|
5 |
Thermal shock |
℃ |
5.0mm/ 175℃/30min |
OK |
||||||
|
6 |
Resilience |
º |
≤ 5.0 |
2.0 |
||||||
|
7 |
Flexibility and adhesion |
|||||||||
|
|
Winding test |
|
≤ 1 d |
OK |
||||||
|
Tensile test |
% |
/ |
/ |
|||||||
|
Peel test |
Time |
≥100 |
128 |
|||||||
|
8 |
Scratch test |
|
||||||||
|
|
One-way scratch paint |
N |
The average minimum scratch force 13.7 N |
20.60 |
||||||
|
Reciprocating scratch paint |
Time |
Scratch force times the minimum 11.6N |
20.47 |
|||||||
|
9 |
Soft breakdown |
|
270 ℃ 2min |
|
||||||
|
10 |
Breakdown voltage |
|||||||||
|
|
Room temperature |
KV |
≥ 5.0 |
9.7 10.0 8.9 11.2 9.8 |
||||||
|
High temperature |
≥ / |
/ |
||||||||
|
11 |
Film test Continuous Pinhole |
|
≤ / Hole |
/ |
||||||
|
12 |
Solvent resistance |
H |
≥ / H |
/ |
||||||
