| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 155/180/220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Thermal Rating: | 155/180/220 | Insulation: | UEW/PEW/AIW/EIW |
|---|---|---|---|
| Conductor Material:: | Round Copper | Size: | 0.012-4.5mm |
| High Light: | electric motor copper wire,electric motor winding wire |
||

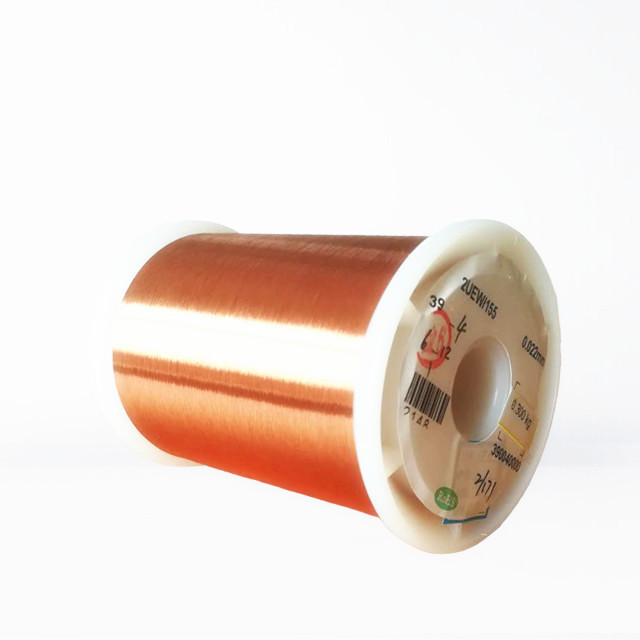

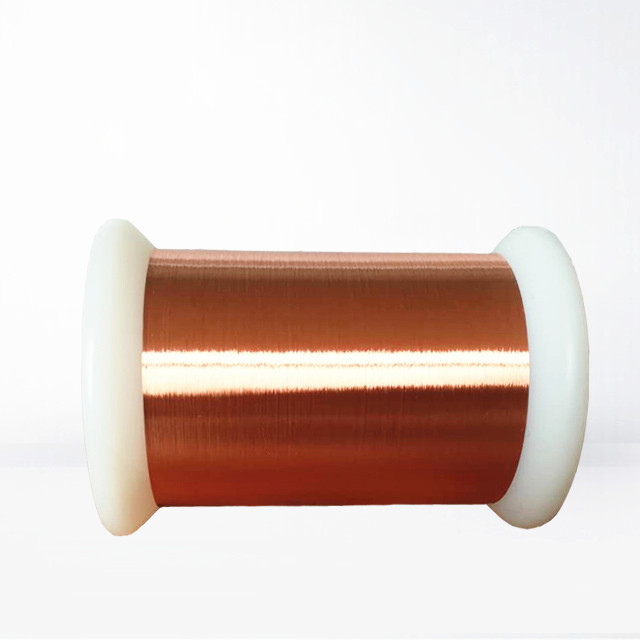

INSULATED SUBMERSIBLE MOTOR WINDING WIRE VOICE COIL WIRE FOR SALE
Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil. Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.
FEATURES
High cut through
Excellent electricity performance
Excellent resistance to abrasion and solvent
Excellent heat shock,adherence and flexibility
High resistance to heat shock
APPLICATION
Modified Polyester Coated Wires are suitable for all "H" Class application such as dry type transformers, stator type winding fractional and integral H.P. motors, D.C. Fields and Armature windings, Auto Electrical, Hand Tools, Kitchen machine motors, Motors required for chemical industries and Furnace motors, high Torque continuous working motors.tc.
SPECIFICATION
| Manufacturing Range & Specification | |||
| Temp. Class | Type of Enamel | Diameter Range | Specification |
| 'B', 105oC / 120oC | Polyvinyl Acetal (PVA / PVF) | Copper: | IEC-60317-12 |
| 0.012 to 4.5 mm | NEMA MW-15 | ||
| ‘F’, 155oC | Polyester | IEC-60317-03 | |
| IS-13730-03 | |||
| ‘H’, 180oC | Polyesterimide | IEC-60317-08 | |
| IS-13730-08 | |||
| ‘C’, 200oC | Polyesterimide (base coat) + | IEC-60317-13 | |
| Polyamide-imide (top coat) | IS-13730-13 / | ||
| NEMA MW-35 | |||
