| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | CLASS B / F |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Diameter: | 0.1-0.51mm | Temperature: | 130-220 |
|---|---|---|---|
| AWG SIZE: | 24-44 | Conductor: | Copper |
| Highlight: | served litz wire,rectangular litz wire |
||

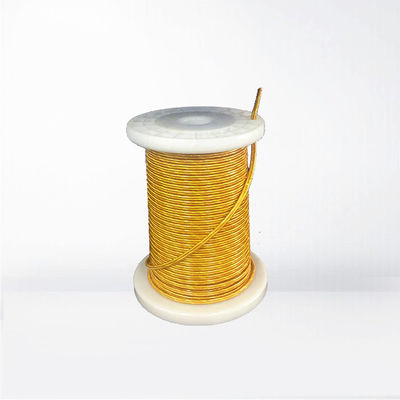

0.1 - 0.51MM CALSS B/F TRIPLE INSULATED LITZ WIRE ENAMELED MAGNET WIRE FOR NETBOOK COMPUTER
Triple insulated wire ofers extra protection against pinholes Application: Transformer Insulation Wire of Power Supplier & AC/DC Adapters, Mobile Phone Battery Chargers and Ring Coil & Choke & PC Computer, Netebook Computer, Digital Camera Insulation wire.LZ-TILW comprises of bound strands of UEW Litz wire covered with three insulation layers, which can enhance the resistance to high-frequency operations, which can completely isolate the primary from secondary of the transformer without interlayer tape.
FEATURES
Conductor : Solid and Stranded Copper & TIN PLATED Copper
Insulation : ETFE
Wall Thickness : 0.075-0.1mm
Temperature & Voltage Rating : Rating130℃ ~150℃ , 600V (Class B)
Dielectrical Strength:70KV/mm (0.1mm Wall Thickness : 6KV up)
Colors:ellow or other colors are acceptable.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met
Transformer Insulation Wire of Power Supplier & AC/DC Adapters,
Mobile Phone Battery Chargers and Ring Coil & Choke & PC Computer,
Netebook Computer,
Digital Camera Insulation wire.
SPECIFICATION
|
Dia.mm |
Tolerance |
|
Max.Overall Diameter |
Max. Conductor Resistance Ω/km |
Elongation % |
Standard Length (m) |
|
0.20 |
±0.008 |
0.405 |
0.445 |
607.6 |
15 |
5000 |
|
0.21 |
±0.008 |
0.415 |
0.455 |
549.0 |
15 |
5000 |
|
0.22 |
±0.008 |
0.425 |
0.465 |
498.4 |
15 |
5000 |
|
0.23 |
±0.008 |
0.435 |
0.475 |
454.5 |
15 |
5000 |
|
0.24 |
±0.008 |
0.445 |
0.485 |
416.2 |
15 |
5000 |
|
0.25 |
±0.008 |
0.455 |
0.495 |
382.5 |
15 |
5000 |
|
0.26 |
±0.01 |
0.465 |
0.505 |
358.4 |
15 |
5000 |
|
0.27 |
±0.01 |
0.475 |
0.515 |
331.4 |
15 |
5000 |
|
0.28 |
±0.01 |
0.485 |
0.525 |
307.3 |
15 |
5000 |
|
0.29 |
±0.01 |
0.495 |
0.535 |
285.7 |
20 |
5000 |
|
0.30 |
±0.01 |
0.505 |
0.545 |
262.9 |
20 |
5000 |
|
0.32 |
±0.01 |
0.525 |
0.565 |
230.0 |
20 |
2500 |
|
0.35 |
±0.01 |
0.555 |
0.595 |
191.2 |
20 |
5000 |
|
0.37 |
±0.01 |
0.575 |
0.615 |
170.6 |
20 |
5000 |
|
0.40 |
±0.01 |
0.605 |
0.645 |
145.3 |
20 |
5000 |
|
0.45 |
±0.01 |
0.655 |
0.695 |
114.2 |
20 |
4500 |
|
0.50 |
±0.01 |
0.715 |
0.755 |
91.43 |
20 |
4500 |
|
0.55 |
±0.02 |
0.765 |
0.805 |
78.15 |
20 |
4500 |
|
0.60 |
±0.02 |
0.815 |
0.855 |
65.26 |
20 |
4000 |
