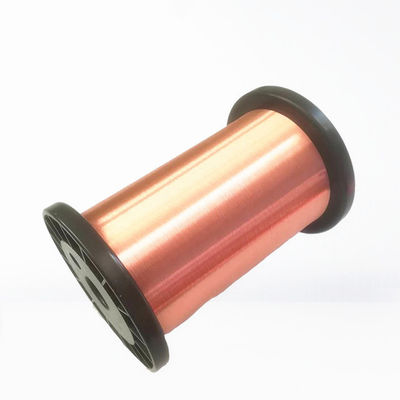

0.012 - 0.8mm AWG 20 - 56 Directly Soldered Ultra Thin Enameled Copper Wire Magnet Wire For Audio / Video

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: AWG 20 - 56
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: L/C, T/T
Supply Ability: Satisfy your demand
Detail Information
Product Name: Audio Use Super Fine Copper Wire AWG: 20-56
Thermal Rating: 130/150/180/220 Application: Audio&video
Insulation: UEW/SEIWPEW Stock: Available
Size Range: 0.012-0.8mm
Highlight:

round copper wire

,

soldering copper wire


Product Description

0.012 - 0.8MM AWG 20-56 DIRECTLY SOLDERED ULTRA THIN ENAMELED COPPER WIRE MAGNET WIRE FOR AUDIO VIDEO

Imported high quality copper and environmental protection enamel are adopted in the series of the products to improve tensile strength and uniformity of the film.Stable impedance, uniform diameter, good electrical performance are always kept and resistance to high-temperature, wear and corrosion have further promoted in order to guarantee the wonderful effect of bonding and range, bright and clean surface.It fits the harsh environment of special motors and meets the requirements of the times for it has replaced the varnishing process and improved its environmental protection level.

FEATURES AND BENEFITS

  • Directly soldered Copper Wire

  • Excellent bending property

  • High flexibility of the enamel

  • Good resistance to abrasion

  • High mechanical property

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

EXECUTIVE STANDARDS

IEC, JIS and NEMA.

APPLICATIONS

  • Self-bonding inductance coils:Inductance coils of products such as toys, sensors,laser magnetic heads, chip inductors,clocks, high frequency magnetic core

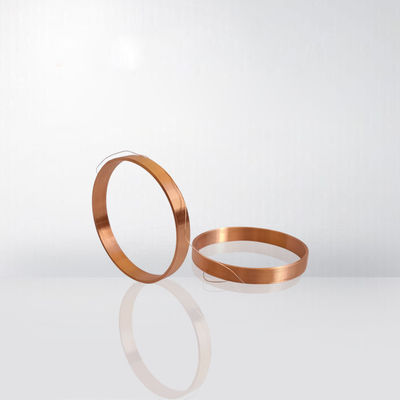

  • voice coils: All kinds of trumpet voice coils, audio video cable coils.

0.012 - 0.8mm AWG 20 - 56 Directly Soldered Ultra Thin Enameled Copper Wire Magnet Wire For Audio / Video 0

Brand name

Ruiyuan

Specification Met

MW 131 C

Material type

copper wire

Finish

enamel

Bare copper dia.

0.012-0.80mm

Insulation

Solderable polyurethane

Thermal class

155 Degrees celsius

Shape

Round

Bond method

solvent or heat bonding

Colof

natural or according to requirements

Spool

PT-15,PT-10.PT-4,PL-2,PC-1

Certification

UL,SGS,REACH,ROHS

Base coat

mod. Polyurethane

Bond coat

Polyamide(nylon)
