Detail Information

Strands:	156	Temperature:	155
Breakdown Voltage:	Min.6000	Diameter:	0.32mm
Conductor:	Copper	Resistance:	≤0.001428 Ω/m
Highlight:	PI insulation copper litz wire , PET litz wire high frequency , PTFE litz wire 250 strands

Product Description

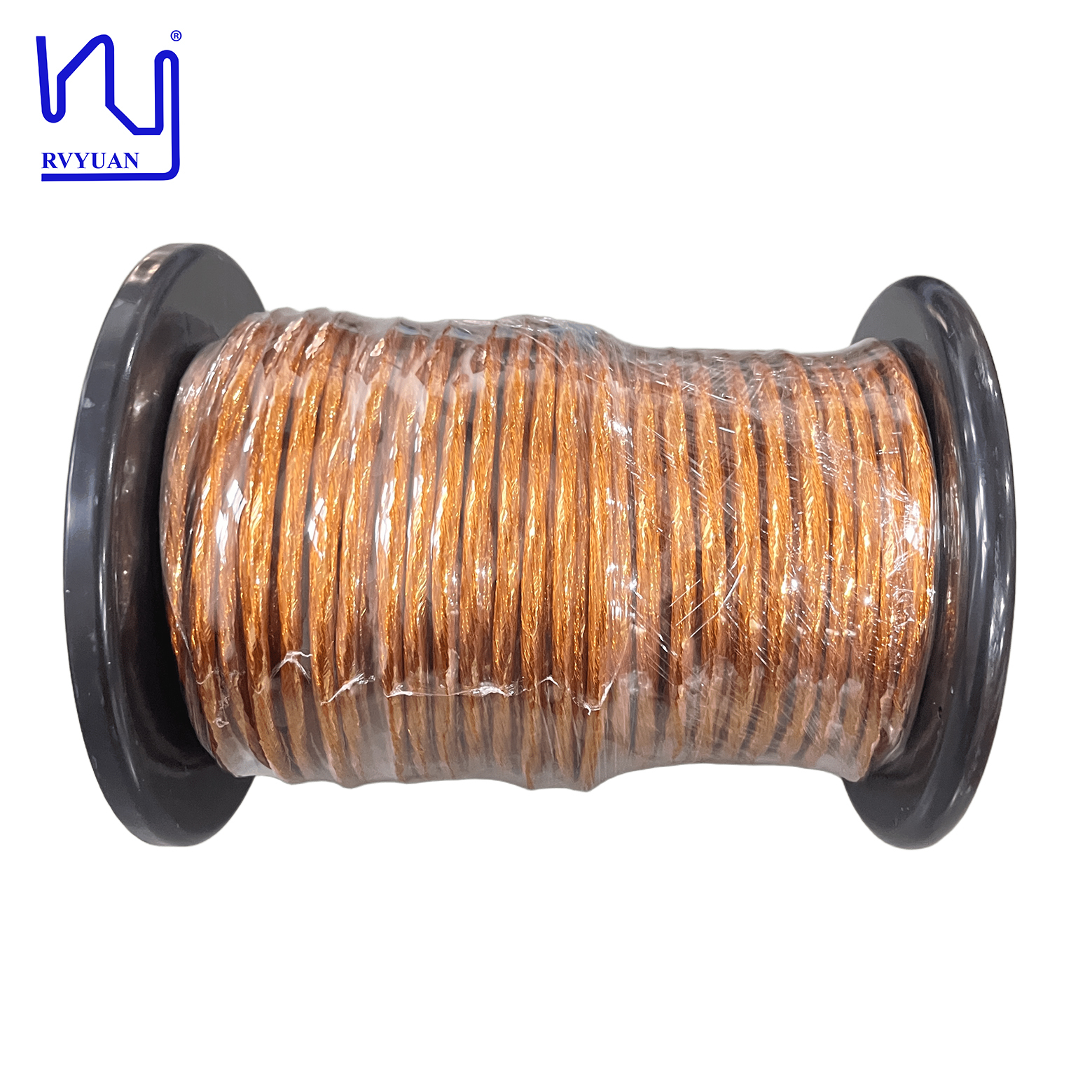

PI/PET/PTFE/ETFE Insulation Copper Litz Wire 0.32mm 250 Strands

This high-performance taped litz wire features 250 strands of 0.32mm enameled copper wire wrapped with polyesterimide film, specifically engineered for high-frequency applications where efficiency and durability are critical.

Key Features & Applications

Excellent thermal stability with performance up to 180°C
Ideal for electric vehicle on-board chargers and DC fast chargers
Compact form factor perfect for space-constrained designs
Reduces eddy current losses in transformers and switch-mode power supplies
Minimizes skin effect with 250-strand configuration
Extends transformer life with lower operational temperatures

Technical Specifications

Specification	Technical Requirement	Sample Measurement
Name	Taped Litz Wire (180/class)
Model	2UEW-F-PI
Specification	0.32X250
Tape Name	PI
Tape Specification	0.025x20
Single Wire Diameter (mm)	0.340-0.357	0.344-0.352
Conductor (mm)	0.32±0.005	0.315-0.320
Outer Diameter (mm)	≤6.00	5.10-5.57
Resistance (Ω/m)	≤0.001428	0.001340
Dielectric Strength (V)	≥6000	13700
Pitch (mm)	130±20	130
Number of Strands	156	(31X4)+32
Tape Overlap (%)	≥50	54
Winding	No crack	OK

Frequently Asked Questions

Can I customize products with my own logo, size, and shape?

Yes, but the Minimum Order Quantity (MOQ) is subject to negotiation.

What are your payment methods?

T/T, D/P, L/C, PayPal.

Which courier services do you use?

FedEx, DHL, TNT, UPS, with discounts up to 80%.

How are your products different from competitors'? What are your advantages?

We offer a full range of high-frequency magnet wire products, including litz wire, rectangular enameled copper wire, round enameled copper wire, triple-insulated wire, etc., to meet various requirements. We support small-batch customization, ensuring quality and delivery even during your R&D or startup phase.

Do you charge a mold fee? How much? Is it refundable? How?

A mold fee applies for special customized products, and the amount depends on the specific specifications. The mold fee is refundable after a certain order quantity is reached.

Do you have a Minimum Order Quantity (MOQ)?

Yes, the MOQ is determined based on the wire specification and type.

What testing equipment do you have?

Laser diameter gauge, high-voltage spark tester, elongation tester, spring-back tester, withstand voltage tester, solderability tester, Resistance Tester, etc.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	2UEW-F-PI 0.07x800

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand
