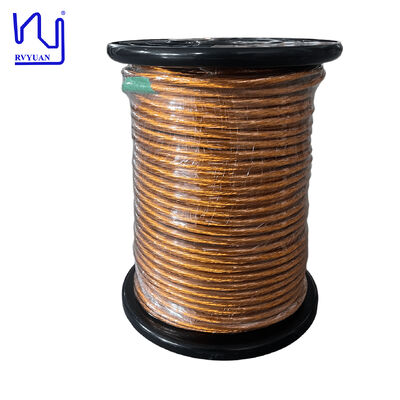

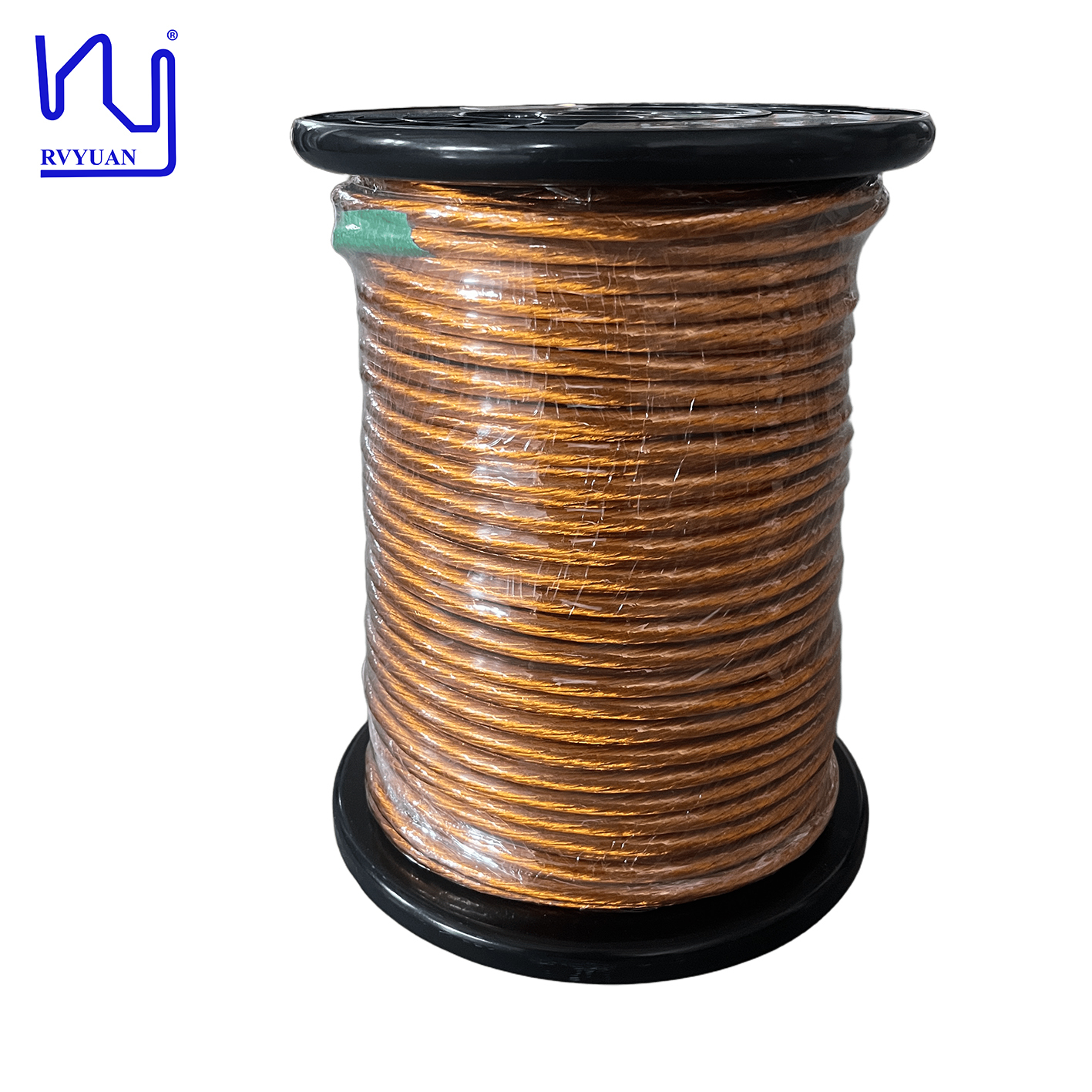

Taped Litz Wire 3000/38 AWG Max.O.D.8.23mm High Voltage Withstand Kapton Serving Litz Wire For Transformer
This taped Litz wire is specifically designed for transformer windings, featuring exceptional high voltage withstand capability with a minimum dielectric strength of 6000V and an actual achievable range of 13,400V to 13,700V. Constructed with 0.1mm (39AWG) polyurethane enameled copper wire strands available in 155°C and 180°C temperature ratings, this wire is twisted from 3,000 strands with a finished outer diameter ranging from 7.38mm to 7.92mm.
The outer layer is wrapped with polyester-imide tape, providing superior stability for the internal stranded construction. For 3,000-strand configurations, tape wrapping is preferred over film for enhanced structural integrity.
Technical Specifications
Name: Taped Litz wire (180/class)
Spec: 0.10X 3000
Model: 2UEW-H-PI(N)
Tape Name: PI(N)
Tape Spec: 0.025x20
| Item |
Tech Requirement |
Sample 1 |
Sample 2 |
| Single Wire Diameter mm |
0.107-0.125 |
0.110-0.113 |
0.110-0.113 |
| Conductor |
0.10±0.003 |
0.098-0.10 |
0.098-0.10 |
| O.D. mm |
≤8.23 |
7.38-7.95 |
7.40-7.92 |
| Resistance Ω/m |
≤0.000794 |
0.000734 |
0.000733 |
| Dielectric Strength V |
≥6000 |
13700 |
13400 |
| Pitch (mm) |
78±10 |
78 |
78 |
| No. of Strands |
3000 |
120x5x5 |
120*5*5 |
| Tape Overlap % |
≥50 |
54 |
54 |
| Winding |
NO crack |
ok |
ok |
Applications
This taped Litz wire is ideal for applications requiring high frequency, high voltage, high current, and compact space utilization. Primary application areas include:
- On-Board Chargers (OBC) and DC/DC converters
- Electric vehicle drive motors
- 800V high-voltage fast-charging systems and charging piles
- High-frequency transformers
- High-power switch-mode power supplies (SMPS)
Frequently Asked Questions
Can I get samples for testing before placing a batch order?
Yes. Samples are either free or charged, but the shipping cost is borne by the customer.
What is your delivery lead time?
Sample orders: 3-5 working days; bulk orders: completed within 15 working days after order confirmation.
What is the procurement process?
Submit inquiry with requirements → Sample making → Sample approval → Quotation → Proforma Invoice (PI) → PI confirmation → Payment arrangement → Production → Shipment
Can I customize products with my own logo, size, and shape?
Yes, but the MOQ (Minimum Order Quantity) is subject to negotiation.
What are your payment methods?
T/T, D/P, L/C, PayPal.
Which courier services do you use?
FedEx, DHL, TNT, UPS, with discounts up to 80%.
What testing equipment do you have?
Laser diameter gauge, high-voltage spark tester, elongation tester, spring-back tester, withstand voltage tester, solderability tester, Resistance Tester etc.
Which customers or markets are your products suitable for?
Our products are ideal for applications requiring high efficiency and space-saving solutions in high-frequency AC environments, including power electronics & power supplies, EV on-board chargers, wireless charging systems, green energy, communications & IT, medical equipment, industrial robots, servo motors, etc.
Which countries or regions have you exported to?
Major markets include Europe and the US, as well as South Korea, Japan, India, and Southeast Asia.
How do you keep customer information confidential?
We can sign a non-disclosure agreement (NDA) upon request and commit to strictly abiding by its terms throughout the entire cooperation process.
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
