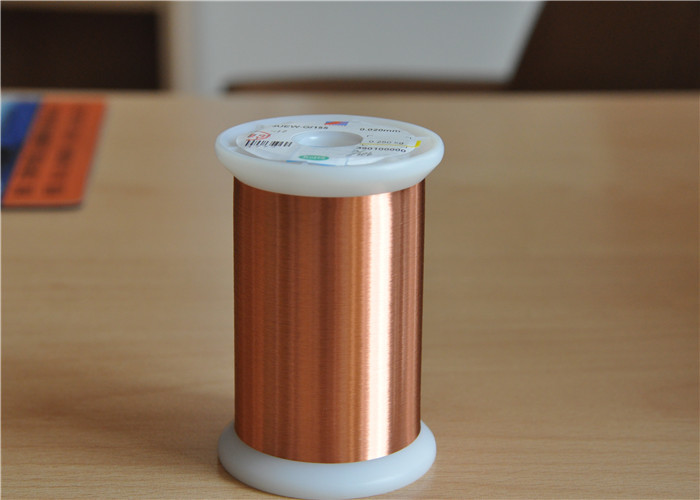

0.028mm-0.2mm High Purity Copper Wire 5n 6n Occ Single Crystal Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	OCC

Minimum Order Quantity:	2 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10/week

Get Best Price Contact Now

Detail Information

Product Name:	0.028mm-0.2mm High Purity Copper Wire 5n 6n Occ Single Crystal Copper Wire	Thermal Rating:	155
Insulation Material:	Enamel	Diameter:	0.028mm
Conductor Material:	Copper	Key Word:	0.028mm-0.2mm High Purity Copper Wire 5n 6n Occ Single Crystal Copper Wire
Highlight:	high purity OCC copper wire , single crystal copper wire 5n , ultra thin 0.028mm copper wire

Product Description

0.028mm-0.2mm High Purity Copper Wire 5n 6n Occ Single Crystal Copper Wire

The combination of 99.9999% high-purity OCC copper, a 0.028mm wire diameter, and self-adhesive properties provides a solution of "ultimate signal fidelity + ultimate miniaturization + ultimate reliability." It primarily serves professional and high-end consumer electronics fields that prioritize optimal performance regardless of cost.

Mechanical Properties Comparison

Sample	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Vickers Hardness (HV)	Reduction of Area (%)
Single Crystal Copper	128.31	83.23	48.32	65	55.56
OFC Copper	151.89	121.37	26	79	41.22

Production Process

Multi-Scenario Applications

High-end home theater systems
High-end HiFi audio systems
KTV wiring installations
Car audio systems
Multimedia audio-visual rooms
Cinema and theater installations
Banquet halls and lecture halls
Multimedia classrooms
Gym, hotel, and restaurant audio systems
Office meeting rooms
Concert and multi-channel applications
