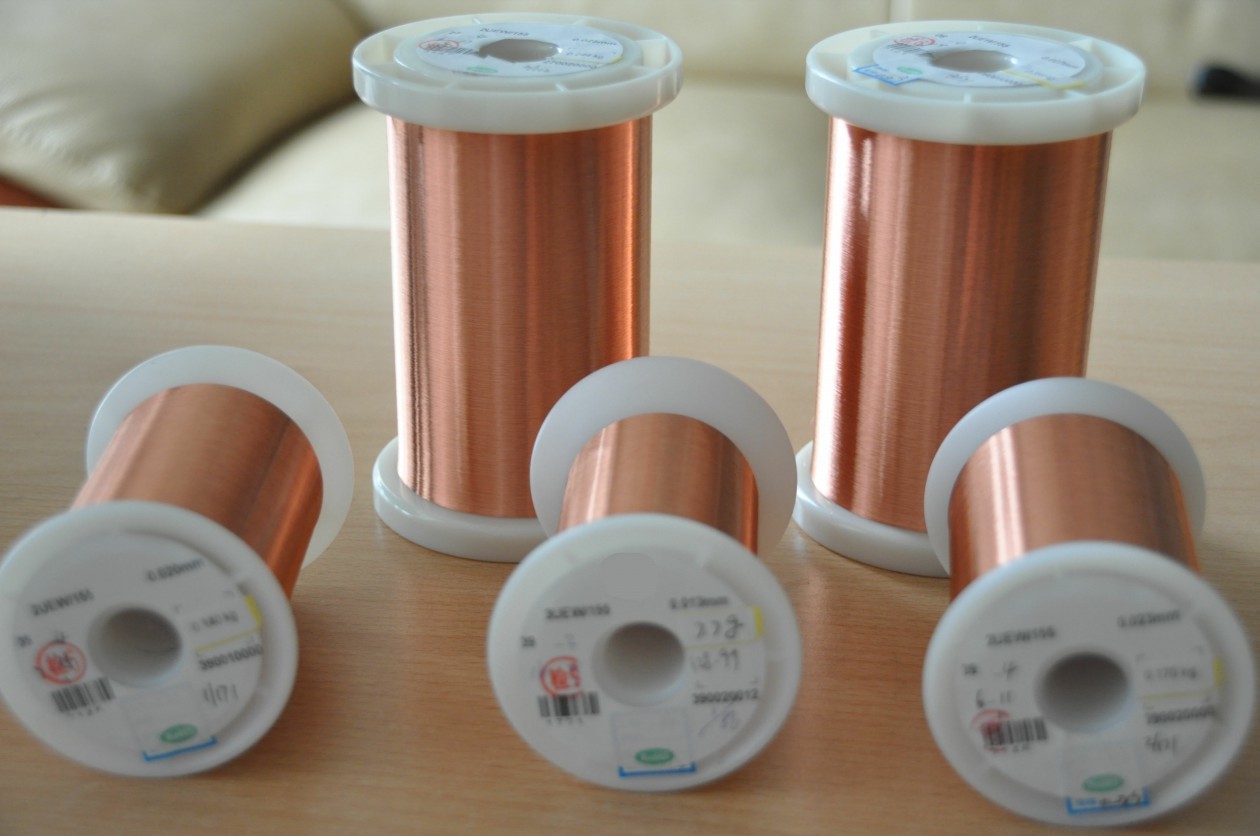

Self bonding 6N 99.9999% 0.028mm OCC Enameled Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	OCC

Minimum Order Quantity:	2 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10/week

Get Best Price Contact Now

Detail Information

Product Name:	Self Bonding 6N 99.9999% 0.028mm OCC Enameled Copper Wire	Thermal Rating:	155
Insulation Material:	Enamel	Diameter:	0.028mm
Conductor Material:	Copper	Key Word:	Self Bonding 6N 99.9999% 0.028mm OCC Enameled Copper Wire
Highlight:	Self bonding OCC enameled copper wire , 6N 99.9999% purity copper wire , 0.028mm ultra thin OCC wire

Product Description

Self bonding 6N 99.9999% 0.028mm OCC Enameled Copper Wire

Key Features

Extremely high toughness and machinability: The crystal structure of OCC copper gives it excellent toughness
Data shows that ordinary copper breaks after 16 twists, while single-crystal copper can be twisted 116 times
0.028mm fine wire is less prone to breakage during winding and braiding, resulting in a high yield rate
Ideal for manufacturing internal windings of miniature coils, miniature inductors, miniature motors, and microswitches

Mechanical Properties Comparison

Sample	Tensile strength (Mpa)	Yield strength (Mpa)	Elongation (%)	Vickers hardness (HV)	Reduction of area (%)
Single crystal Copper	128.31	83.23	48.32	65	55.56
OFC Copper	151.89	121.37	26	79	41.22

Production Process

Applications

High-end home theater systems
High-end hifi systems
KTV wiring
Car audio systems
Multimedia audio-visual rooms
Cinemas and banquet halls
Lecture halls and multimedia classrooms
Gym, hotel, and restaurant audio systems
Office meeting rooms
Concerts and multi-channel applications
