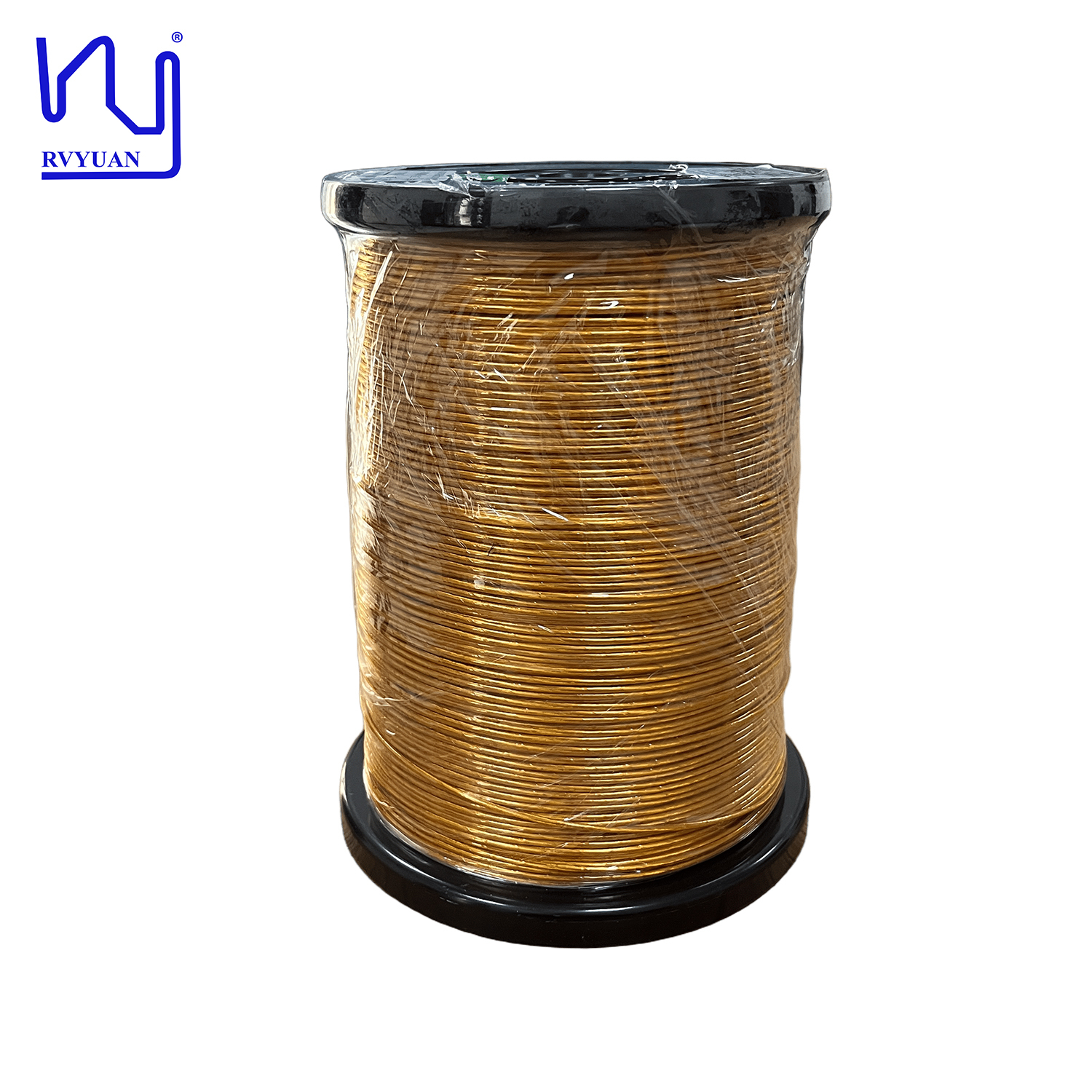

Taped Litz Wire 5000V Polyimide Film Wrapped Mylar Film Covered Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Taped Litz Wire 5000V Polyimide Film Wrapped Mylar Film Covered Copper Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	155
Key Word:	Taped Litz Wire 5000V Polyimide Film Wrapped Mylar Film Covered Copper Wire	No. Of Strands:	600
Highlight:	5000V polyimide litz wire , mylar film wrapped copper wire , taped litz wire with polyimide

Product Description

Taped Litz Wire 5000V Polyimide Film Wrapped Mylar Film Covered Copper Wire

This high-performance litz wire features a specialized Kapton tape wrapping that provides exceptional mechanical protection while significantly enhancing voltage withstand capability. Engineered to withstand voltages exceeding 6000V, this wire is ideal for applications demanding the highest levels of electrical safety and reliability.

Technical Specifications

Item No.	Single wire diameter (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch	No. of strands	Overlap %
Tech requirement	0.033-0.044	0.03±0.002	Max. 1.34	≤0.04712	≥6000	29±5	600	≥50
Sample 1	0.036-0.038	0.028-0.029	1.09-1.18	0.04236	12300	27	40x3x5	53

Key Features

High-quality Kapton tape wrapping for superior mechanical protection
Exceptional voltage withstand capability exceeding 6000V
Polyimide film wrapped with Mylar film covering
Precision-engineered for demanding electrical applications
Enhanced electrical safety and reliability performance
