USTC-F/H 0.071mm X 375 Silk covered litz Wire Manufacturer

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	UL/ROHS/ICE/ISO9001/ISO14001
Model Number:	0.071mm

Minimum Order Quantity:	10 Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	10-15 workding days
Payment Terms:	L/C, T/T
Supply Ability:	200 Ton/Tons per Month

Get Best Price Contact Now

Detail Information

Type:	Insulated	Breakdown Voltage:	1700V
Thermal Class:	155	Strands:	375
Coating Layer Material:	Polyester/Nylon	Twist Pitch:	3-70mm
Highlight:	silk covered litz wire 0.071mm , copper litz wire manufacturer , 375 silk litz wire

Product Description

USTC-F/H 0.071mm X 375 Silk Covered Litz Wire

Product Overview

Ultrafine silk covered Litz wire represents a significant advancement in lead technology, demonstrating unparalleled versatility and reliability in a wide range of high-tech applications. Its unique properties make it an essential component of future medical devices, precision instruments, and microelectronic products.

Technical Specifications

Characteristics	Technical Requirements	Test Results	Conclusion
Inner Diameter	0.071±0.003 mm	0.070mm	OK
Thickness of Coating	≥ 0.007mm	0.0055	OK
Outer Diameter	≤ 0.084mm	0.081	OK
Twist Direction	S/Z	Z	OK
Strands	357	357	OK
Twist Pitch	20.5±3 mm	20.6	OK
Breakdown Voltage	425V	1700V	OK
Conductor Resistance	≤ 13.69Ω/km	12.57	OK
Solderability	YES	YES	OK
Pinhole	≤714PCS/5m	21pcs	OK
Overlapping Rate	33%/55%/60%	66%	OK

Remark: The product meets the requirement of RoHS

Conclusion: Approved

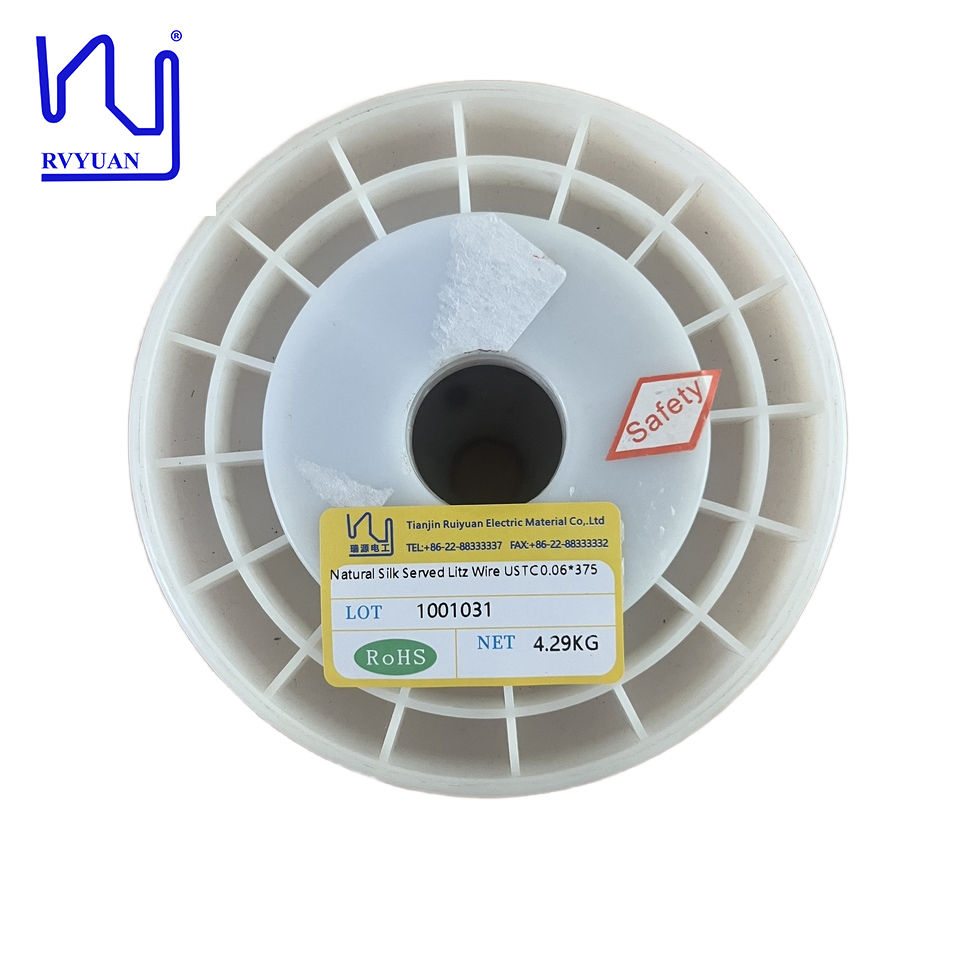

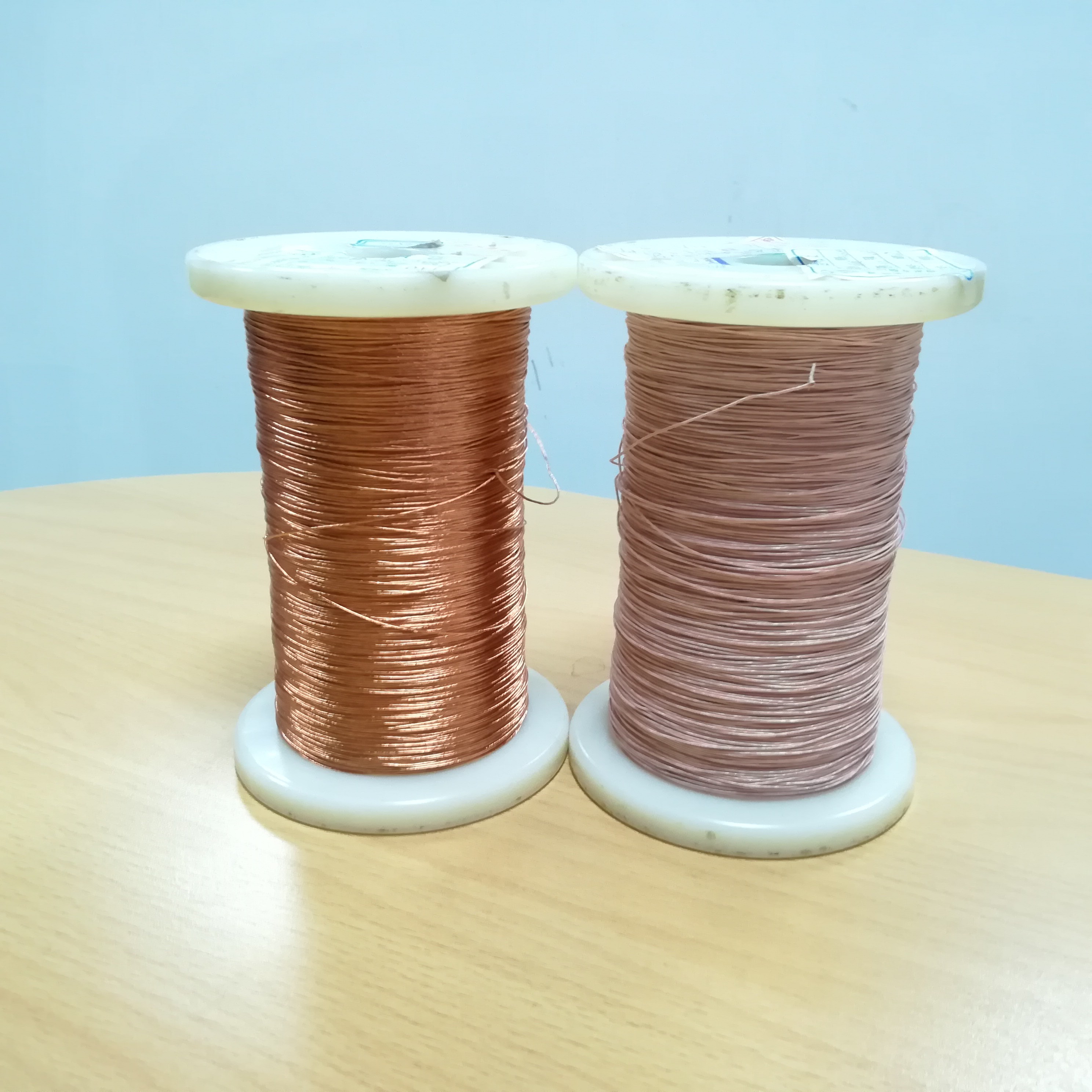

Product Images
