Detail Information

Product Name:	0.05mm 0.1mm 0.2mm Silver Plated Copper Wire For High End Audio Cable	Thermal Rating:	155
Insulation Material:	Enamel	Diameter:	0.05mm
Conductor Material:	Silver	Key Word:	0.05mm 0.1mm 0.2mm Silver Plated Copper Wire For High End Audio Cable
Highlight:	silver plated copper wire for audio , 0.05mm OCC wire for cables , high end audio cable wire

Product Description

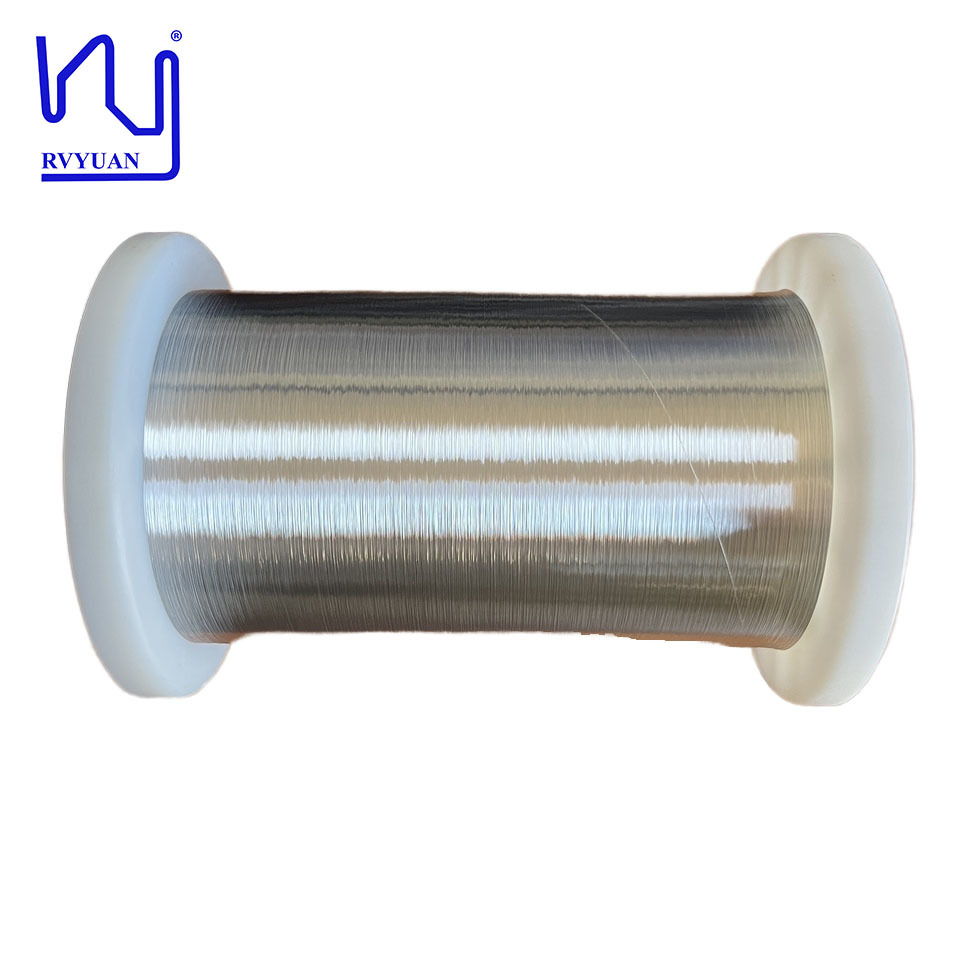

0.05mm 0.1mm 0.2mm Silver Plated Copper Wire for High End Audio Cable

Premium silver-plated copper wire specifically engineered for high-end audio cable applications, available in 0.05mm, 0.1mm, and 0.2mm diameters.

Pure Silver vs. Silver-Plated Copper Wire Comparison

Electrical Conductivity

Pure Silver Wire: Extremely high conductivity, one of the best conductive materials among all metals, providing optimal signal transmission
Silver-Plated Copper Wire: Better conductivity than pure copper wire, though dependent on silver plating thickness and quality

Cost Considerations

Pure Silver Wire: Higher material cost, suitable for high-end audio systems with sufficient budget
Silver-Plated Copper Wire: Cost-effective option balancing sound quality and budget requirements

Sound Quality Performance

Pure Silver Wire: Provides clearer, more delicate sound quality, particularly in high-frequency range
Silver-Plated Copper Wire: Excellent sound quality, though may be less refined than pure silver in high-end systems

Durability & Maintenance

Pure Silver Wire: Prone to oxidation, may require regular maintenance for optimal performance
Silver-Plated Copper Wire: Silver plating provides oxidation protection, more durable for long-term use

Application Scenarios

Pure Silver Wire: Ideal for high-end audio systems and professional equipment demanding ultimate sound quality
Silver-Plated Copper Wire: Suitable for general audio applications and budget-conscious users seeking quality performance

Standard Specifications for Monocrystalline Silver

Diameter (mm)	Tensile Strength (MPa)	Elongation (%)	Conductivity (IACS%)	Purity (%)
	Hard State	Soft State	Hard State	Soft State	Hard State	Soft State
3.0	≥320	≥180	≥0.5	≥25	≥104	≥105	≥99.995
2.05	≥330	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
1.29	≥350	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
0.102	≥360	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995

The choice between pure silver wire and silver-plated copper wire depends on the user's budget, sound quality requirements, and specific application scenario.

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	SPC

Minimum Order Quantity:	2 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
