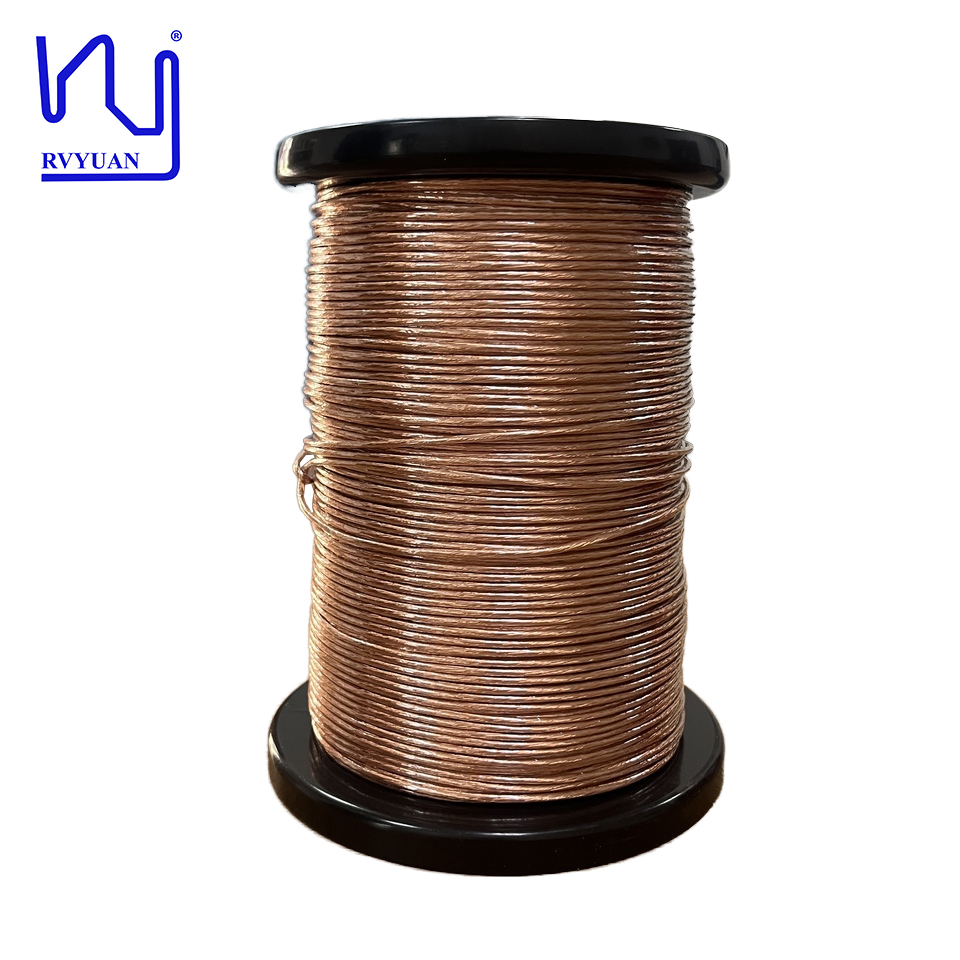

4KV Mylar Litz Wire 0.2mmx80 Copper PET Taped Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	4KV Mylar Litz Wire 0.2mmx80 Copper PET Taped Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	155
Key Word:	4KV Mylar Litz Wire 0.2mmx80 Copper PET Taped Litz Wire	No. Of Strands:	80
Highlight:	4KV Mylar Litz Wire , 0.2mmx80 Copper Litz Wire , PET Taped Litz Wire

Product Description

4KV Mylar Litz Wire 0.2mmx80 Copper PET Taped Litz Wire

The use of PET film in Litz wire is crucial for several reasons. First, it provides excellent insulation, preventing short circuits and improving safety. Second, PET film is resistant to moisture, chemical corrosion, and UV radiation, ensuring the wire maintains a long service life and reliability under various conditions.

Technical Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω/m	Breakdown voltage V	Overlap%
Tech requirement	0.213-0.227	0.2±0.003	Max.2.84	≤0.007215	4000	Min. 50
Sample 1	0.220-0.223	0.198-0.2	2.46-2.73	0.006814	11700	53

Product Image
