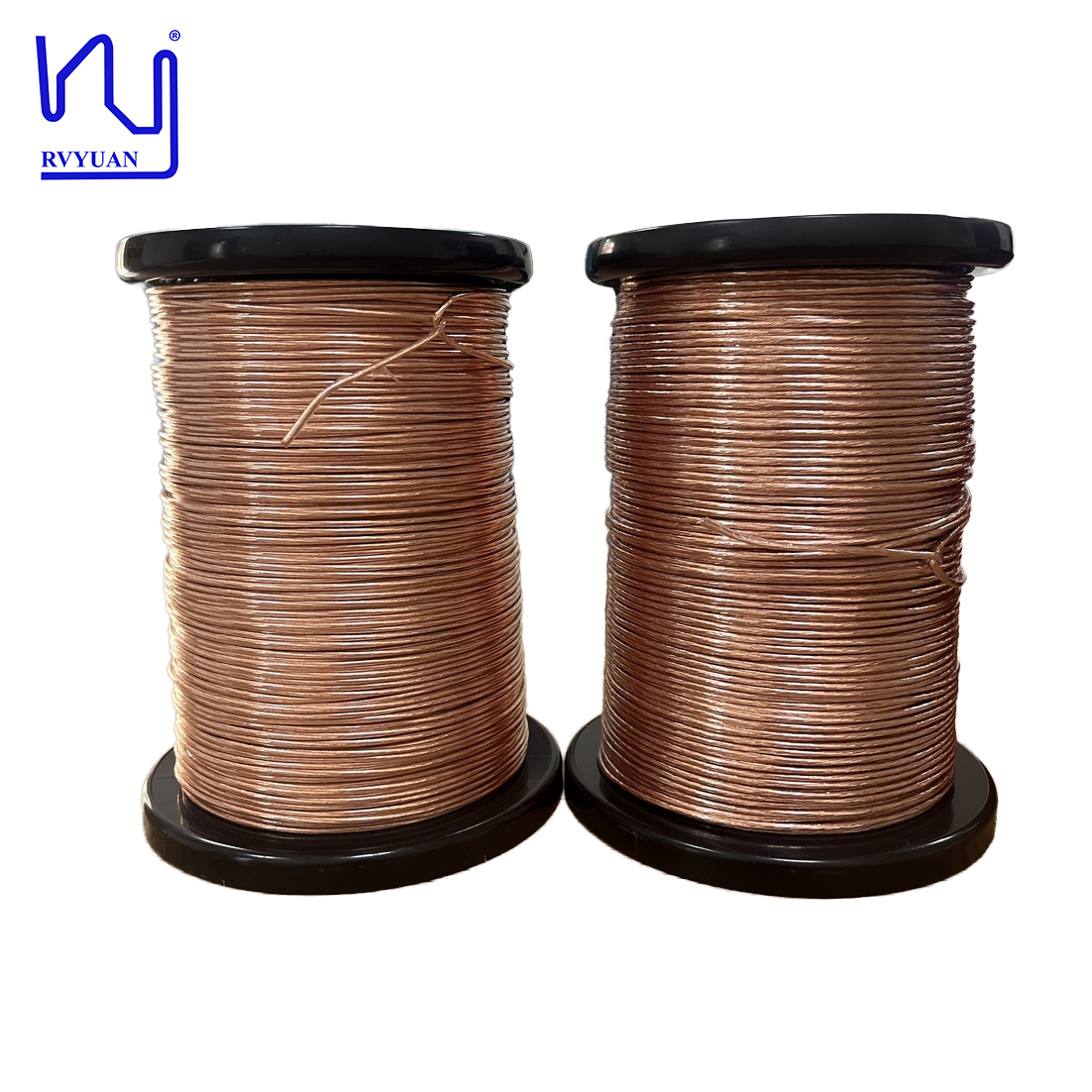

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	155
Key Word:	4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire	No. Of Strands:	80
Highlight:	4KV PET Film Litz Wire , 0.2mm Copper Conductor Wire , Taped Litz Wire with PET

Product Description

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

Product Description

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire

What is PET film?

Polyester film, commonly known as PET film, is a plastic film made of polyethylene terephthalate. This versatile material is available in a variety of thicknesses, widths, and transparencyes, making it suitable for a wide range of applications. PET film possesses excellent physical, mechanical, optical, thermal, electrical, and chemical properties, making it popular in industries such as packaging, electronics, and insulation.

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Overlap%
Tech requirement	0.213-0.227	0.2±0.003	Max.2.84	≤0.007215	4000	Min. 50
Sample 1	0.220-0.223	0.198-0.2	2.46-2.73	0.006814	11700	53

Product Images
