PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	155
Key Word:	PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire	No. Of Strands:	80
Highlight:	PET taped Litz wire 0.2mmx80 , copper stranded wire with PET tape , 0.2mmx80 Litz wire for electronics

Product Description

PET Taped Litz Wire 0.2mmx80 Copper Stranded Wire

Mylar Litz wire is a custom conductor designed for high-performance applications, particularly in transformers and inductors. This conductor is meticulously stranded from 80 strands of 0.2mm enameled copper wire, forming a Litz structure. An outer PET protective film enhances the conductor's durability and performance in various environments.

Technical Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Overlap%
Tech requirement	0.213-0.227	0.2±0.003	Max.2.84	≤0.007215	4000	Min. 50
Sample 1	0.220-0.223	0.198-0.2	2.46-2.73	0.006814	11700	53

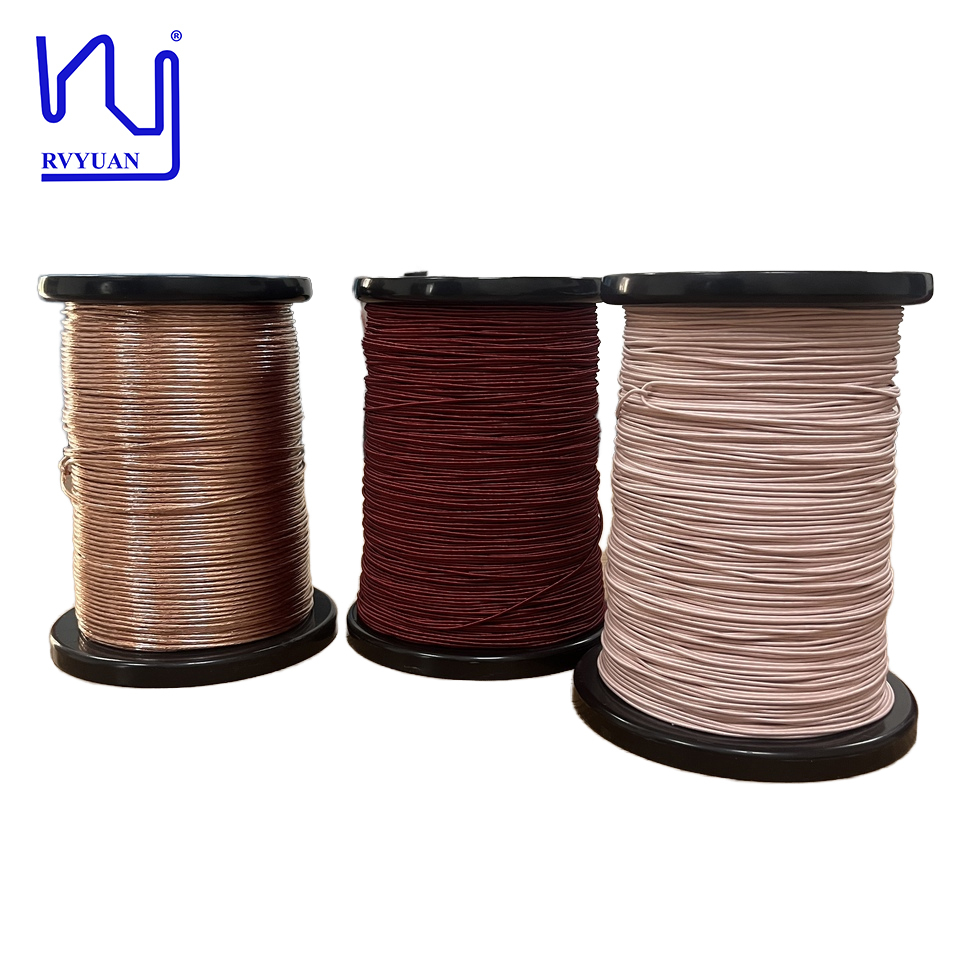

Product Image
