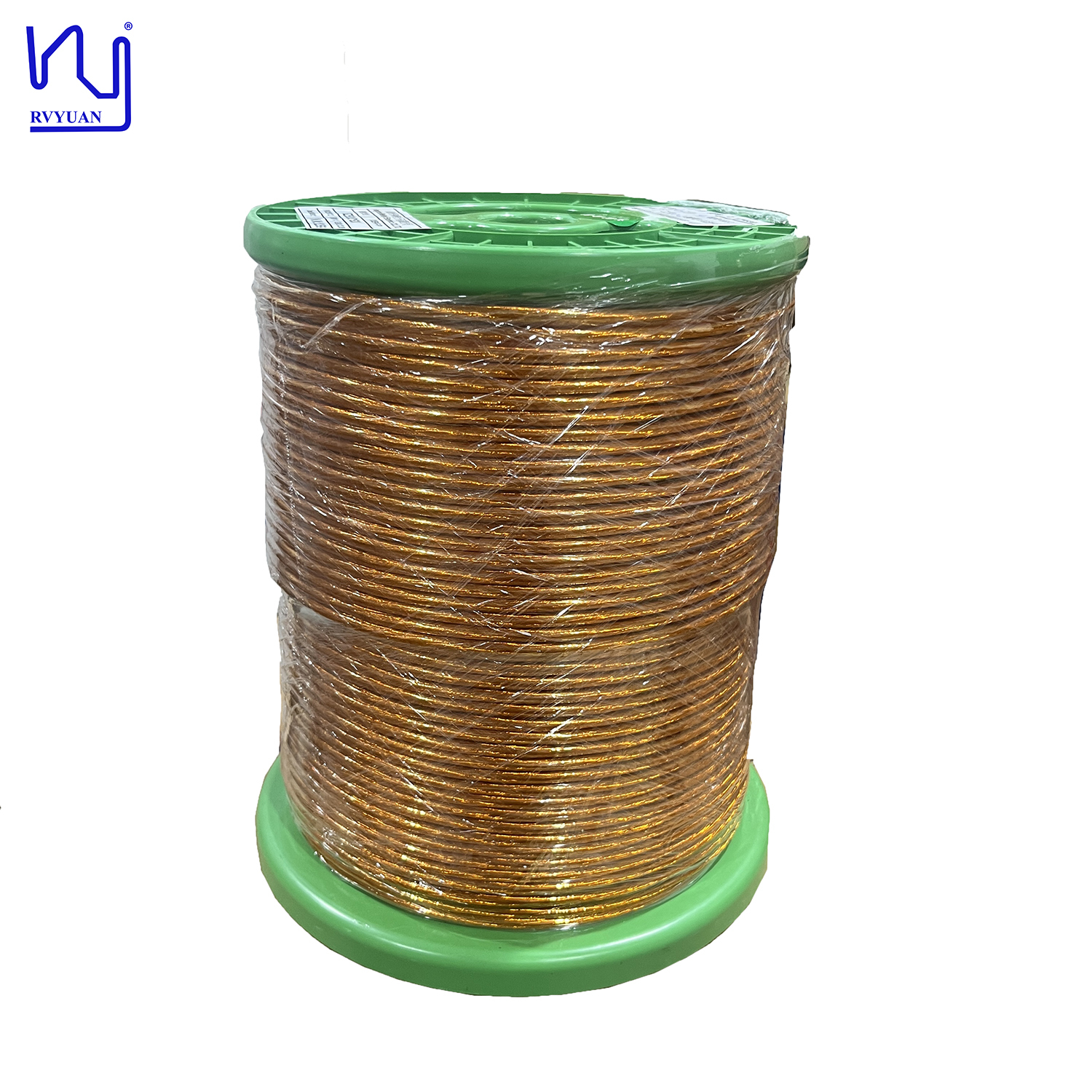

Taped Litz Wire 0.4mmx120 Round Type

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Polyesterimide Taped Litz Wire 0.4mmx120 Copper Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	180
Key Word:	Polyesterimide Taped Litz Wire 0.4mmx120 Copper Litz Wire For Transformer	No. Of Strands:	120
Highlight:	0.4mm taped Litz wire , round type Litz wire , 120 strand copper Litz wire

Product Description

Taped Litz Wire 0.4mmx120 Round Type

Taped litz wire offers several advantages, particularly in applications involving high-frequency signals and electromagnetic fields.

Reduced Skin Effect: Minimizes skin effect, improving efficiency at high frequencies.
Lower Proximity Effect: Ensures more uniform current distribution across the wire.
Improved Flexibility: Easier to handle and install in tight spaces or complex assemblies.
Enhanced Thermal Performance: Operates at higher temperatures without degrading performance.
Reduced Electromagnetic Interference (EMI): Suitable for sensitive electronic applications.
Better High-Frequency Performance: Ideal for RF transmission, transformers, and inductors.
Durability and Protection: Tape provides mechanical protection against wear and tear.
Customizability: Available in various configurations to meet specific requirements.

Outgoing Test Specifications

Item	Standard	Test Result
Outer conductor diameter (mm)	0.068-0.081	0.068-0.071
Conductor diameter (mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch (mm)	29±5	17
Max resistance (Ω/m at 20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap %	Min.50	53

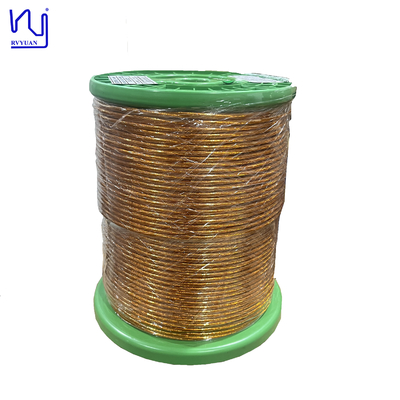

Product Images
