Polyesterimide Taped Litz Wire 0.4mmx120 Copper Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Polyesterimide Taped Litz Wire 0.4mmx120 Copper Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	180
Key Word:	Polyesterimide Taped Litz Wire 0.4mmx120 Copper Litz Wire For Transformer	No. Of Strands:	120
Highlight:	Polyesterimide taped Litz wire 0.4mm , Copper Litz wire for transformer , 120 strand Litz wire with warranty

Product Description

Polyesterimide Taped Litz Wire 0.4mmx120 Copper Litz Wire For Transformer

Taped Litz wire offers enhanced high-voltage resistance, improved mechanical strength, and better stability compared to standard Litz wire, making it suitable for demanding applications. The added insulation tape provides a higher breakdown voltage, greater durability against flexing and mechanical stress, and a secure, stable structure for winding. This reinforcement is crucial for ensuring electrical safety and efficiency in high-frequency, high-voltage systems.

Outgoing Test Specifications

Item	Standard	Test Result
Outer conductor diameter (mm)	0.068-0.081	0.068-0.071
Conductor diameter (mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch (mm)	29±5	17
Max resistance (Ω/m at 20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap %	Min.50	53

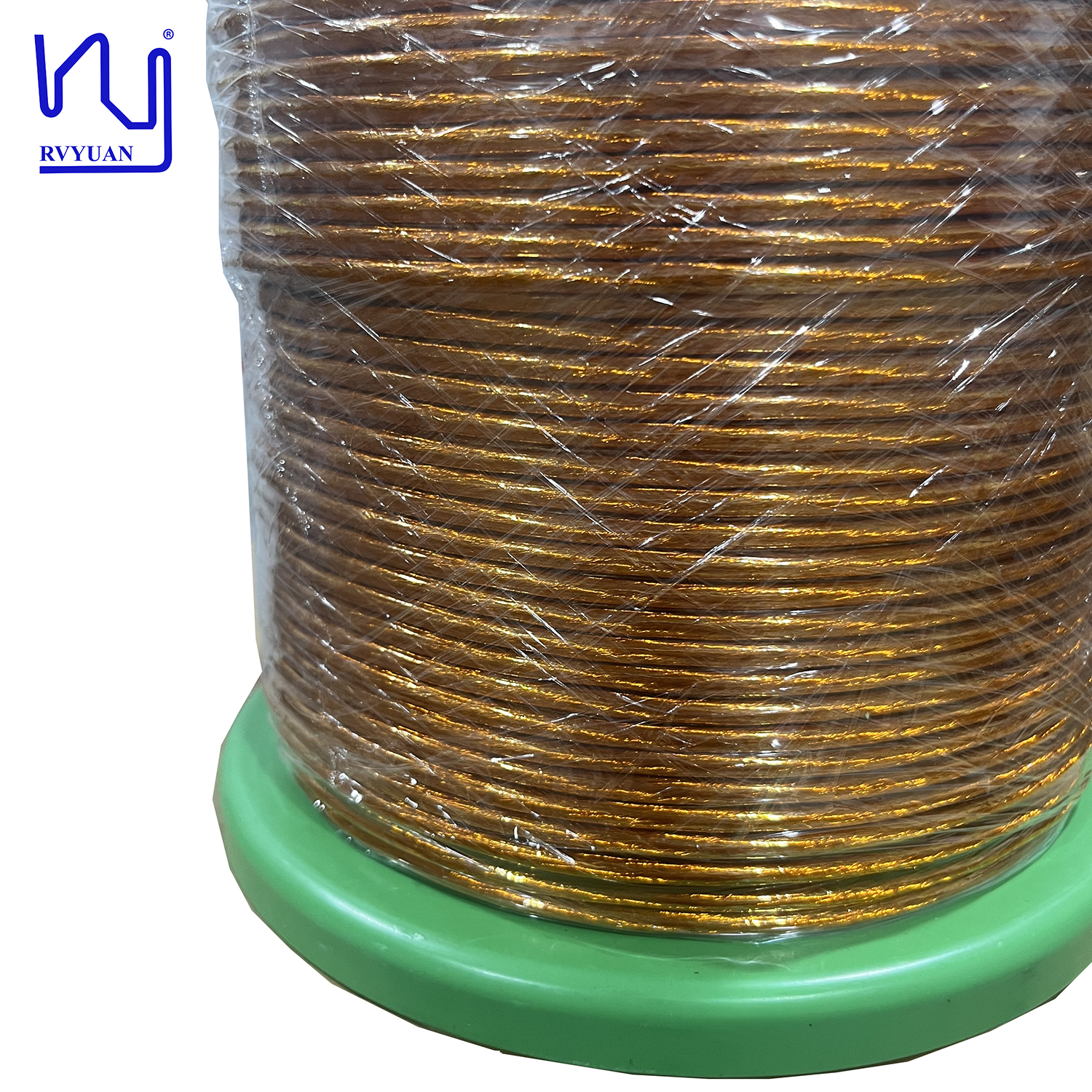

Product Images
