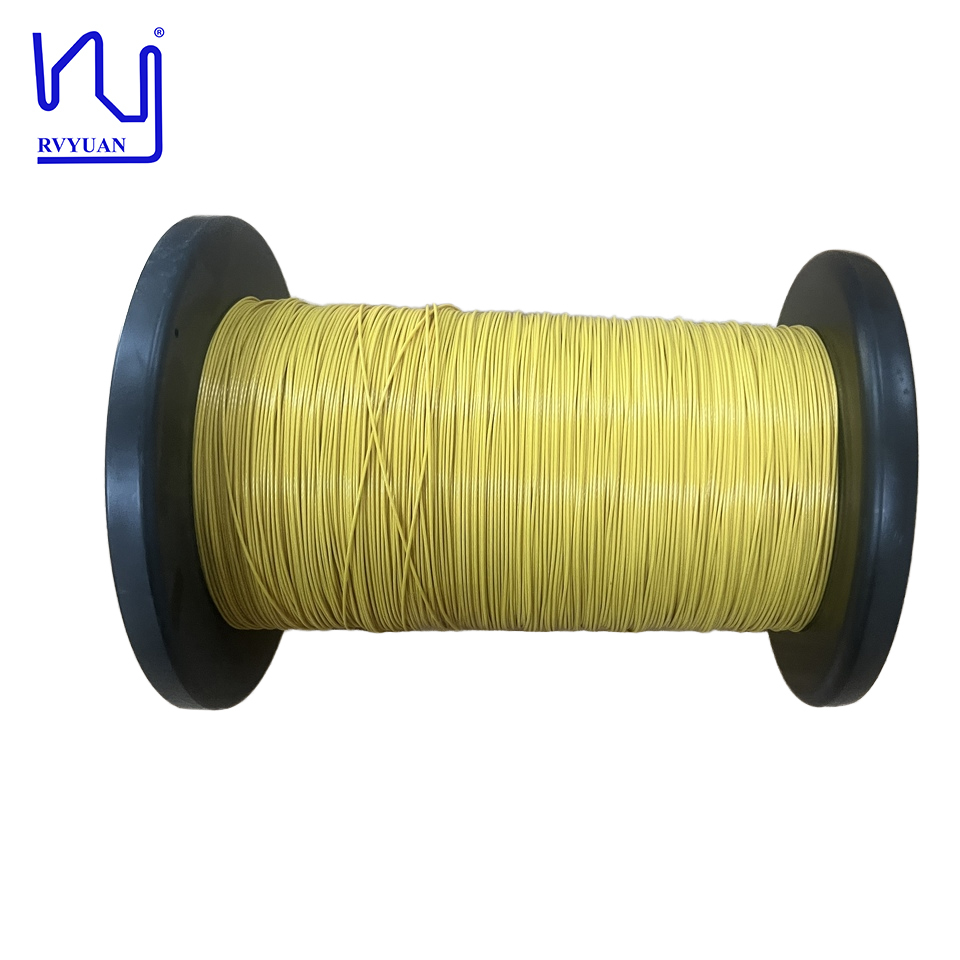

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.27mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire	Thermal Rating:	155
Single Wire Diameter:	0.27mm	Conductor Material:	Copper
NO. Of Strands:	7	Insualtion:	ETFE
Highlight:	ETFE insulated copper litz wire , TIW insulated litz wire , 0.27mm copper litz wire

Product Description

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Construction

Individual copper strands are insulated, often with a lacquer coating.
These strands are then twisted or bundled together to form the Litz structure.
An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.

Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
