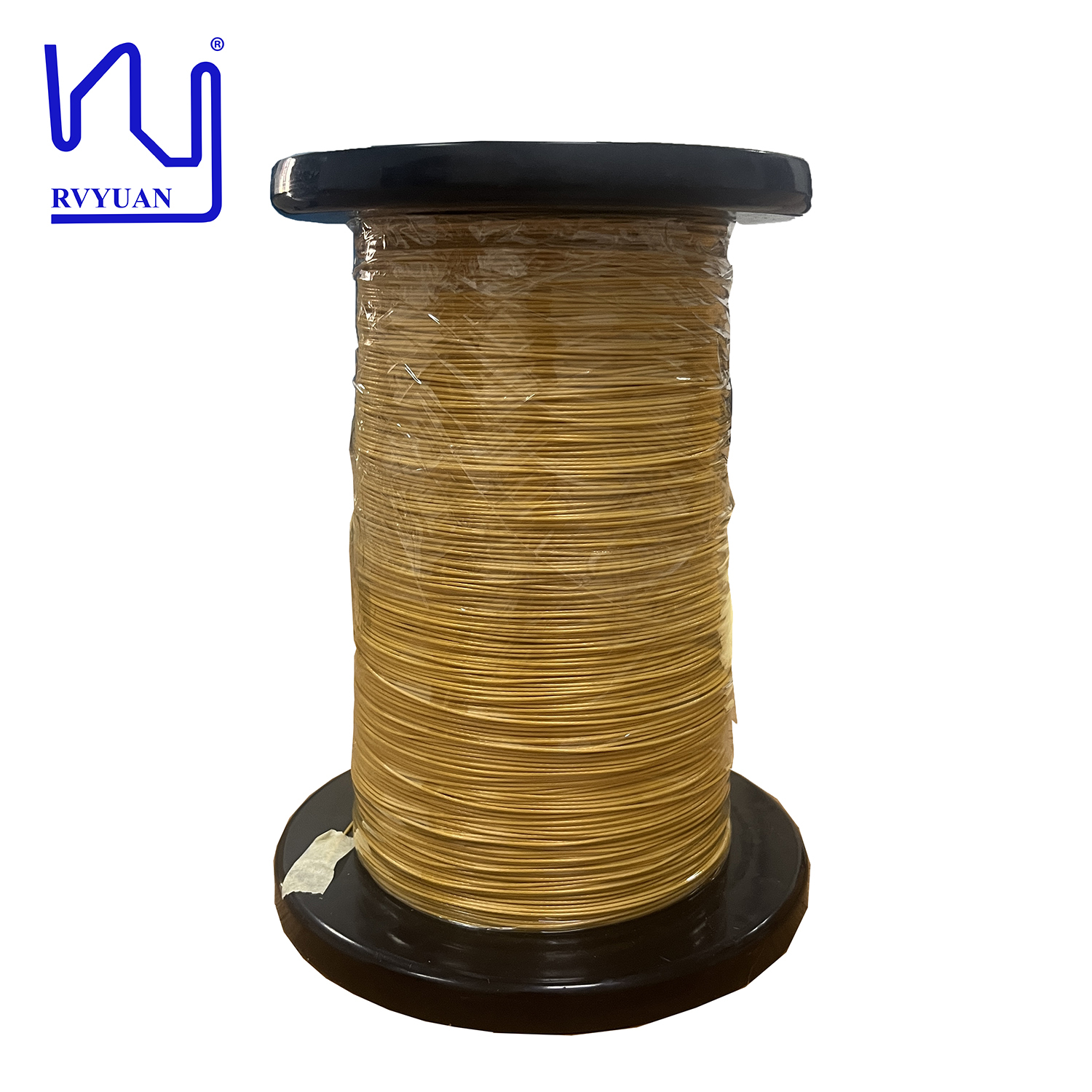

Custom ETFE Extruded Litz Wire 0.24mmx7 Strands TIW For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.24mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	Custom ETFE Extruded Litz Wire 0.24mmx7 Strands TIW For Transformer	Thermal Rating:	155
Single Wire Diameter:	0.24mm	Conductor Material:	Copper
NO. Of Strands:	7	Insualtion:	ETFE
Highlight:	custom ETFE litz wire , 0.24mmx7 strands litz wire , transformer litz wire

Product Description

Custom ETFE Extruded Litz Wire 0.24mmx7 Strands TIW For Transformer

The wire's outer layer is made of ETFE (ethylene tetrafluoroethylene) material through an advanced extrusion process, achieving a maximum outer diameter of 1.05 mm. One of the outstanding features of this extruded ETFE litz wire is its excellent voltage resistance, withstanding a breakdown voltage of up to 15,200V. This characteristic makes it particularly suitable for high-frequency transformers and other critical electrical equipment, ensuring reliable performance and safety in high-voltage applications.

Technical Specifications

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
