Place of Origin: | China |
---|---|
Brand Name: | RVYUAN |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | Copper litz wire |
Minimum Order Quantity: | 10kg |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Product Name: | 2UEW-F 0.1mm Litz Wire 35 Stranded Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
---|---|---|---|
Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
Conductor: | Copper | Insulation: | Enamel |
Rated Temperature: | 155/180 | Key Word: | 2UEW-F 0.1mm Litz Wire 35 Stranded Copper Litz Wire |
No. Of Strands: | 35 | ||
Highlight: | 0.1mm Copper Litz Wire,35 Stranded Copper Litz Wire,2UEW-F Copper Litz Wire |

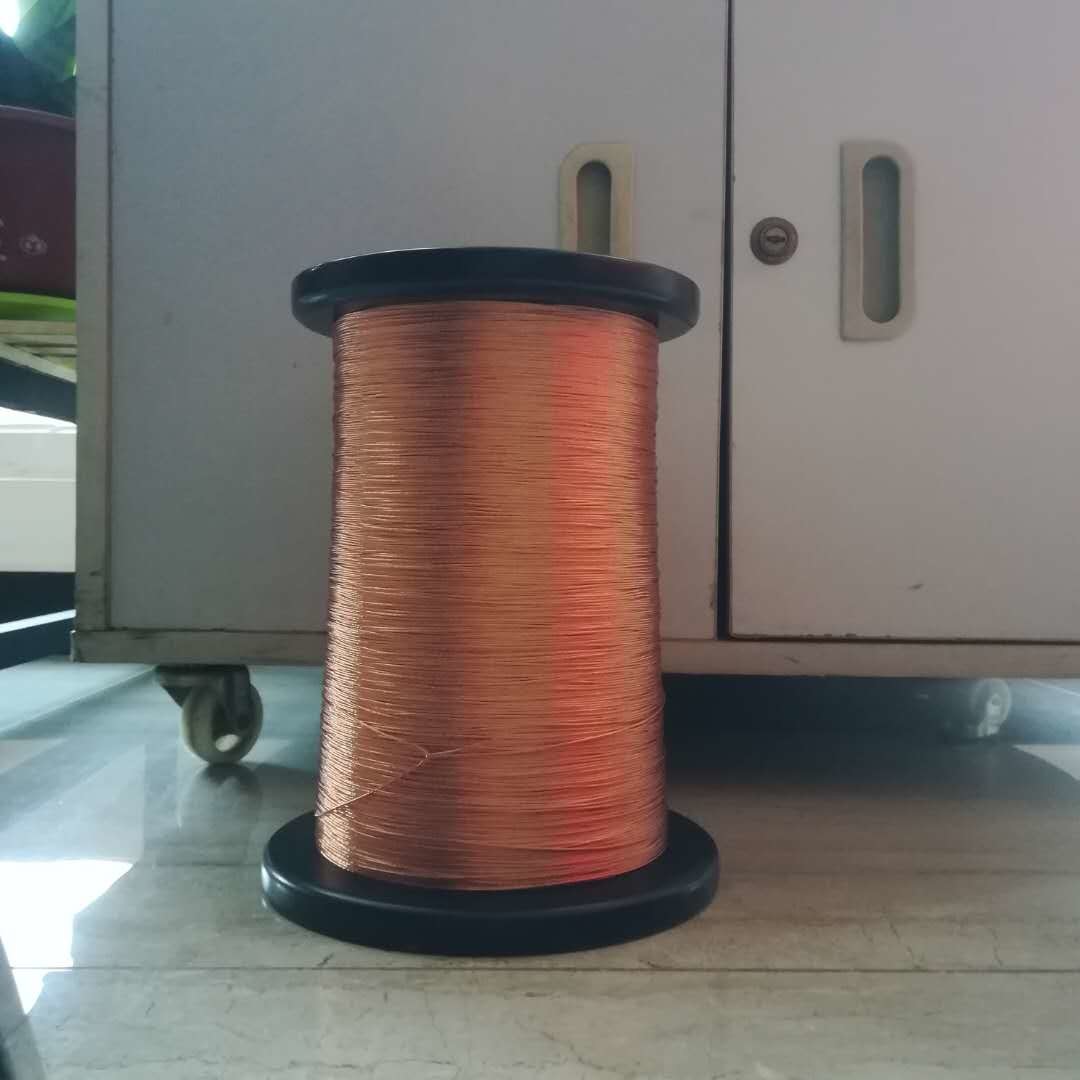

2UEW-F 0.1mm Litz Wire 35 Stranded Copper Litz Wire
Litz wire is the perfect solution for those seeking high-quality stranded wire for transformer windings and other electronic applications. With a wide range of sizes, high-temperature options, and strand counts, we are committed to providing products that meet your specific needs. Trust our expertise and experience to provide Litz wire solutions that not only meet your expectations, but also exceed them. Whether you are in the electronics industry, renewable energy, or any other field that requires high-performance wire, our Litz wire can help you achieve your goals efficiently.
Outgoing test of stranded wire | Spec: 0.1x35 | Model: 2UEW-F | ||
Item | Standard | Test result | ||
Outer conductor diameter(mm) | 0.110-0.125 | 0.119 | 0.120 | 0.122 |
Conductor diameter(mm) | 0.100±0.002 | 0.10 | 0.10 | 0.10 |
Pitch(mm) | 33±7 | √ | ||
Breakdown voltage Mini (V) | Min.1100 | 2400v | 2300v | 2500v |
