Place of Origin: | China |
---|---|
Brand Name: | RVYUAN |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | Copper litz wire |
Minimum Order Quantity: | 10kg |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Product Name: | Class F/H 0.03mm-0.5mm Twisted Litz Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
---|---|---|---|
Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
Conductor: | Copper | Insulation: | Enamel |
Rated Temperature: | 155/180 | Key Word: | Class F/H 0.03mm-0.5mm Twisted Litz Wire For Transformer |
No. Of Strands: | 35 | ||
Highlight: | 0.03mm Twisted Litz Wire,0.5mm Twisted Litz Wire,Class F/H Twisted Litz Wire |

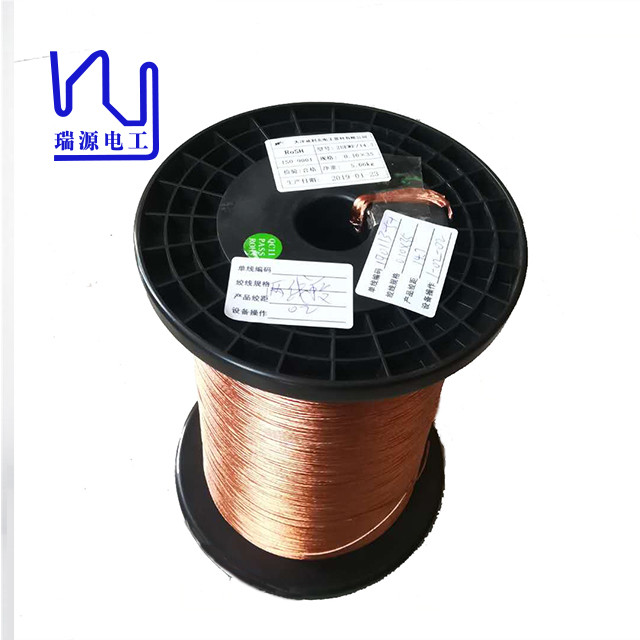

Class F/H 0.03mm-0.5mm Twisted Litz Wire for Transformer
In addition to transformer windings, our Litz wire is used in a wide range of electronic and industrial applications. It is widely used in high-frequency transformers, inductors, and motors, where minimizing losses is critical to improving the overall efficiency of the system. Litz wire is also used in audio equipment, radio frequency applications, and renewable energy systems such as wind and solar converters. Our Litz wire has a wide range of uses and is an indispensable component for engineers and manufacturers to improve product performance.
Outgoing test of stranded wire | Spec: 0.1x35 | Model: 2UEW-F | ||
Item | Standard | Test result | ||
Outer conductor diameter(mm) | 0.110-0.125 | 0.119 | 0.120 | 0.122 |
Conductor diameter(mm) | 0.100±0.002 | 0.10 | 0.10 | 0.10 |
Pitch(mm) | 33±7 | √ | ||
Breakdown voltage Mini (V) | Min.1100 | 2400v | 2300v | 2500v |
