35/38AWG Twisted Stranded Copper Litz Wire For Transformer

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Copper Litz Wire 35/38AWG Twisted Stranded Litz Wire For Transformer Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.1mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: Copper Litz Wire 35/38AWG Twisted Stranded Litz Wire For Transformer
No. Of Strands: 35
Highlight:

Transformer Copper Litz Wire

,

Twisted Stranded Copper Litz Wire

,

35/38AWG Copper Litz Wire


Product Description

Copper Litz Wire 35/38AWG Twisted Stranded Litz Wire for Transformer



One of the great benefits of our Litz wire is its flexibility in strand count. With strand counts ranging from 2 strands up to 12,500 strands, you can tailor the wire to the exact needs of your project. This flexibility ensures optimal performance during transformer winding, as strand count significantly affects the efficiency and effectiveness of the winding process. By choosing our Litz wire, you can ensure your transformer operates at peak performance, minimizing energy losses and maximizing output power.



Outgoing test of stranded wire Spec: 0.1x35 Model: 2UEW-F
Item Standard Test result
Outer conductor diameter(mm) 0.110-0.125 0.119 0.120 0.122
Conductor diameter(mm) 0.100±0.002 0.10 0.10 0.10
Pitch(mm) 33±7
Breakdown voltage Mini (V) Min.1100 2400v 2300v 2500v

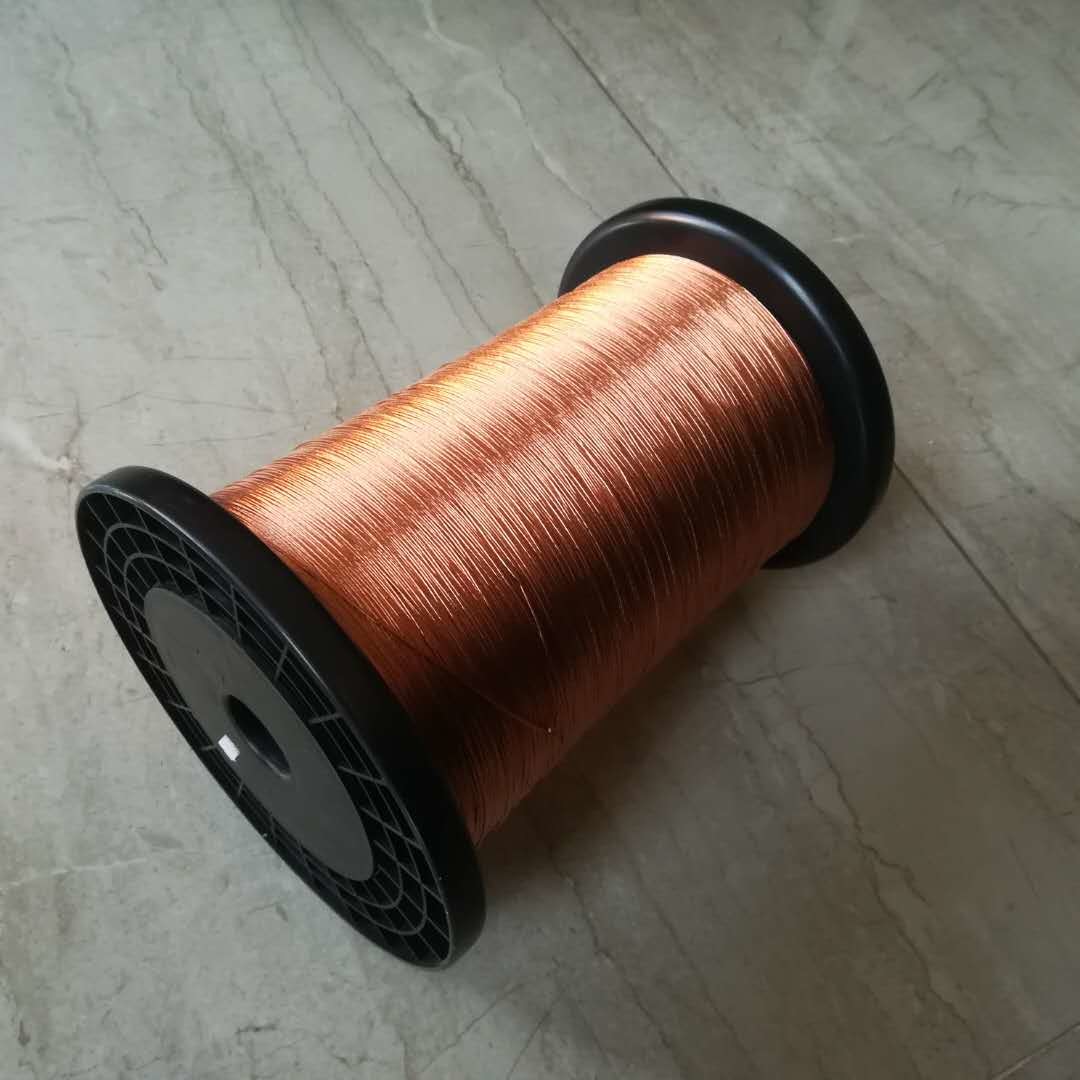

35/38AWG Twisted Stranded Copper Litz Wire For Transformer 0



35/38AWG Twisted Stranded Copper Litz Wire For Transformer 1
