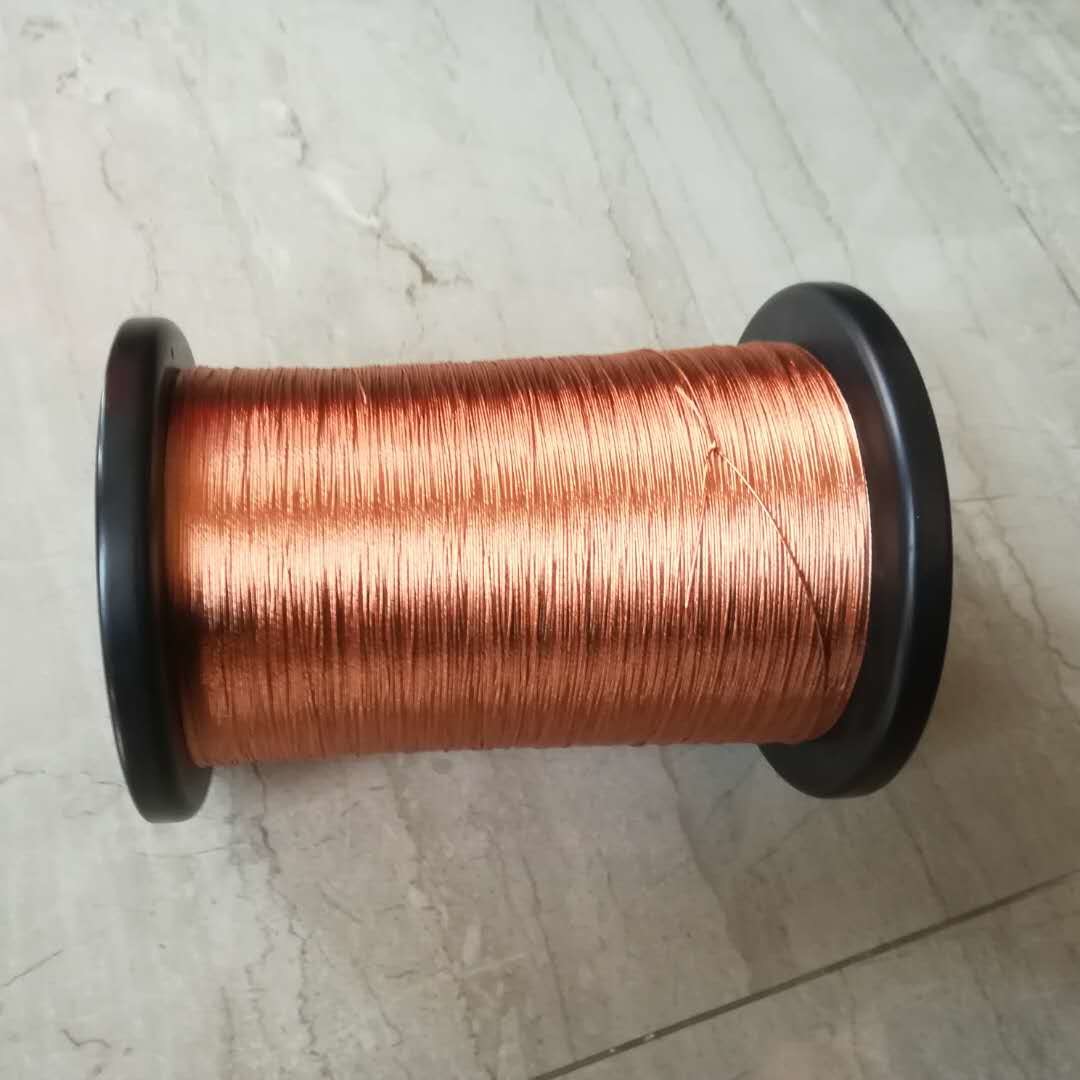

2UEW-F Class 155 0.1mmx 35 Twisted Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Product Name:	2UEW-F Class 155 0.1mmx 35 Twisted Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	2UEW-F Class 155 0.1mmx 35 Twisted Copper Litz Wire
No. Of Strands:	35
Highlight:	Class 155 Copper Litz Wire , 0.1mmx 35 Twisted Copper Litz Wire , 2UEW-F Copper Litz Wire

Product Description

2UEW-F Class 155 0.1mmx 35 Twisted Copper Litz Wire

Introducing our premium quality custom Litz wire, a versatile and essential component for a wide range of electronic and industrial applications. Litz wire is known for its unique multi-strand construction, designed to reduce skin and proximity effect losses in high frequency applications. This makes it ideal for transformer windings where efficiency and performance are critical. Our Litz wire is carefully crafted to meet the specific needs of our customers, ensuring you receive a custom product that meets your requirements.

Outgoing test of stranded wire	Spec: 0.1x35	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.110-0.125	0.119	0.120	0.122
Conductor diameter(mm)	0.100±0.002	0.10	0.10	0.10
Pitch(mm)	33±7	√
Breakdown voltage Mini (V)	Min.1100	2400v	2300v	2500v

2UEW-F Class 155 0.1mmx 35 Twisted Copper Litz Wire 0

2UEW-F Class 155 0.1mmx 35 Twisted Copper Litz Wire 1
