Name: High Temperature 0.102mm Silver Plated Wire For High End Audio
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Silver plated wire
Price: 24.06 USD
Availability: InStock

High Temperature 0.102mm Silver Plated Wire For High End Audio

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	Silver plated wire

Minimum Order Quantity:	2 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10/week

Get Best Price Contact Now

Detail Information

Product Name:	High Temperature 0.102mm Silver Plated Wire For High End Audio	Thermal Rating:	155
Insulation Material:	UEW Enamel	Diameter:	0.102mm
Conductor Material:	Copper, Silver Plated	Key Word:	High Temperature 0.102mm Silver Plated Wire For High End Audio
Highlight:	High Temperature Silver Plated Wire , High End Audio Silver Plated Wire , 0.102mm Silver Plated Wire

Product Description

High Temperature 0.102mm Silver Plated Wire For High End Audio

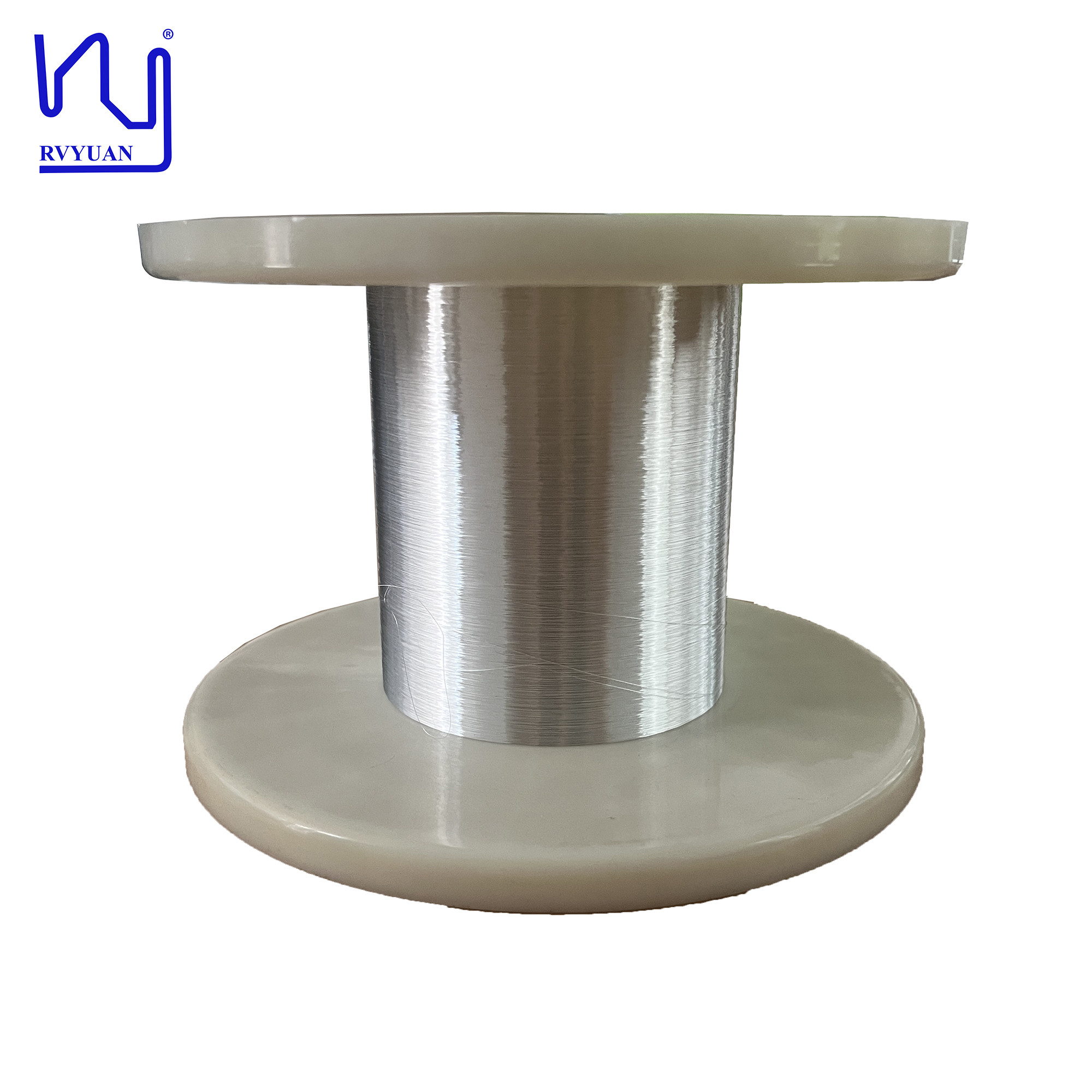

This specialized silver plated wire features a single 0.102mm diameter copper conductor and is plated with a layer of silver. With high temperature resistance up to 240 degrees Celsius, it can operate reliably in a variety of environments, making it an ideal choice for audiophiles and professionals.

Standard specifications for monocrystalline silver
Diameter(mm)	Tensile strength(Mpa)		Elongation(%)		conductivity(IACS%)		Purity(%)
Diameter(mm)	Hard state	Soft state	Hard state	Soft state	Hard state	Soft state	Purity(%)
3.0	≥320	≥180	≥0.5	≥25	≥104	≥105	≥99.995
2.05	≥330	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
1.29	≥350	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
0.102	≥360	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995

Inspection items	Inspection Standards	Test results
Coating thickness um	≥0.3	0.307
Surface quality	Normal vision	good
Dimensions and deviations (mm)	0.102±0.003	0.102, 0.103
Elongation (%)	> 10	23.64
Tensile strength (MPa)	/	222
Volume resistivity ( Ω mm2 /m )	/	0.016388

Multi-scenario application

High-end home theater, high-end hifi system, KTV wiring, car audio system, multimedia audio-visual room, cinema, banquet hall, lecture hall, multimedia classroom, gym hotel restaurant audio system, office meeting room, concert and other multi-channel use.

High Temperature 0.102mm Silver Plated Wire For High End Audio 0
