0.03 X 2000 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Product Name:	0.03 X 2000 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.03 X 2000 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer
No. Of Strands:	2000
Highlight:	High Frequency Enameled Copper Litz Wire , Transformer Enameled Copper Litz Wire , Enameled Copper Litz Wire

Product Description

0.03 X 2000 Strands Twisted High Frequency Enameled Copper Litz Wire for Transformer

Litz wire is the cornerstone of our product range, and we are proud to offer a wide range of high frequency Litz wire products. Our product line includes not only standard Litz wire, but also a variety of special types, such as nylon stranded Litz wire, coated Litz wire and flat Litz wire. This wide range of products allows us to meet a wide range of application requirements, ensuring that customers can find the perfect solution for their unique needs. Whether you are working on a small project or a large industrial application, our Litz wire will provide excellent performance and reliability.

Outgoing test of stranded wire	Spec: 0.03x2000	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.033-0.044	0.036-0.038
Conductor diameter(mm)	0.03±0.002	0.028-0.030
Overall diameter (mm)	Max.2.30	1.98
Pitch(mm)	33±7	√
Max resistance (Ω/m at20℃)	Max. 0.01444	0.01259
Breakdown voltage Mini (V)	400	1500

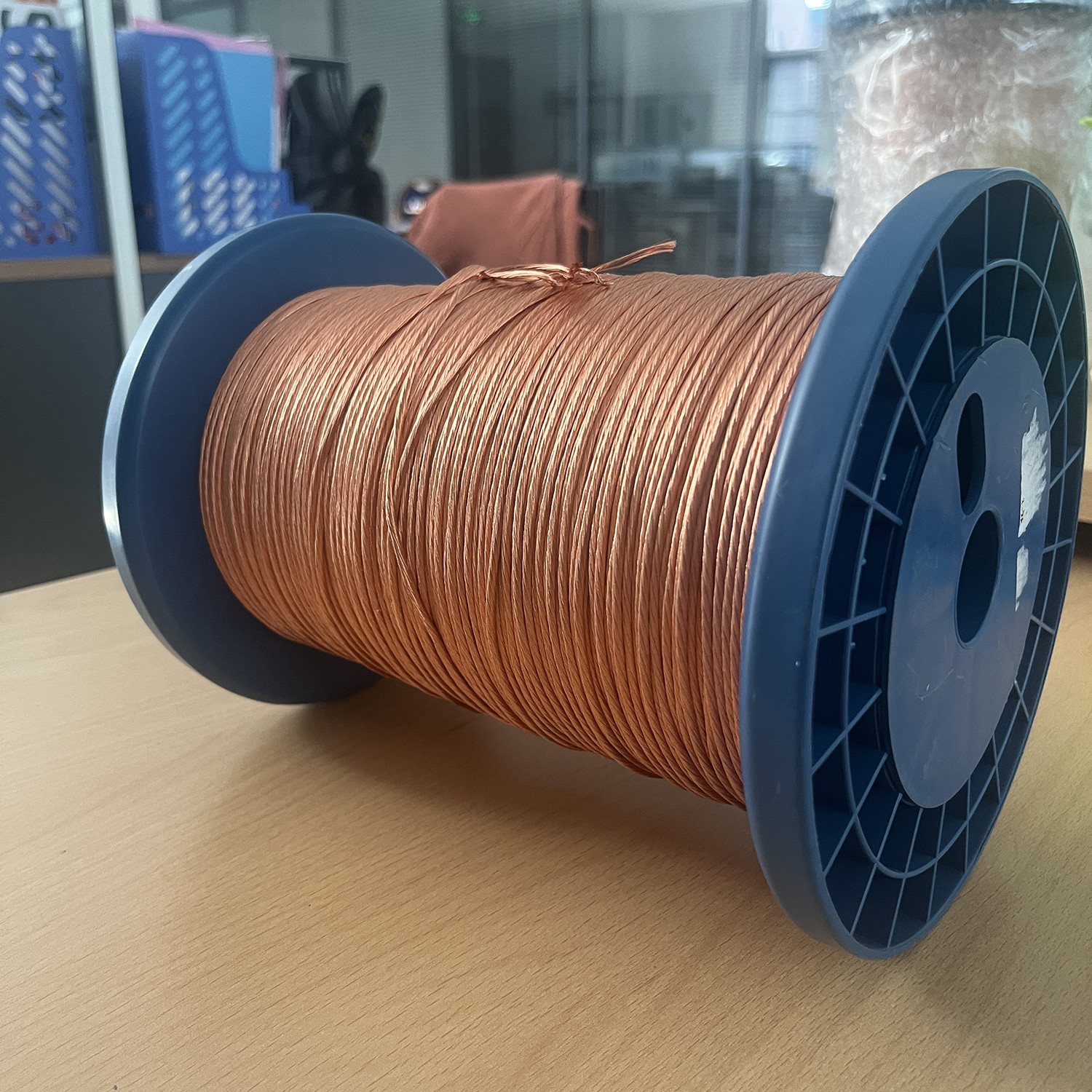

0.03 X 2000 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer 0

0.03 X 2000 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer 1
