Place of Origin: | China |
---|---|
Brand Name: | RVYUAN |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | Copper litz wire |
Minimum Order Quantity: | 10kg |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Product Name: | Super Fine Litz Wire 0.03mmx2000 Copper Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
---|---|---|---|
Diameter: | 0.03mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
Conductor: | Copper | Insulation: | Enamel |
Rated Temperature: | 155/180 | Key Word: | Super Fine Litz Wire 0.03mmx2000 Copper Stranded Wire |
No. Of Strands: | 2000 | ||
Highlight: | 0.03mmx2000 Copper Litz Wire,Super fine Copper Litz Wire,Stranded Copper Litz Wire |

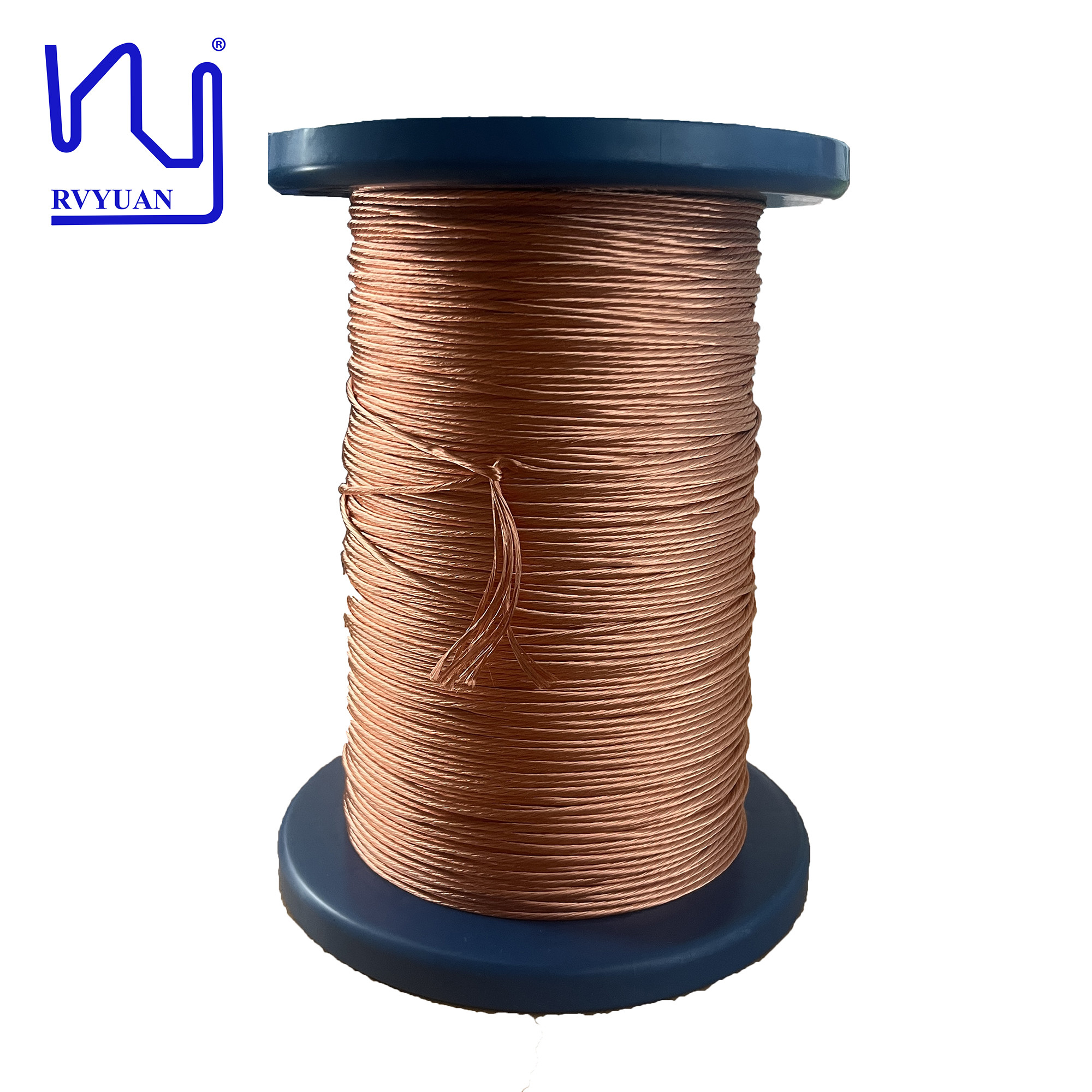

Super fine Litz Wire 0.03mmx2000 Copper Stranded Wire
The unique construction of our high-frequency copper litz wire ensures excellent performance in transformer winding. The fine strands make it more flexible and easier to handle, while the enameled wire provides excellent insulation and protection from environmental factors. With a temperature resistance of up to 155 degrees Celsius, our litz wire can meet the stringent requirements of high-performance applications. For applications that require higher temperature resistance, we also offer a 180 degree Celsius enameled wire option, ensuring customers have the flexibility to choose the best solution for their needs.
Outgoing test of stranded wire | Spec: 0.03x2000 | Model: 2UEW-F |
Item | Standard | Test result |
Outer conductor diameter(mm) | 0.033-0.044 | 0.036-0.038 |
Conductor diameter(mm) | 0.03±0.002 | 0.028-0.030 |
Overall diameter (mm) | Max.2.30 | 1.98 |
Pitch(mm) | 33±7 | √ |
Max resistance (Ω/m at20℃) | Max. 0.01444 | 0.01259 |
Breakdown voltage Mini (V) | 400 | 1500 |
