2UEW-F Super Fine 0.03mmx2000 High Frequency Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Product Name:	2UEW-F Super Fine 0.03mmx2000 High Frequency Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	2UEW-F Super Fine 0.03mmx2000 High Frequency Litz Wire For Transformer
No. Of Strands:	2000
Highlight:	0.03mmx2000 litz wire , high frequency litz wire , 2UEW-F litz wire

Product Description

2UEW-F Super fine 0.03mmx2000 high frequency litz wire for transformer

In the field of electrical engineering, the choice of wire has a significant impact on the performance and efficiency of equipment, especially in high-frequency applications. Our company is proud to introduce a custom high-frequency copper litz wire designed to meet the demanding requirements of transformer winding. This innovative product is made of enameled copper wire with a wire diameter of only 0.03 mm. Our litz wire is twisted with 2000 strands, which not only improves conductivity but also minimizes skin effect and proximity effect, making it an ideal choice for high-frequency applications.

Outgoing test of stranded wire	Spec: 0.03x2000	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.033-0.044	0.036-0.038
Conductor diameter(mm)	0.03±0.002	0.028-0.030
Overall diameter (mm)	Max.2.30	1.98
Pitch(mm)	33±7	√
Max resistance (Ω/m at20℃)	Max. 0.01444	0.01259
Breakdown voltage Mini (V)	400	1500

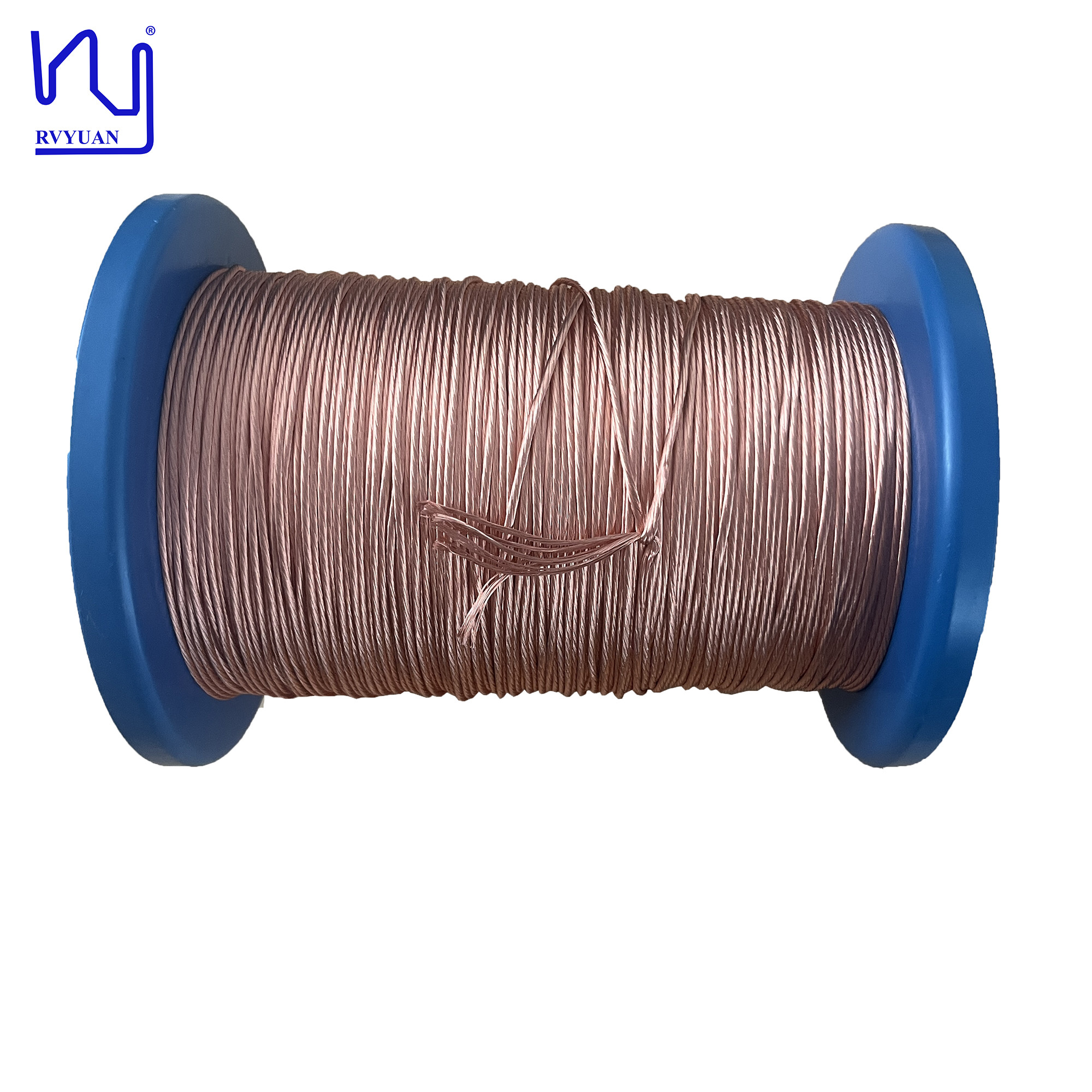

2UEW-F Super Fine 0.03mmx2000 High Frequency Litz Wire For Transformer 0

2UEW-F Super Fine 0.03mmx2000 High Frequency Litz Wire For Transformer 1
