HF 0.03mm X 150 Copper Stranded Wire Enameled Coated Litz Wire

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: HF 0.03mm X 150 Copper Stranded Wire Enameled Coated Litz Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.03mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: HF 0.03mm X 150 Copper Stranded Wire Enameled Coated Litz Wire
No. Of Strands: 150
Highlight:

HF Copper Litz Wire

,

Enameled Coated Copper Litz Wire

,

0.03mm Copper Litz Wire


Product Description

HF 0.03mm x 150 Copper Stranded Wire Enameled Coated Litz Wire



A key benefit of our high-frequency copper stranded wire is its ease of soldering. This feature simplifies the assembly process and enables efficient and reliable connections in transformer winding applications. Our dedicated technical team is always available to provide support and guidance to ensure you get the most out of our products. We understand that every project is unique, so we offer small batch customization services with a minimum order quantity of only 10 kg. This flexibility allows you to customize orders to your specific needs without the burden of excess inventory.



Outgoing test of stranded wire Spec: 0.03x150 Model: 2UEW-F
Item Standard Test result
Outer conductor diameter(mm) 0.033-0.044 0.036-0.038
Conductor diameter(mm) 0.03±0.002 0.028-0.030
Overall diameter (mm) Max.0.60 0.45
Pitch(mm) 14±2
Max resistance (Ω/m at20℃) Max. 0.1925 0.1667
Breakdown voltage Mini (V) 400 1900

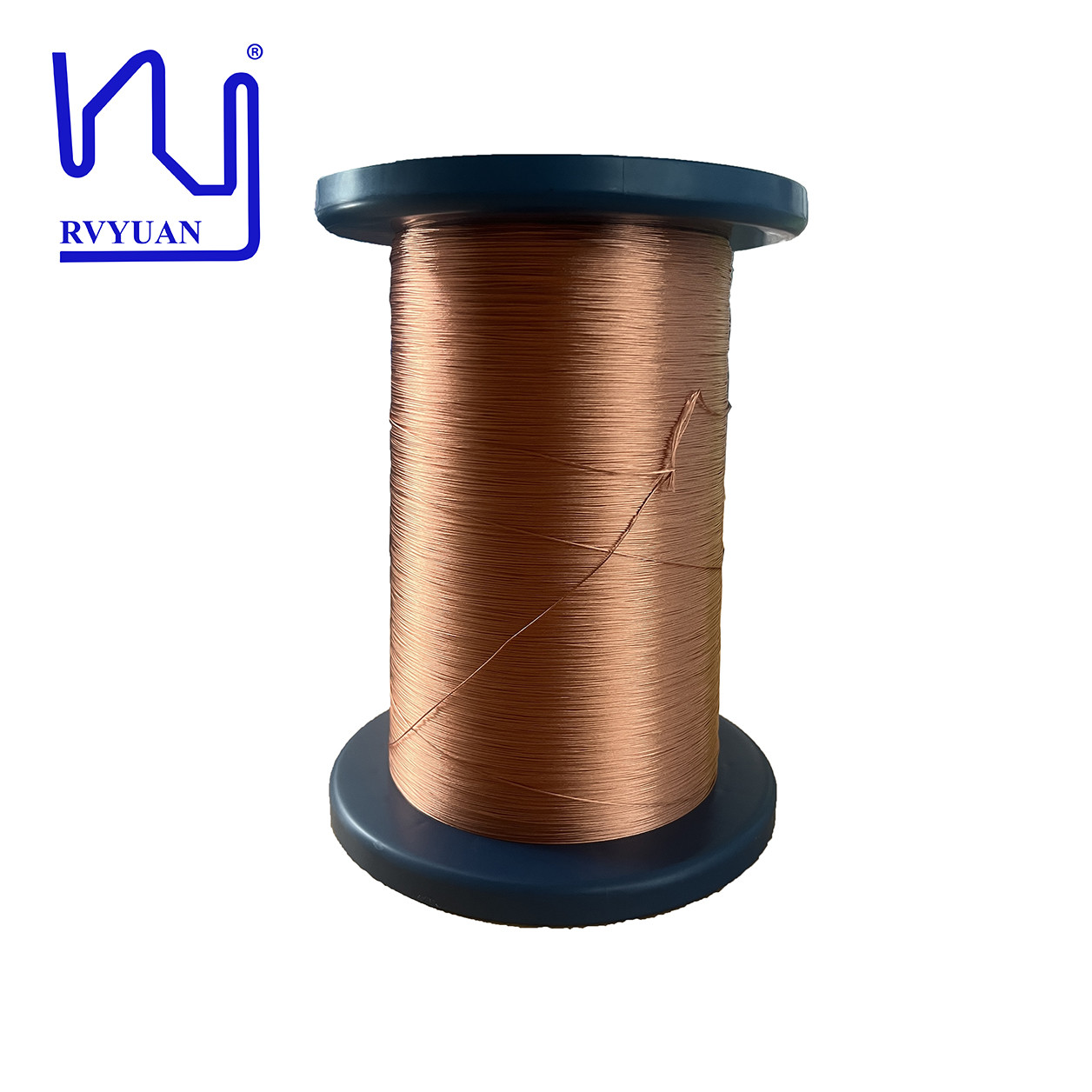

HF 0.03mm X 150 Copper Stranded Wire Enameled Coated Litz Wire 0



HF 0.03mm X 150 Copper Stranded Wire Enameled Coated Litz Wire 1
