Name: Super Thin 0.03mm Multi-Strands Enameled Copper Litz Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

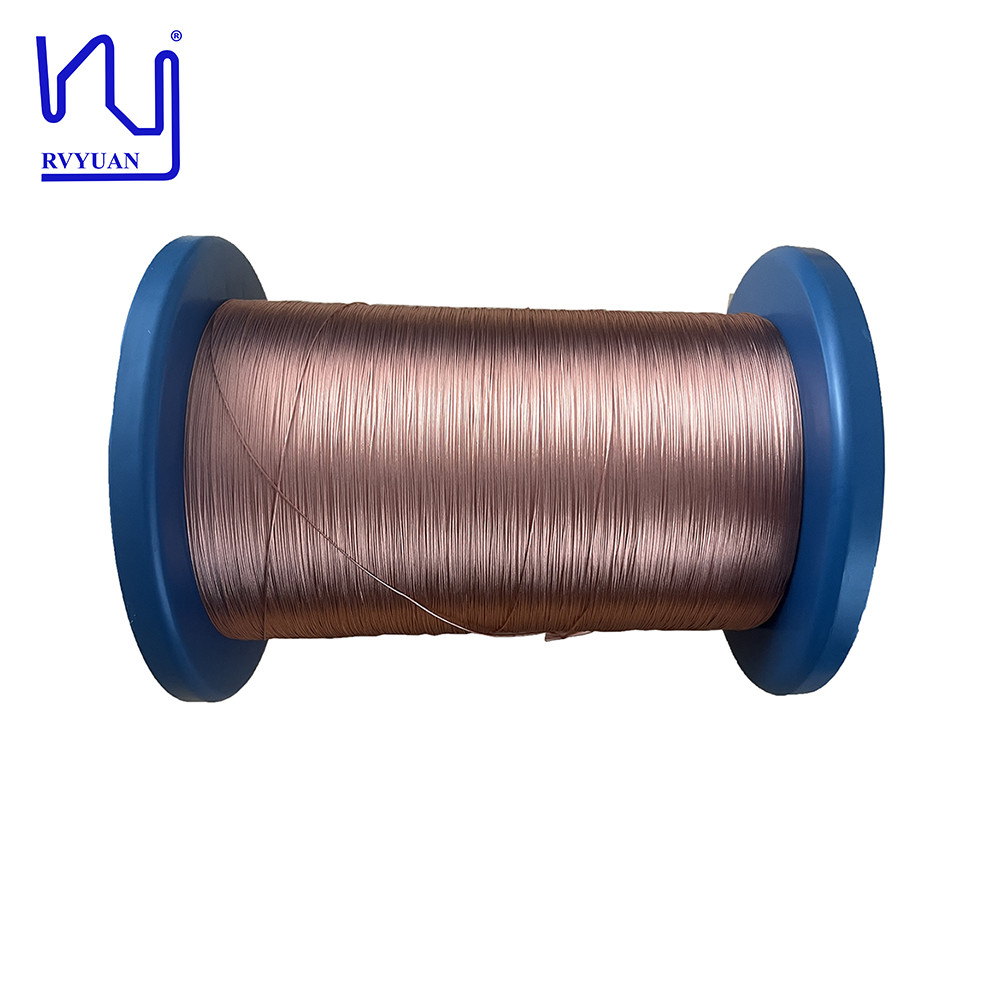

Super Thin 0.03mm Multi-Strands Enameled Copper Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Product Name:	Super Thin 0.03mm Multi-Strands Enameled Copper Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Super Thin 0.03mm Multi-Strands Enameled Copper Litz Wire For Transformer
No. Of Strands:	150
Highlight:	0.03mm Enameled Copper Litz Wire , Transformer Enameled Copper Litz Wire , Multi-Strands Enameled Copper Litz Wire

Product Description

Super thin 0.03mm Multi-Strands Enameled Copper Litz Wire for Transformer

our customized high-frequency copper litz wire is an ideal solution for transformer winding and other high-frequency applications. With excellent structure, high temperature resistance and weldability, our litz wire is the first choice of engineers and manufacturers. With a professional technical team and commitment to quality, we are committed to providing you with the best products and support in the industry. Explore our high-frequency litz wire range now and experience how our expertise and innovative technology can make a significant difference to your project.

Outgoing test of stranded wire	Spec: 0.03x2000	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.033-0.044	0.036-0.038
Conductor diameter(mm)	0.03±0.002	0.028-0.030
Overall diameter (mm)	Max.0.60	0.45
Pitch(mm)	14±2	√
Max resistance (Ω/m at20℃)	Max. 0.1925	0.1667
Breakdown voltage Mini (V)	400	1900

Super Thin 0.03mm Multi-Strands Enameled Copper Litz Wire For Transformer 0

Super Thin 0.03mm Multi-Strands Enameled Copper Litz Wire For Transformer 1
