0.03mm X 150 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.03mm X 150 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.03mm X 150 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer
No. Of Strands:	150
Highlight:	Transformer Enameled Copper Litz Wire , 150 Strands Enameled Copper Litz Wire , 0.03mm Enameled Copper Litz Wire

Product Description

0.03mm X 150 Strands Twisted High Frequency Enameled Copper Litz Wire for Transformer

Our extensive product line not only covers high frequency Litz wire, but also nylon served Litz wire, tape Litz wire and flat Litz wire. The diverse product selection allows us to meet the needs of a variety of industries and applications, ensuring that our customers' specific needs are met. In addition, we understand that every project is unique, so we support small batch customization with a minimum order quantity of only 10 kg. This flexibility allows our customers to obtain the exact specifications they need without the burden of excessive inventory.

Outgoing test of stranded wire	Spec: 0.03x150	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.033-0.044	0.036-0.038
Conductor diameter(mm)	0.03±0.002	0.028-0.030
Overall diameter (mm)	Max.0.60	0.45
Pitch(mm)	14±2	√
Max resistance (Ω/m at20℃)	Max. 0.1925	0.1667
Breakdown voltage Mini (V)	400	1900

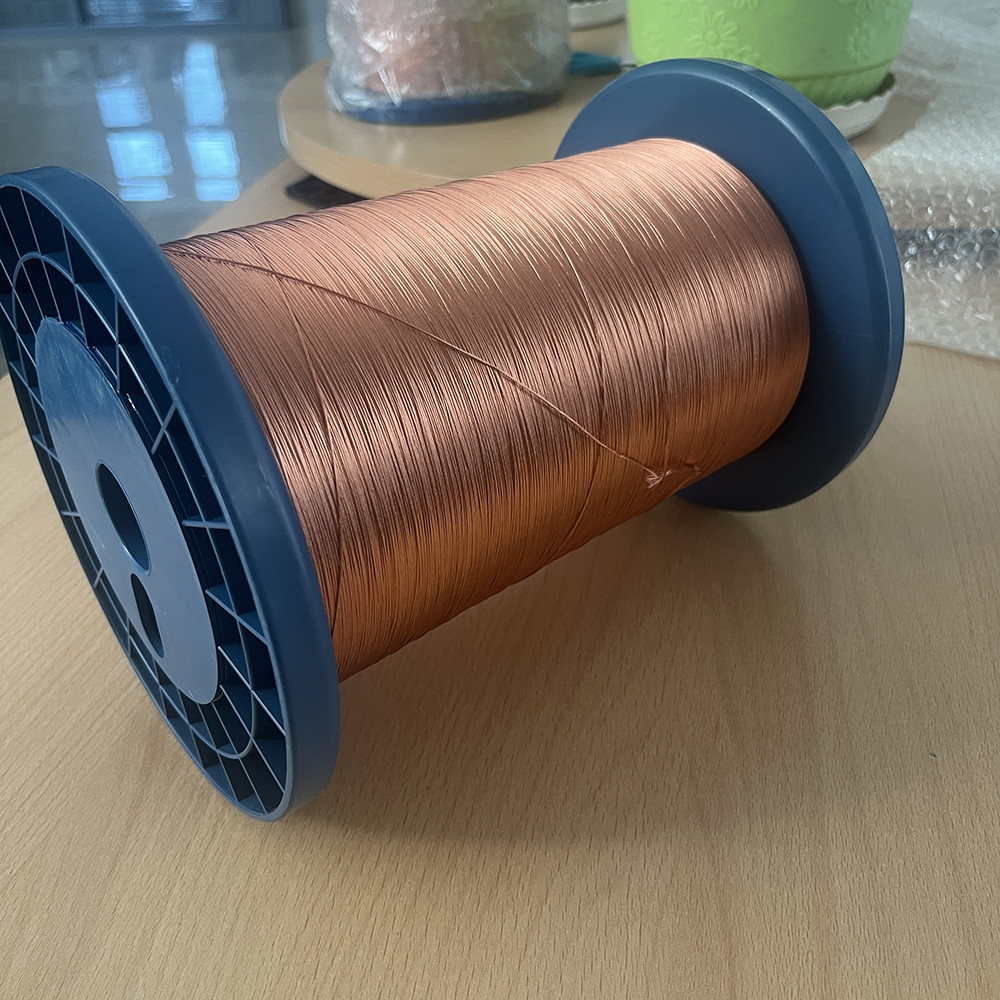

0.03mm X 150 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer 0

0.03mm X 150 Strands Twisted High Frequency Enameled Copper Litz Wire For Transformer 1
