High Frequency Litz Wire 0.03mmx150 For High Frequency Transformers

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	High Frequency Litz Wire 0.03mmx150 For High Frequency Transformers	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	High Frequency Litz Wire 0.03mmx150 For High Frequency Transformers
No. Of Strands:	150
Highlight:	0.03mmx150 Litz Wire , High Frequency Litz Wire , High Frequency Transformers Litz Wire

Product Description

High frequency litz wire 0.03mmx150 For High Frequency Transformers

The thermal rating of the litz wire is 155 degrees Celsius, we also offer 180 degrees Celsius enameled wire, providing more options to meet your specific needs.

Our extensive product line not only covers high frequency Litz wire, but also nylon served Litz wire, tape Litz wire and flat Litz wire. The diverse product selection allows us to meet the needs of a variety of industries and applications, ensuring that our customers' specific needs are met.

Outgoing test of stranded wire	Spec: 0.03x2000	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.033-0.044	0.036-0.038
Conductor diameter(mm)	0.03±0.002	0.028-0.030
Overall diameter (mm)	Max.0.60	0.45
Pitch(mm)	14±2	√
Max resistance (Ω/m at20℃)	Max. 0.1925	0.1667
Breakdown voltage Mini (V)	400	1900

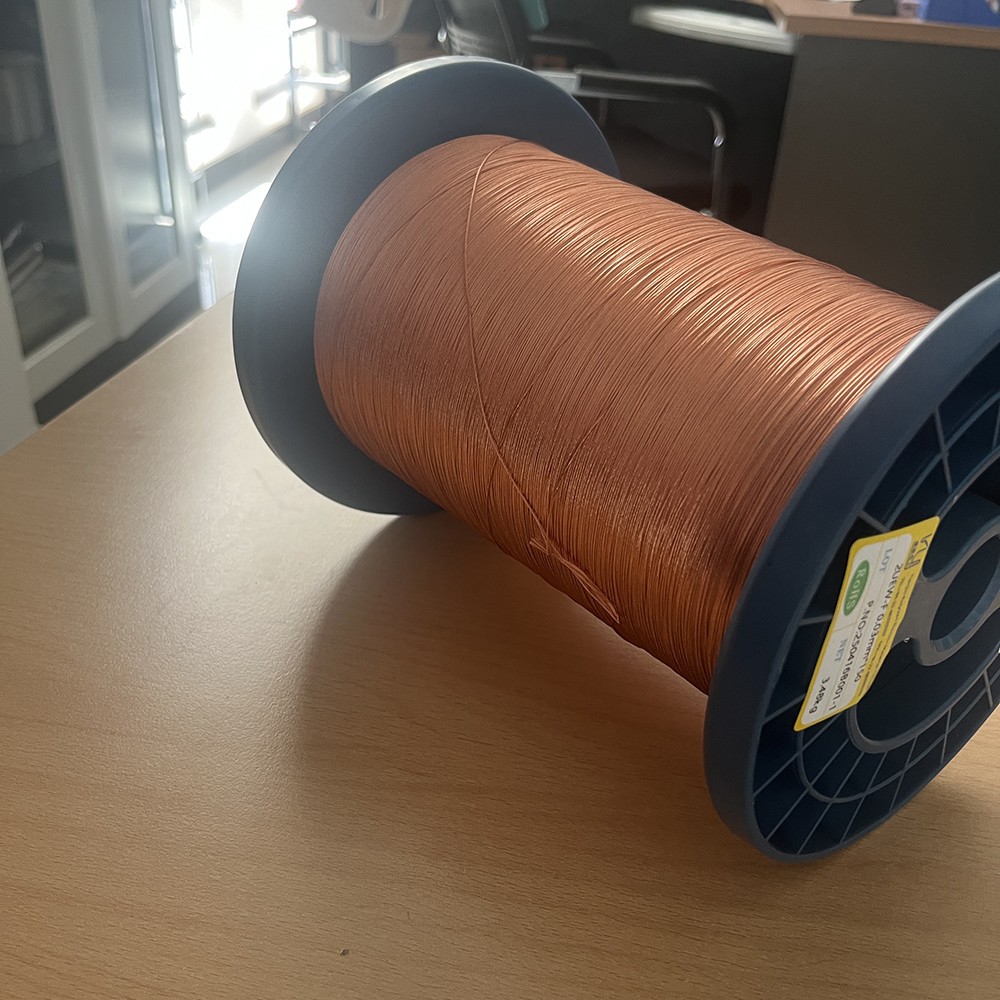

High Frequency Litz Wire 0.03mmx150 For High Frequency Transformers 0

High Frequency Litz Wire 0.03mmx150 For High Frequency Transformers 1
