Stranded Copper 0.03mmx150 Litz Wire For High Frequency Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Stranded Wire Copper 0.03mmx150 Litz Wire For High Frequency Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Stranded Wire Copper 0.03mmx150 Litz Wire For High Frequency Transformer
No. Of Strands:	150
Highlight:	0.03mmx150 Litz wire , High Frequency Transformer Litz wire , Stranded Wire Copper Litz wire

Product Description

Stranded Wire Copper 0.03mmx150 Litz wire For High Frequency Transformer

This litz wires feature ultra-fine enameled copper wires with a single wire diameter of 0.03 mm, carefully stranded of 150 strands to ensure optimal conductivity and minimize skin effect. This unique construction not only improves performance but also provides exceptional flexibility, making it ideal for a variety of applications in the electronics industry.

Outgoing test of stranded wire	Spec: 0.03x150	Model: 2UEW-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.033-0.044	0.036-0.038
Conductor diameter(mm)	0.03±0.002	0.028-0.030
Overall diameter (mm)	Max.0.60	0.45
Pitch(mm)	14±2	√
Max resistance (Ω/m at20℃)	Max. 0.1925	0.1667
Breakdown voltage Mini (V)	400	1900

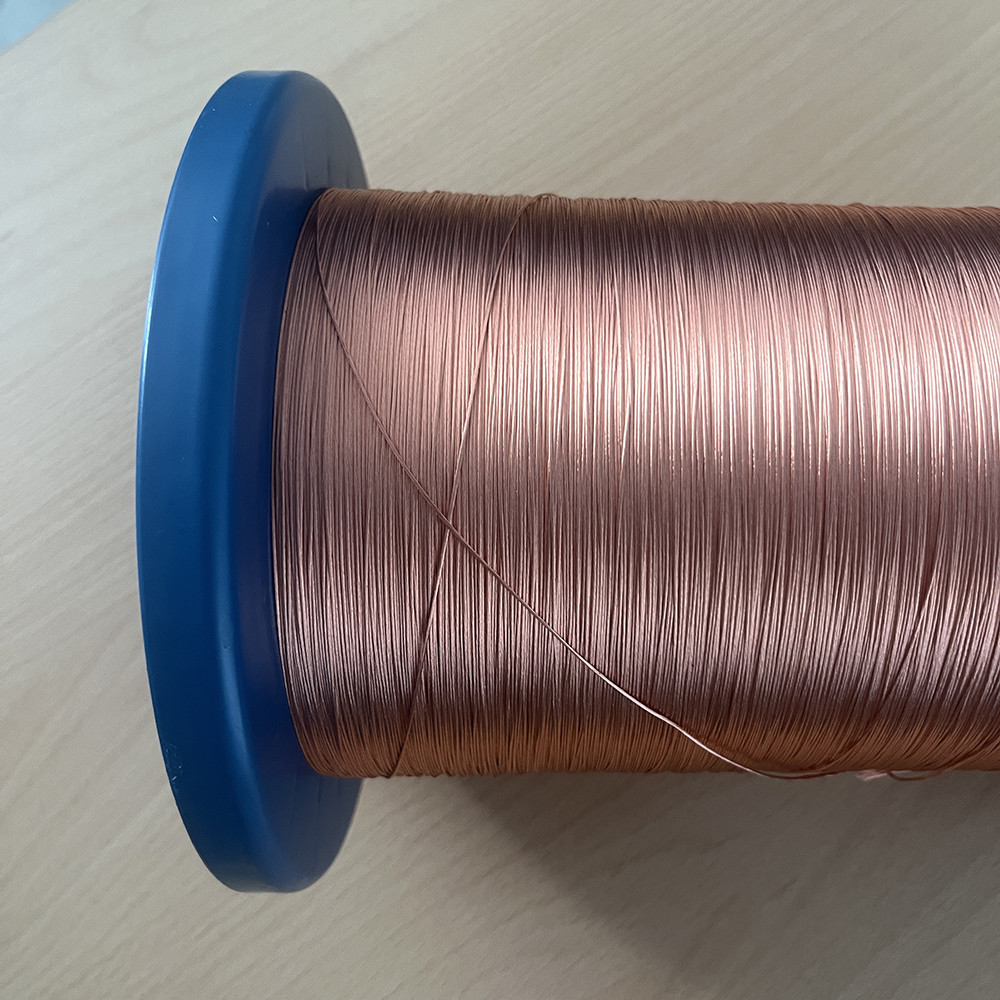

Stranded Copper 0.03mmx150 Litz Wire For High Frequency Transformer 0

Stranded Copper 0.03mmx150 Litz Wire For High Frequency Transformer 1
