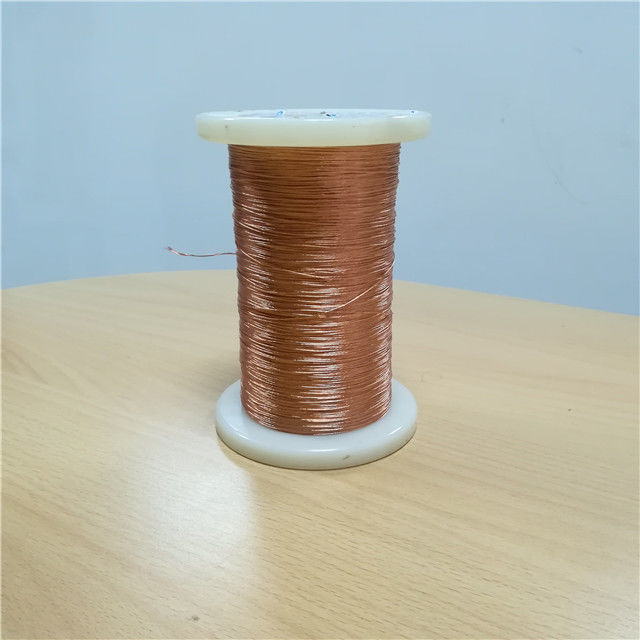

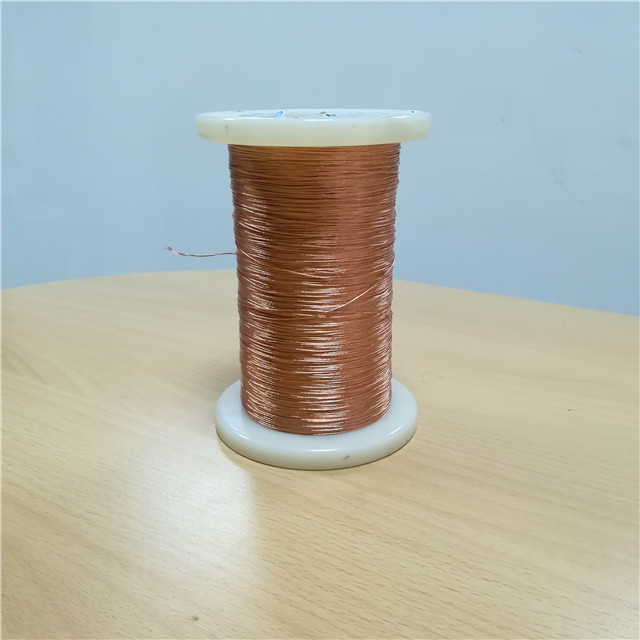

Custom 0.025mm -0.8mm High Frequency Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Custom 0.025mm -0.8mm High Frequency Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Conductor:	Copper
Key Word:	Custom 0.025mm -0.8mm High Frequency Copper Litz Wire	No. Of Strands:	40
Thermal Rating:	155
Highlight:	High Frequency Copper Litz Wire , 0.025mm Copper Litz Wire , 0.8mm Copper Litz Wire

Product Description

Custom 0.025mm -0.8mm High Frequency Copper Litz Wire

Our custom high-frequency litz wire represents the pinnacle of stranded wire technology, providing superior performance for a wide range of high-frequency applications. Trust our high-frequency litz wire to enhance your projects and meet the demands of modern technology.

Outgoing test of stranded wire	Spec: 0.2x4	Model: 2UEWF
Conductor diameter(mm)	0.20±0.003	0.198	0.200
Overall diameter (mm)	0.216-0.231	0.220	0.223
Pitch(mm)	14±2	OK	OK
Overall Diameter	Max.0.53	0.51	0.51
Max pinholes Faults/6m	Max. 6	0	0
Max resistance (Ω/m at20℃)	Max. 0.1443	0.1376	0.1371
Breakdown voltage Mini (V)	1600	5700	5800
