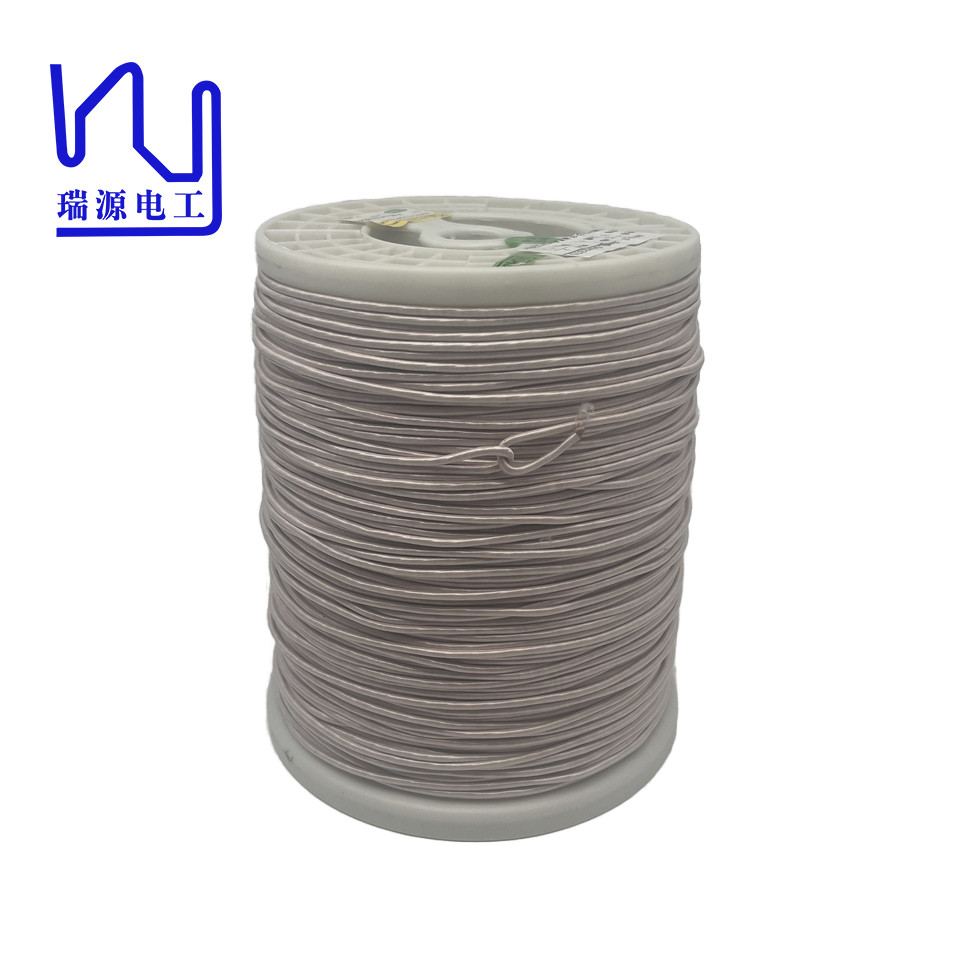

Name: 2USTC/UDTC-F 0.04mm x 2375 strands Silk Covered Litz Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: litz wire
Price: 24.06 USD
Availability: InStock

2USTC/UDTC-F 0.04mm x 2375 strands Silk Covered Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	2USTC/UDTC-F 0.04mm X 2375 Strands Silk Covered Litz Wire For Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.04mm	Conductor:	Copper
Key Word:	2USTC/UDTC-F 0.04mm X 2375 Strands Silk Covered Litz Wire For Transformer	No. Of Strands:	2375
Thermal Rating:	155
Highlight:	Transformer Silk Covered Litz Wire , 2375 strands Silk Covered Litz Wire , 0.04mm Silk Covered Litz Wire

Product Description

2USTC/UDTC-F 0.04mm x 2375 strands Silk Covered Litz Wire For Transformer

This innovative product is designed to meet the demanding requirements of modern electrical systems, ensuring optimal efficiency and reliability.

With a single wire diameter of only 0.04 mm, this silk covered Litz wire is carefully crafted from 2475 strands, offering excellent flexibility and conductivity.

Outgoing test report of 0.04x2375
Item	Technical requests	Test Value
Conductor Diameter mm	0.043-0.056	0.047-0.049
Single wire diameter mm	0.04±0.002	0.038-0.040
O.D.mm	Max.3.41	2.90-3.21
Resistance (20℃)	Max.0.001181	0.00116
Breakdown Voltage v	Min.6000	13000
Pitch mm	40±10	√
No. of strands	2375	√
