Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | litz wire |
Minimum Order Quantity: | 20kg |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Name: | Class F Copper Litz Wire 0.32mmx32 Stranded Wire For Transformer Winding | Certification: | ISO9001/ISO14001/UL/SGS |
---|---|---|---|
Diameter: | 0.32mm | Conductor: | Copper |
Key Word: | Class F Copper Litz Wire 0.32mmx32 Stranded Wire For Transformer Winding | No. Of Strands: | 32 |
Thermal Rating: | 155 | ||
Highlight: | 0.32mmx32 Copper Litz Wire,Class F Copper Litz Wire,Transformer Winding Copper Litz Wire |

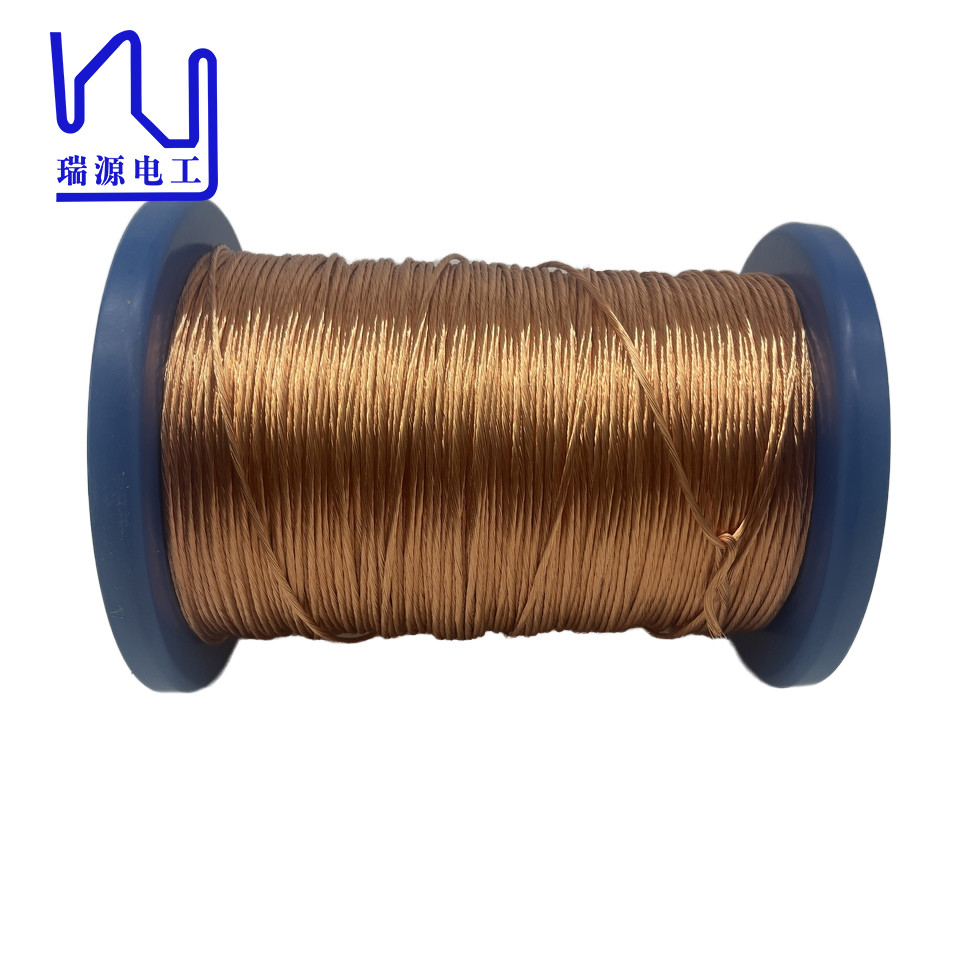

Class F Copper Litz Wire 0.32mmx32 Stranded Wire For Transformer Winding
In addition to stranded copper wire, we offer a variety of Litz wire configurations to meet your unique needs, we also supply nylon served litz wire, taped litz wire and profiled litz wire.
The versatility of our copper stranded and Litz wires extends beyond high frequency transformers. These copper stranded wires are also ideal for use in motors, inductors, and other electromagnetic devices critical to efficiency and performance.
Item | Out conductor diameter mm | Conductor diameter mm | Overall diameter mm | Pitch mm |
Resistance Ω /m(20℃) |
Breakdown voltage V |
Solderability 390±5 ℃10S
|
Tech requirement | 0.335-0.357 | 0.32 | 2.50 | 33 | 0.006963 | 2000 | Surface smooth, no crack |
± | 0.005 | Max. | 7 | max | Min | ||
1 | 0.344-0.347 | 0.317-0.32 | 2.28 | √ | 0.006786 | 4400 | √ |
