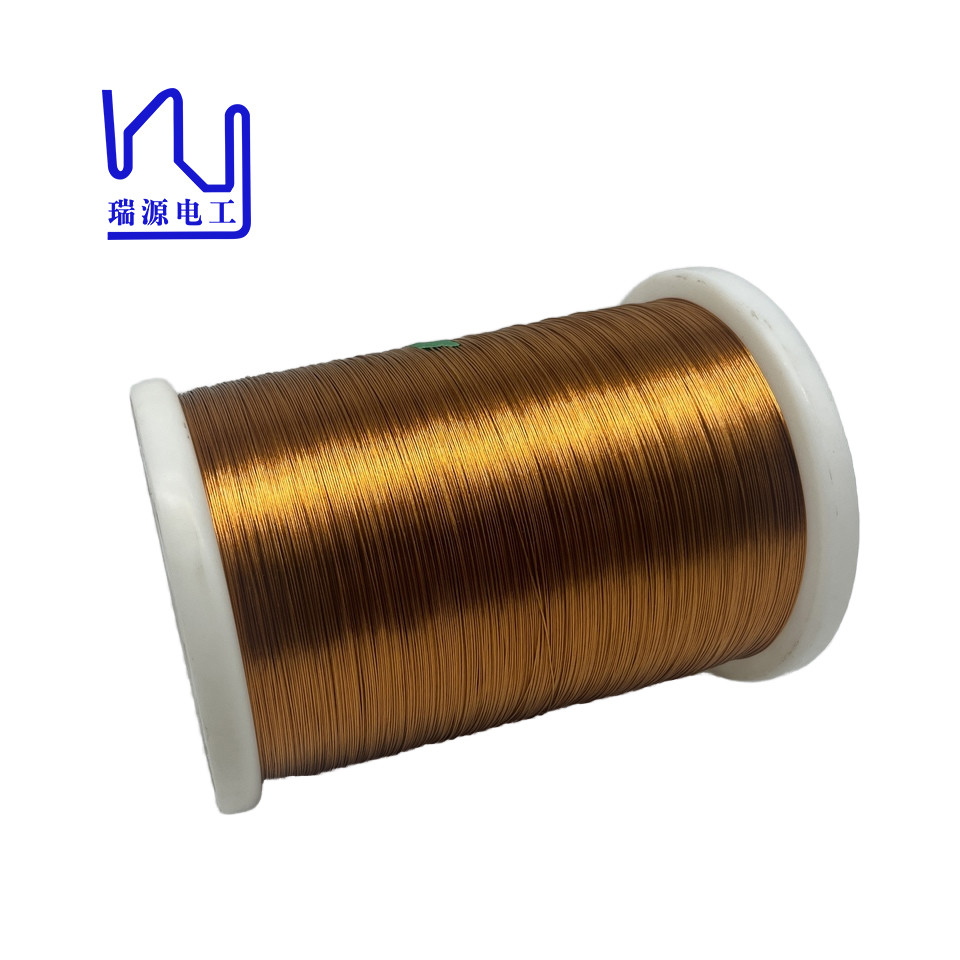

HF 0.05mm Copper Taped Litz Wire For Transformer Insulated Winding Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	HF 0.05mm Copper Taped Litz Wire For Transformer Insulated Winding Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.05mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	155
Key Word:	HF 0.05mm Copper Taped Litz Wire For Transformer Insulated Winding Wire	No. Of Strands:	75
Highlight:	0.05mm Copper Litz Wire , HF Copper Litz Wire , Transformer Insulated Winding Wire

Product Description

HF 0.05mm Copper Taped Litz Wire for Transformer Insulated Winding Wire

Our custom taped Litz wire, featuring fine copper strands and superior polyesterimide film insulation, represents the pinnacle of wire technology. Its unique construction and high-quality materials make it ideal for a variety of industrial applications, providing unparalleled performance, reliability and safety. Whether you are looking to increase the efficiency of your high frequency components or ensure the durability of your motors, our wrapped litz wire is the perfect solution for your needs.

Ttem NO.	Single wire diameter mm	Conductor diameter mm	O.D.mm	Resistance Ω /m	Dielectric strength V	No.of strands	Overlap %
Tech requirement	0.058-0.069	0.05 ±0.003	≤0.77	≤0.1365	≥6000	75	≥50
1	0.058-0.061	0.047-0.050	0.65-0.73	0.1162	11500	75	52
2	0.058-0.061	0.045-0.050	0.65-0.73	0.1166	11600	75	53
