| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Electrical Vehicle Use 2UEW-F-PI 0.05*75 High Breakdown Voltage Taped Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 155 |
| Key Word: | Electrical Vehicle Use 2UEW-F-PI 0.05*75 High Breakdown Voltage Taped Litz Wire | No. Of Strands: | 75 |
| Highlight: | Electrical Vehicle Use Taped Litz Wire,2UEW-F-PI Taped Litz Wire,High Breakdown Voltage Taped Litz Wire |
||

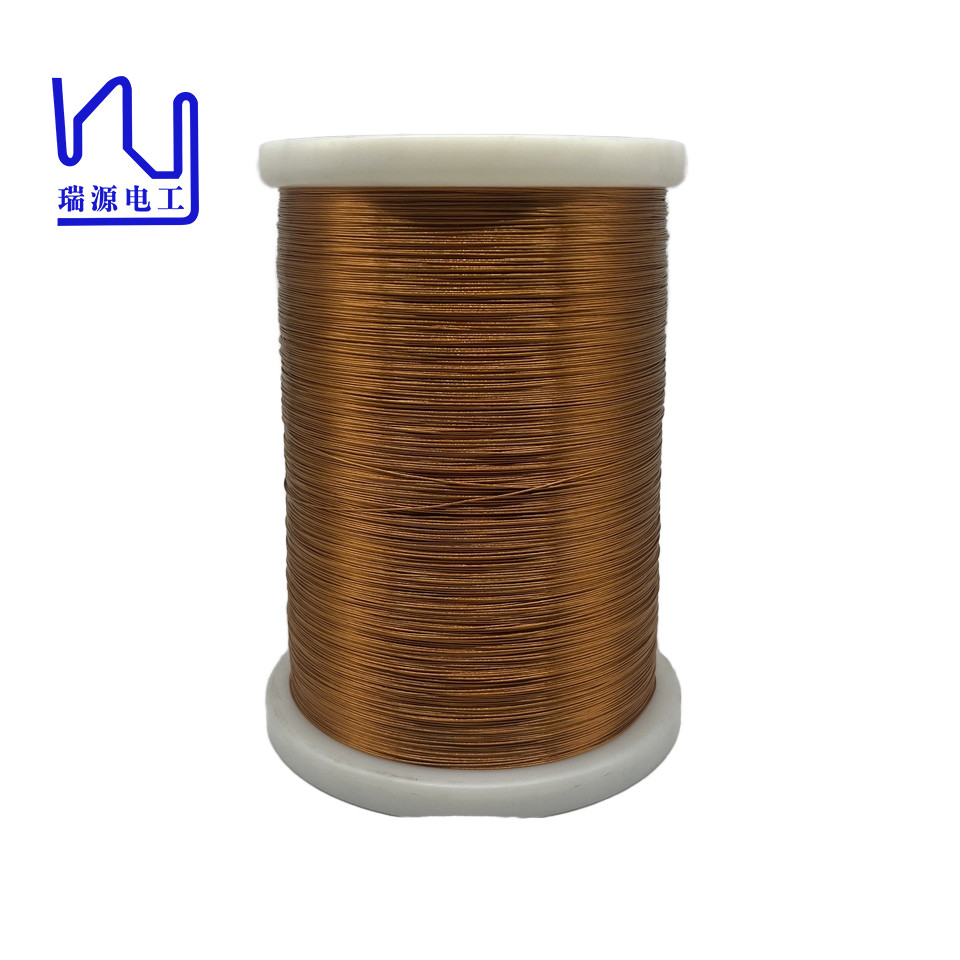

Electrical Vehicle Use 2UEW-F-PI 0.05*75 High Breakdown Voltage Taped Litz Wire
Taped Litz Wire is designed to solve common challenges faced in high frequency applications. By stranding multiple strands of fine copper Litz wire, we significantly reduce the skin and proximity effects prevalent in traditional solid conductors. This unique construction ensures that our Litz wires maintain high efficiency and minimal power losses, making them an ideal solution for transformers, inductors and other high frequency components. The precision and care in the twisting process also contributes to the wire's superior mechanical strength and durability.
| Ttem
NO. |
Single wire
diameter mm |
Conductor
diameter mm |
O.D.mm | Resistance
Ω /m |
Dielectric strength V |
No.of
strands |
Overlap % |
|
Tech requirement |
0.058-0.069 | 0.05 ±0.003 | ≤0.77 | ≤0.1365 | ≥6000 | 75 | ≥50 |
| 1 | 0.058-0.061 | 0.047-0.050 | 0.65-0.73 | 0.1162 | 11500 | 75 | 52 |
| 2 | 0.058-0.061 | 0.045-0.050 | 0.65-0.73 | 0.1166 | 11600 | 75 | 53 |
