Name: 2UEW-F-PI 0.05mm X 75 Taped Litz Wire Copper Stranded Insulated Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	2UEW-F-PI 0.05mm X 75 Taped Litz Wire Copper Stranded Insulated Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.05mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	155
Key Word:	2UEW-F-PI 0.05mm X 75 Taped Litz Wire Copper Stranded Insulated Wire	No. Of Strands:	75
Highlight:	0.05mm Copper Stranded Insulated Wire , 75 Copper Stranded Insulated Wire , PI Copper Stranded Insulated Wire

Product Description

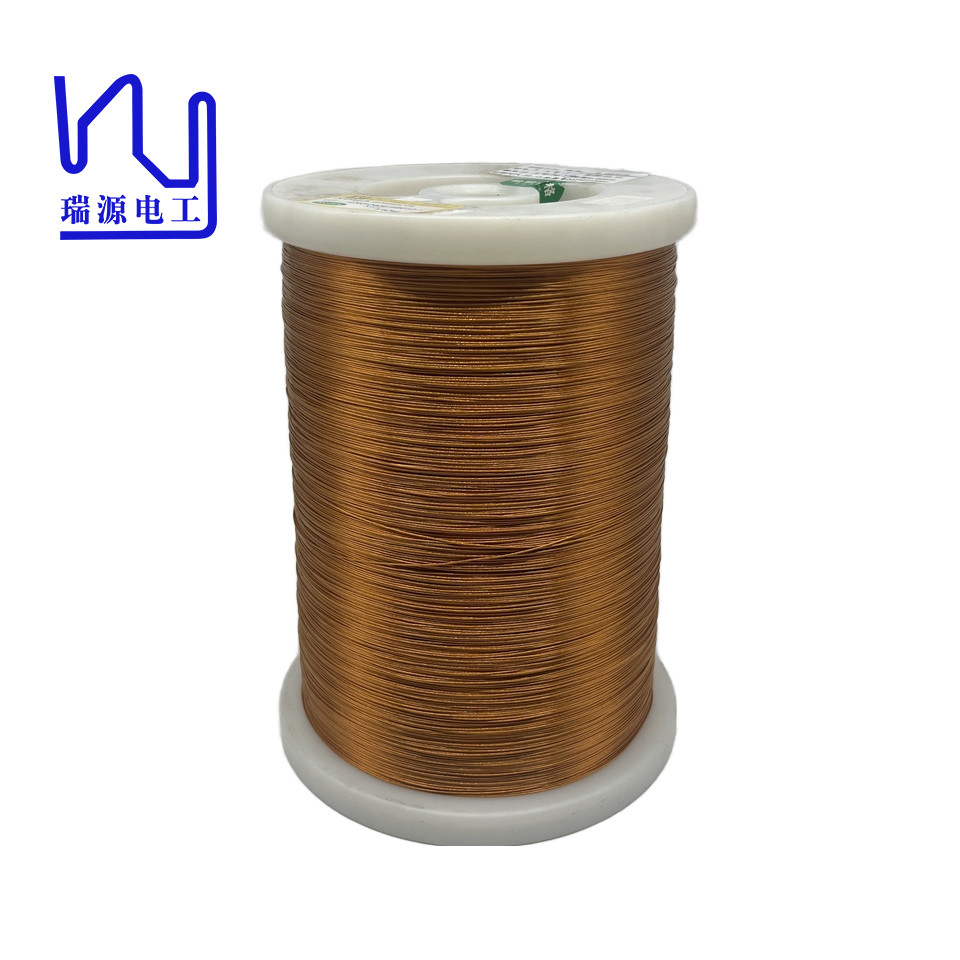

2UEW-F-PI 0.05mm x 75 Taped Litz Wire Copper Stranded Insulated Wire

This taped litz wire has a single wire diameter of 0.05 mm and is carefully twisted from 75 strands to ensure optimal conductivity and flexibility. Encapsulated in a polyesterimide film, the product offers unparalleled voltage resistance and electrical isolation, making it an excellent choice for a variety of industrial applications.

Ttem NO.	Single wire diameter mm	Conductor diameter mm	O.D.mm	Resistance Ω /m	Dielectric strength V	No.of strands	Overlap %
Tech requirement	0.058-0.069	0.05 ±0.003	≤0.77	≤0.1365	≥6000	75	≥50
1	0.058-0.061	0.047-0.050	0.65-0.73	0.1162	11500	75	52
2	0.058-0.061	0.045-0.050	0.65-0.73	0.1166	11600	75	53

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
