| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Insulation: | Enamel | Construction (strands*single Wire): | 7/0.10 |
|---|---|---|---|
| Key Word: | 0.1mm Solvent Bondable Manget Wire Copper Litz Wire For Transformer | Single Wire Outer Diameter: | 0.118-0.14 |
| Breakdown Voltage: | >2000V | Product Name: | 0.1mm Solvent Bondable Manget Wire Copper Litz Wire For Transformer |
| Diameter: | 0.1mm | Rated Temperature: | 180 |
| High Light: | Transformer Copper Litz Wire,Solvent bondable Copper Litz Wire,0.1mm Copper Litz Wire |
||

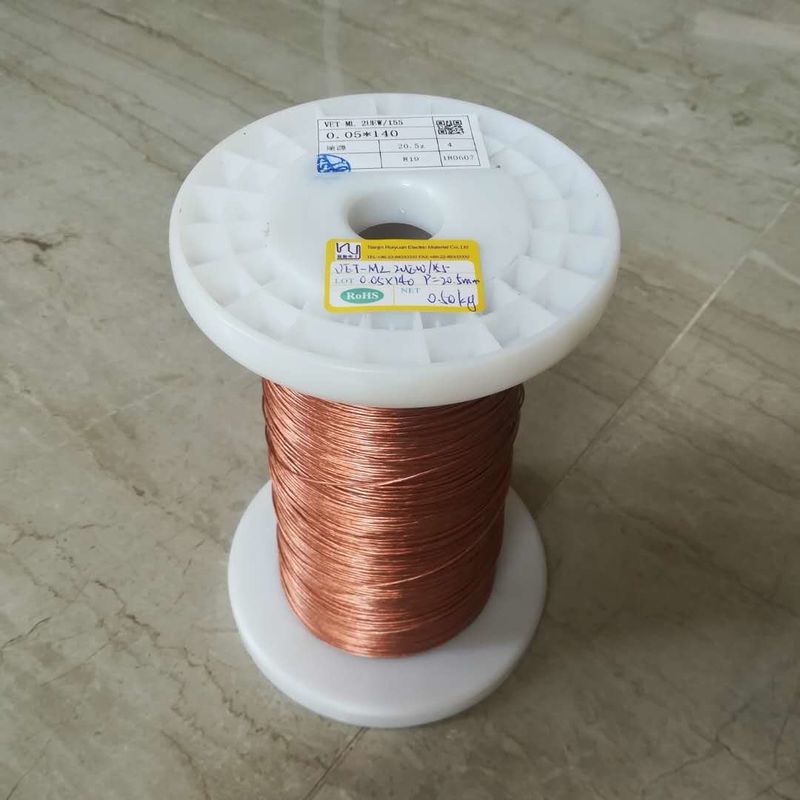

0.1mm Solvent bondable manget wire Copper Litz Wire For Transformer
Litz wire is usually used to make high frequency inductive components, such as high frequency transformers and inductive coils. Its special structural design can reduce AC losses and improve the efficiency of high frequency circuits.The size of Litz wire can depend on the specific application requirements, and the appropriate size will usually be selected according to the operating frequency and power of high frequency circuits.
|
Item |
Standard |
Test value |
||
|
Apperance |
Smooth |
OK |
OK |
OK |
|
Single wire outer diameter |
0.118-0.14 |
0.120 |
0.122 |
0.123 |
|
Conductor diameter |
0.100±0.008 |
0.10 |
0.10 |
0.10 |
|
Construction (strands*single wire) |
7/0.10 |
7/0.10 |
7/0.10 |
7/0.10 |
|
Stranding direction |
S |
S |
S |
S |
|
Pitch(mm) |
9.18±15% |
9.18 |
9.18 |
9.18 |
|
Pinhole |
<7 |
0 |
1 |
0 |
|
Breakdown voltage |
>2000V |
3900V |
3800V |
4000V |
