| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Product Category: | 7 Strands Solvent Self Adhesive Litz Wire For Motor Winding Coils | Pinhole: | <7 |
|---|---|---|---|
| No. Of Strands: | 7 | Construction (strands*single Wire): | 7/0.10 |
| Diameter: | 0.1mm | Key Word: | 7 Strands Solvent Self Adhesive Litz Wire For Motor Winding Coils |
| Insulation: | Enamel | Thermal Grade: | 155/180 |
| High Light: | Solvent Self Adhesive Litz Wire,7 Strands Litz Wire,Motor Winding Litz Wire |
||

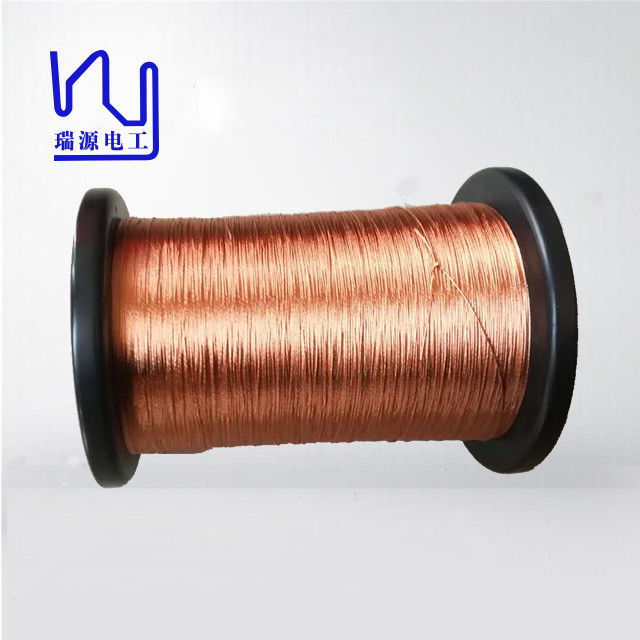

7 Strands Solvent Self Adhesive Litz Wire for Motor Winding coils
As a self adhesive wire, this litz wire eliminates the need for additional bonding agents, saving time and effort during the installation process. The wire is easy to apply and adheres to surfaces quickly and securely, ensuring a stable connection. The stranded design of this wire allows for flexibility and durability, making it a versatile option for various applications.
The hot wind self adhesive litz wire is ideal for use in motors, transformers, and other electrical devices that require a reliable and efficient wiring solution. Its small diameter and pinhole count make it suitable for use in applications where space is limited and precision is crucial. The wire's ability to withstand high temperatures makes it a reliable option for use in harsh environments where other wires may fail.
|
Item |
Standard |
Test value |
||
|
Apperance |
Smooth |
OK |
OK |
OK |
|
Single wire outer diameter |
0.118-0.14 |
0.120 |
0.122 |
0.123 |
|
Conductor diameter |
0.100±0.008 |
0.10 |
0.10 |
0.10 |
|
Construction (strands*single wire) |
7/0.10 |
7/0.10 |
7/0.10 |
7/0.10 |
|
Stranding direction |
S |
S |
S |
S |
|
Pitch(mm) |
9.18±15% |
9.18 |
9.18 |
9.18 |
|
Pinhole |
<7 |
0 |
1 |
0 |
|
Breakdown voltage |
>2000V |
3900V |
3800V |
4000V |
