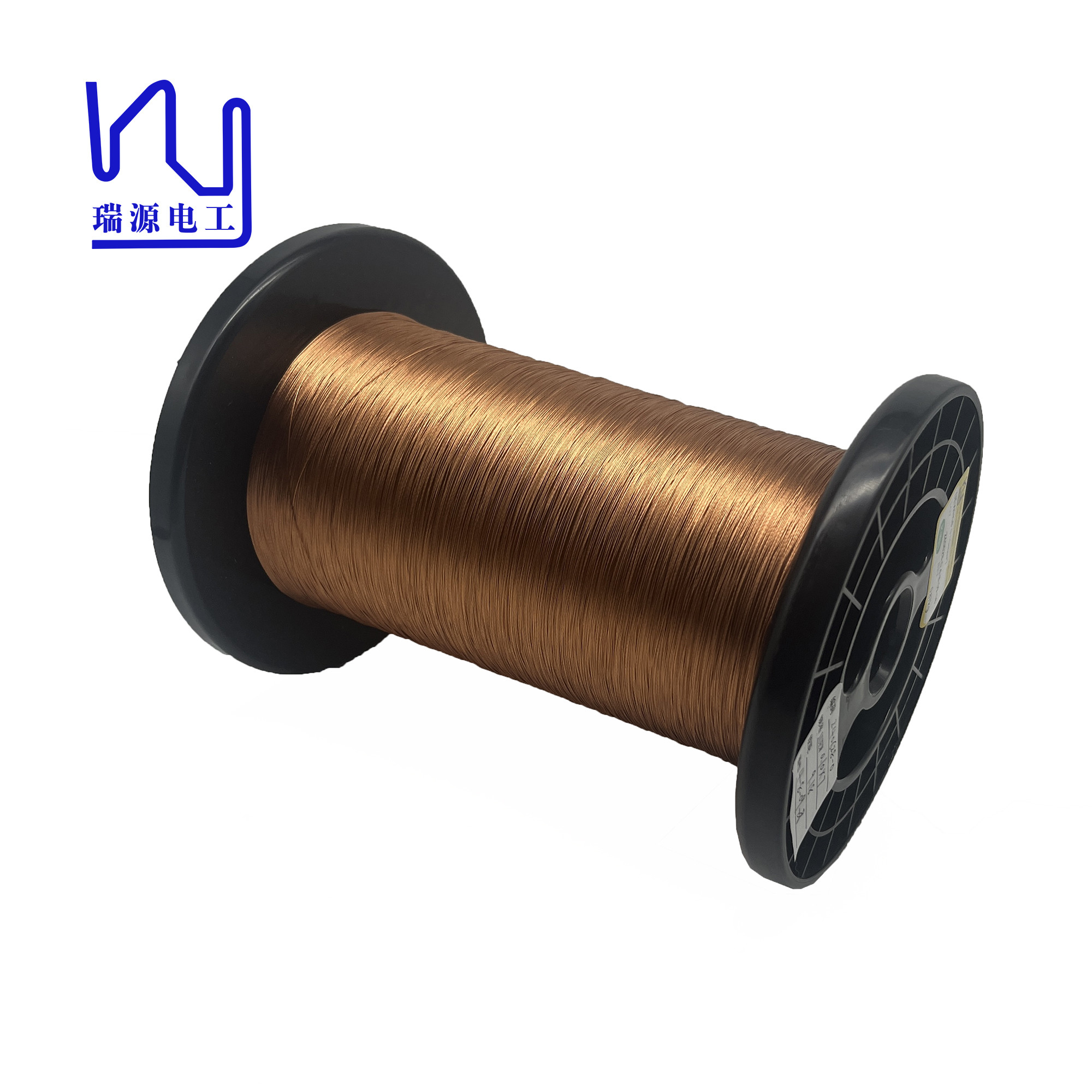

0.1mmx7 Self Adhesive Copper Litz Wire For Motor Coils

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.1mmx7 Self Adhesive Copper Litz Wire For Motor Coils	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Conductor:	Copper
Insulation:	Enamel	Rated Temperature:	180
Key Word:	0.1mmx7 Self Adhesive Copper Litz Wire For Motor Coils	No. Of Strands:	7
Highlight:	0.1mmx7 self adhesive copper litz wire , 0.1mm copper litz wire , copper litz wire For Motor Coils

Product Description

0.1mmx7 self adhesive copper litz wire for motor coils

Our self-adhesive litz wire is a game changer for electrical and electronic applications. It is specifically designed to provide superior bonding capabilities and is available in hot air self-adhesive and alcohol self-adhesive stranded wires.

This versatility allows seamless integration into different manufacturing processes, providing tailor-made solutions for specific requirements. In addition, we offer low-volume customization services, ensuring our customers receive exactly the wire they need for their unique projects.

Item	Standard	Test value
Apperance	Smooth	OK	OK	OK
Single wire outer diameter	0.118-0.14	0.120	0.122	0.123
Conductor diameter	0.100±0.008	0.10	0.10	0.10
Construction (strands*single wire)	7/0.10	7/0.10	7/0.10	7/0.10
Stranding direction	S	S	S	S
Pitch(mm)	9.18±15%	9.18	9.18	9.18
Pinhole	<7	0	1	0
Breakdown voltage	>2000V	3900V	3800V	4000V
