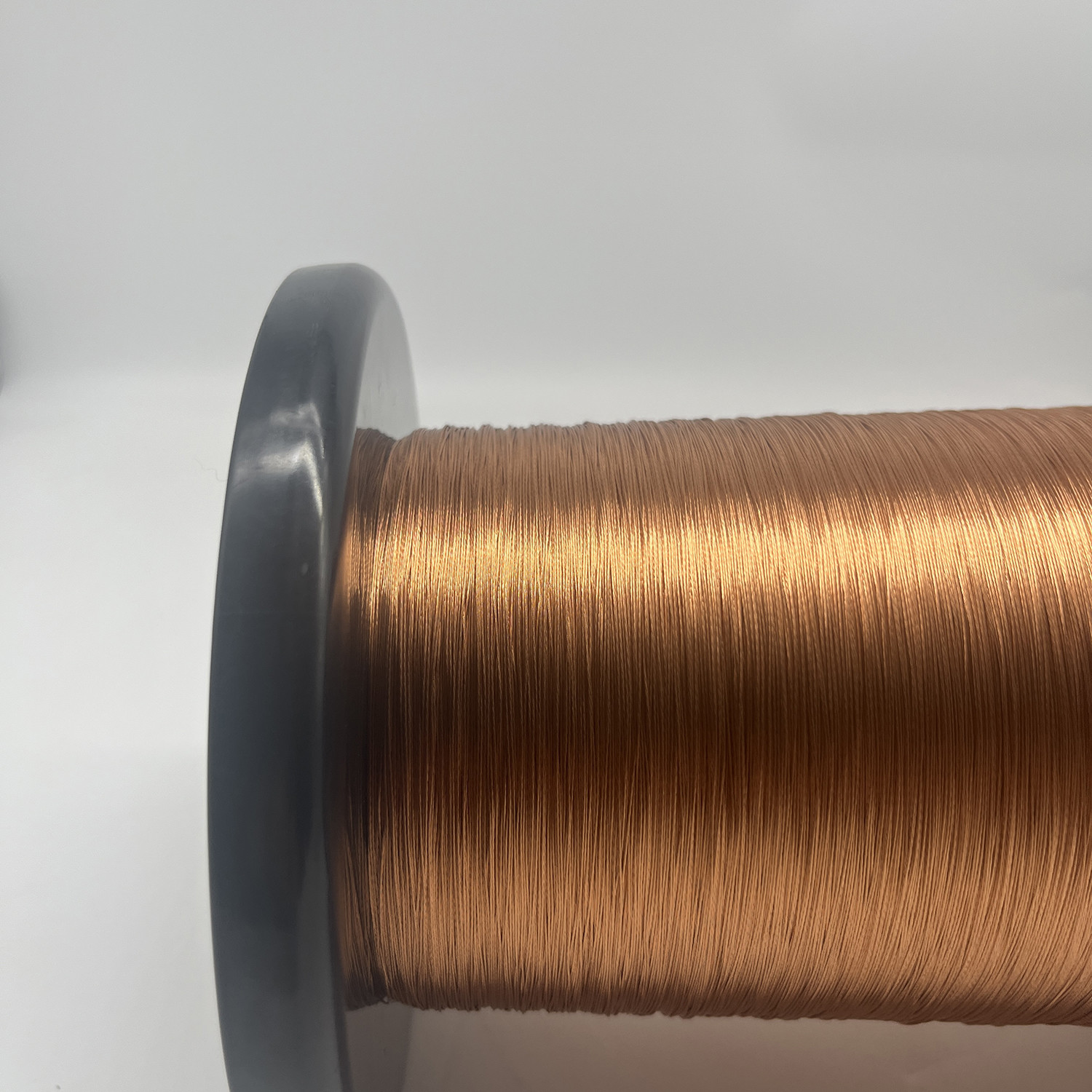

UEWH 0.1mmx7 High Frequency Litz Wire Copper Stranded Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	UEWH 0.1mmx7 High Frequency Litz Wire Copper Stranded Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Conductor:	Copper
Insulation:	Enamel	Rated Temperature:	180
Key Word:	UEWH 0.1mmx7 High Frequency Litz Wire Copper Stranded Wire	No. Of Strands:	7
Highlight:	UEWH High Frequency litz wire , 0.1mmx7 High Frequency litz wire , UEWH Copper stranded litz wire

Product Description

UEWH 0.1mmx7 High Frequency litz wire Copper stranded wire

The self-adhesive copper litz wire, a versatile, high-performance solution for a variety of applications. This litz wire is carefully designed with a single wire diameter of 0.1 mm and consists of 7 strands for excellent flexibility and conductivity.

The wire is designed with solvent self-adhesive properties to ensure a safe and reliable connection. With a heat resistance rating of 180 degrees, this litz wire is able to withstand harsh working conditions, making it ideal for a variety of industrial and commercial uses.

Item	Standard	Test value
Apperance	Smooth	OK	OK	OK
Single wire outer diameter	0.118-0.14	0.120	0.122	0.123
Conductor diameter	0.100±0.008	0.10	0.10	0.10
Construction (strands*single wire)	7/0.10	7/0.10	7/0.10	7/0.10
Stranding direction	S	S	S	S
Pitch(mm)	9.18±15%	9.18	9.18	9.18
Pinhole	<7	0	1	0
Breakdown voltage	>2000V	3900V	3800V	4000V
