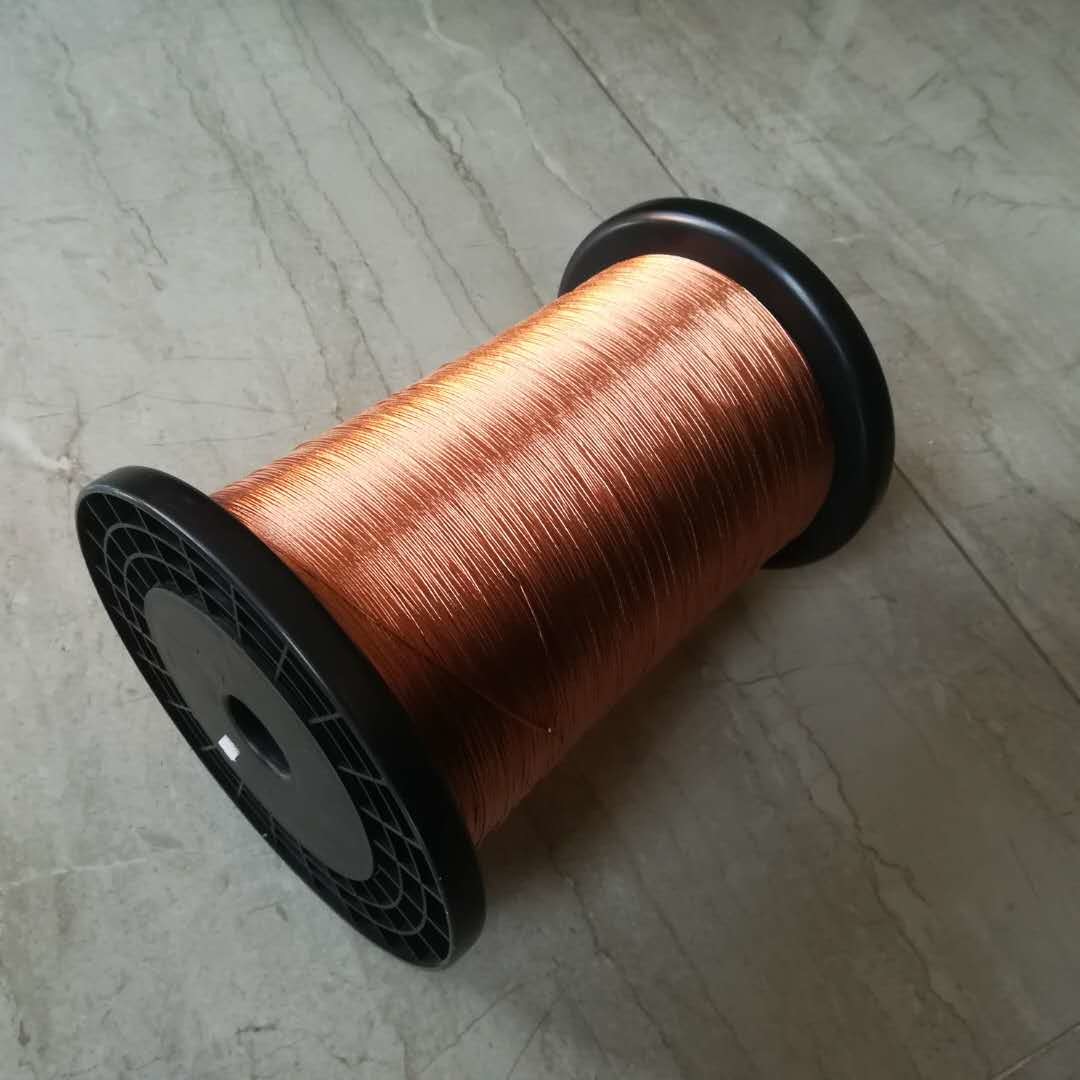

UL Certified Class H Insulated Copper Stranded Wire Litz Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: Customized 0.07mm X 200 High Frequency Copper Litz WireUL Certified Class H Insulated Copper Stranded Wire Litz Wire
Diameter: 0.07mm Conductor: Copper
Insulation: Enamel Rated Temperature: 155
Key Word: UL Certified Class H Insulated Copper Stranded Wire Litz Wire No. Of Strands: 200
High Light:

Class H Litz Wire


Insulated Copper Stranded Wire


UL Certified Litz Wire

Product Description

UL Certified Class H Insulated Copper Stranded Wire Litz Wire


Litz wire has many applications in the field of signal transmission. Due to its special structure and design, Litz wire can effectively reduce the uneven current density of AC current inside the wire, thereby improving high-frequency signal transmission performance.


The following are some of the main applications of Litz wire in the field of signal transmission:


Wireless communications: Litz wire is often used to make wireless communications antennas, especially in applications that require processing of high-frequency signals and microwave signals. The selection of its structure and materials ensures even distribution of high-frequency signals inside the wire, thereby improving the performance and transmission efficiency of the antenna.


Electromagnetic field detection: In the field of electromagnetic field detection, Litz wire is also widely used in the production of receiving coils and sensors, which can improve the sensitivity and accuracy of receiving electromagnetic signals.


High-frequency signal transmission: Litz wire is also used in high-frequency signal transmission lines. Its design can reduce skin effect and current concentration, thereby reducing signal loss and distortion, and improving the quality and stability of signal transmission.


Product name: 0.07mm x 200 strands, thermal grade 155



Single wire diameter


Conductor diameter (mm)

Max. 0.091

Max.O.D. (mm)


Max. Resistance (Ω/km at20℃)


Mini breakdown voltage (V)


Pitch (pcs)
