Certification: | ISO9001/ISO14001/UL/SGS | Name: | 0.125mm 0.15mm 0.2mm High Frequency Magnet Multi Strands Litz Wire Enameled Copper |
---|---|---|---|
Diameter: | 0.125mm | Conductor: | Copper |
Insulation: | Enamel | Rated Temperature: | 155 |
Key Word: | 0.125mm 0.15mm 0.2mm High Frequency Magnet Multi Strands Litz Wire Enameled Copper | No. Of Strands: | 2 |
High Light: | 0.125mm litz magnet wire,multi strands litz magnet wire,0.15mm litz copper wire |
0.125mm 0.15mm 0.2mm High Frequency Magnet Multi Strands Litz Wire Enameled Copper
We can also produce according to your customized needs for colors, such as red, green, yellow, etc.

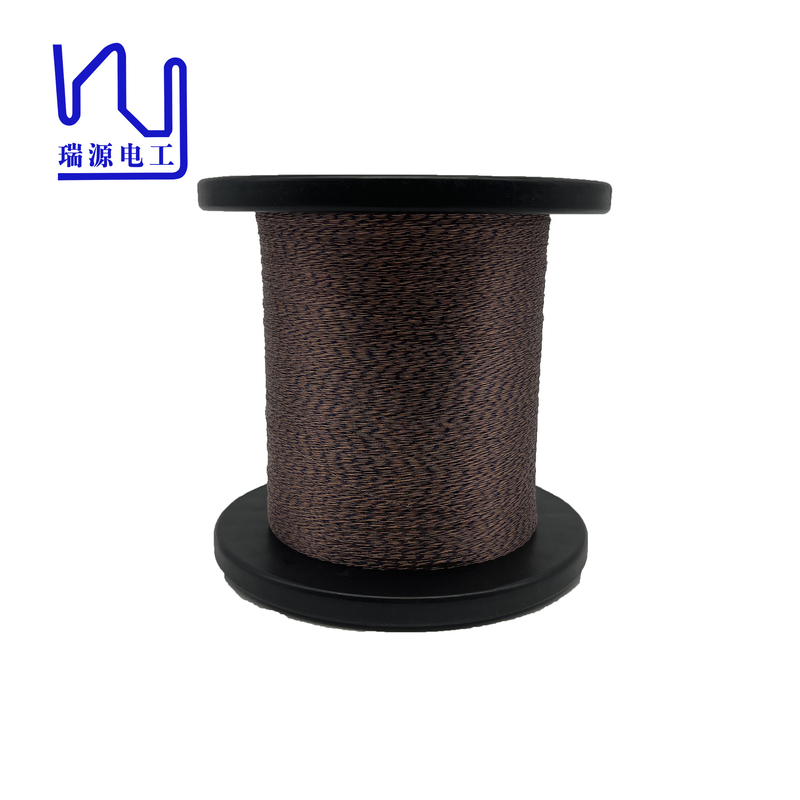

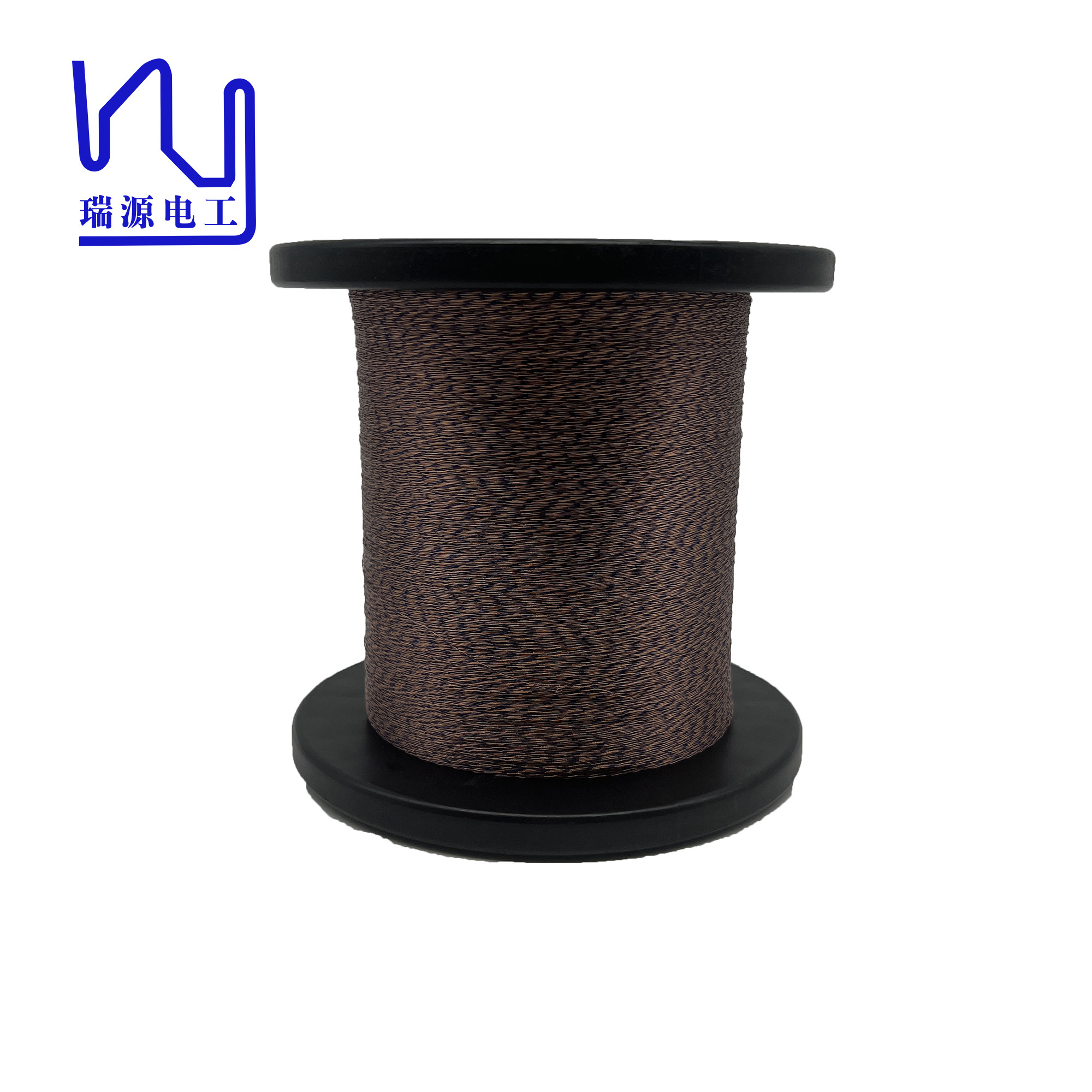

This natural and blue 2-strand litz wire has a single wire diameter of 0.125mm. Litz wire has many advantages that make it widely used in many industries.
Enameled copper stranded wire is known for its high-quality conductive properties. The use of pure copper as the conductor material ensures the stability and reliability of current conduction, thereby meeting the electrical energy needs of various electrical equipment.
The enameled insulation layer of the Litz wire has been carefully processed and has excellent insulation properties, which effectively isolates the wire from interference with the external environment and extends the service life of the wire.
Description Conductor diameter*Strand number |
1UEW 0.125*2(mm) | Test result(mm) | |
Single wire |
Conductor diameter(mm) | 0.125±0.003 | 0.125-0.127 |
Outer conductor diameter(mm) | 0.134-0.155 | 0.138-0.145 | |
Maximal overall diameter (mm) | 0.35 | 0.30 | |
Pitch(mm) | 4±1 | √ | |
Max resistance (Ω/Km at20℃) | Max 0.7375 | 0.6947 | |
Mini breakdown voltage (V ) | 1300 | 2000 | |
