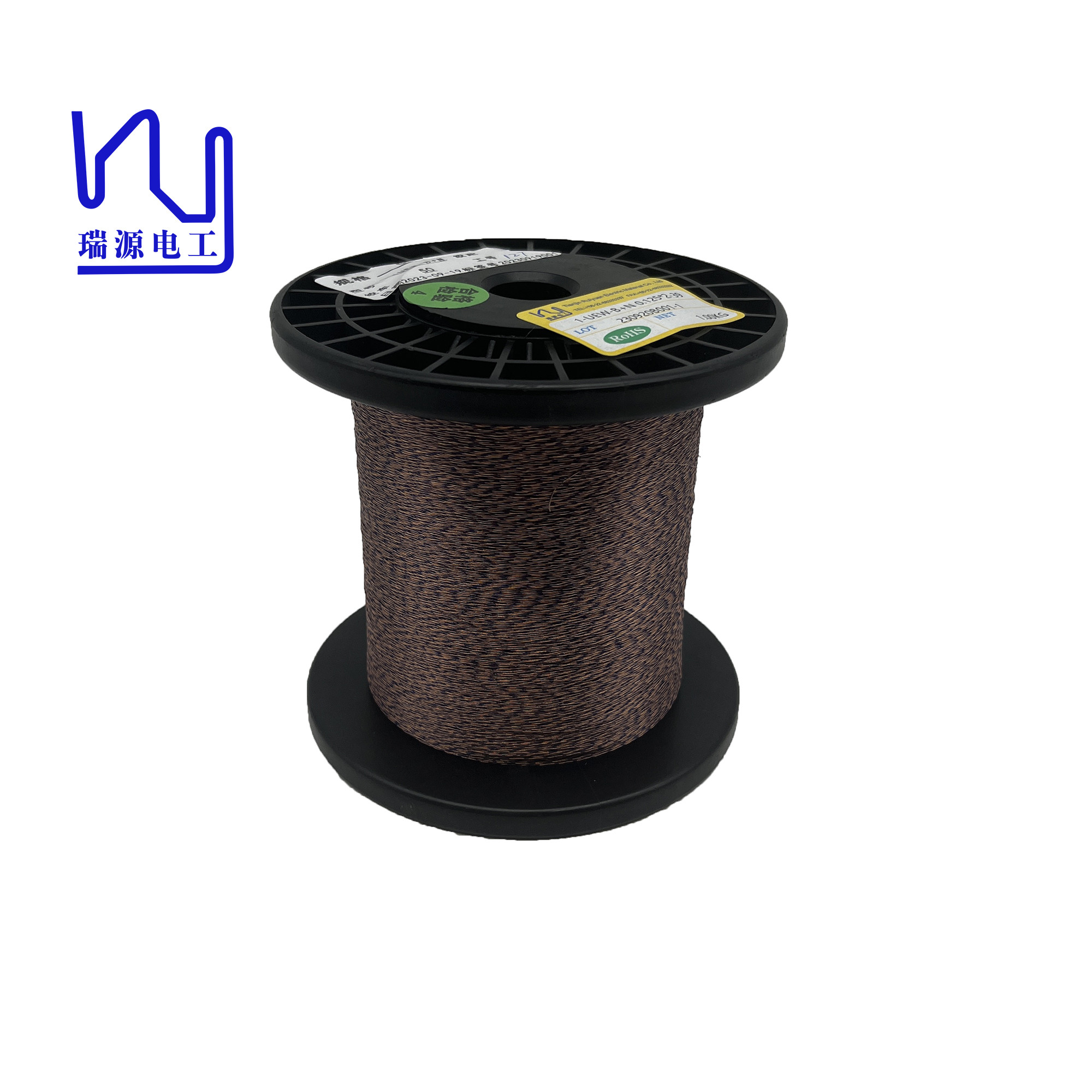

Customizable Copper Litz Wire Multi Color 2 Strands Twisted For Hf Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: Customizable Multi Color 2 Strands Twisted Enameled Copper Litz Wire For HF Transformer Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.125mm Conductor: Copper
Insulation: Enamel Rated Temperature: 155
Key Word: Customizable Multi Color 2 Strands Twisted Enameled Copper Litz Wire For HF Transformer No. Of Strands: 2
High Light:

copper litz wire enamelled

,

hf transformer copper litz wire

,

hf transformer litz copper wire


Product Description

Customizable Multi Color 2 Strands Twisted Enameled Copper Litz Wire For HF Transformer



Litz wire, as a special enameled copper stranded wire, has become an ideal choice for all walks of life due to its high-quality electrical conductivity, wear resistance and corrosion resistance, as well as its unique two-color design.



We are willing to provide you with professional production services based on your customized requirements to ensure that your needs are met. Working with us, you will get excellent products and satisfactory services!



Description
Conductor diameter*Strand number
1UEW 0.125*2(mm) Test result(mm)


Single wire


Conductor diameter(mm) 0.125±0.003 0.125-0.127
Outer conductor diameter(mm) 0.134-0.155 0.138-0.145
Maximal overall diameter (mm) 0.35 0.30
Pitch(mm) 4±1
Max resistance (Ω/Km at20℃) Max 0.7375 0.6947
Mini breakdown voltage (V ) 1300 2000
Name

Customizable Multi Color 2 Strands Twisted Enameled Copper Litz Wire For HF Transformer

Key word

Customizable Multi Color 2 Strands Twisted Enameled Copper Litz Wire For HF Transformer



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Customizable Copper Litz Wire Multi Color 2 Strands Twisted For Hf Transformer 0
Customizable Copper Litz Wire Multi Color 2 Strands Twisted For Hf Transformer 1
Customizable Copper Litz Wire Multi Color 2 Strands Twisted For Hf Transformer 2
Customizable Copper Litz Wire Multi Color 2 Strands Twisted For Hf Transformer 3
