Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | Copper litz wire |
Minimum Order Quantity: | 10kg |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Name: | UEW H 0.125mm High-frequency Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
---|---|---|---|
Diameter: | 0.125mm | Conductor: | Copper |
Insulation: | Enamel | Rated Temperature: | 155 |
Key Word: | UEW H 0.125mm High-frequency Litz Wire | No. Of Strands: | 2 |
Highlight: | 0.125mm enamel coated wire,high frequency enamel coated wire,enamel coated litz copper wire |

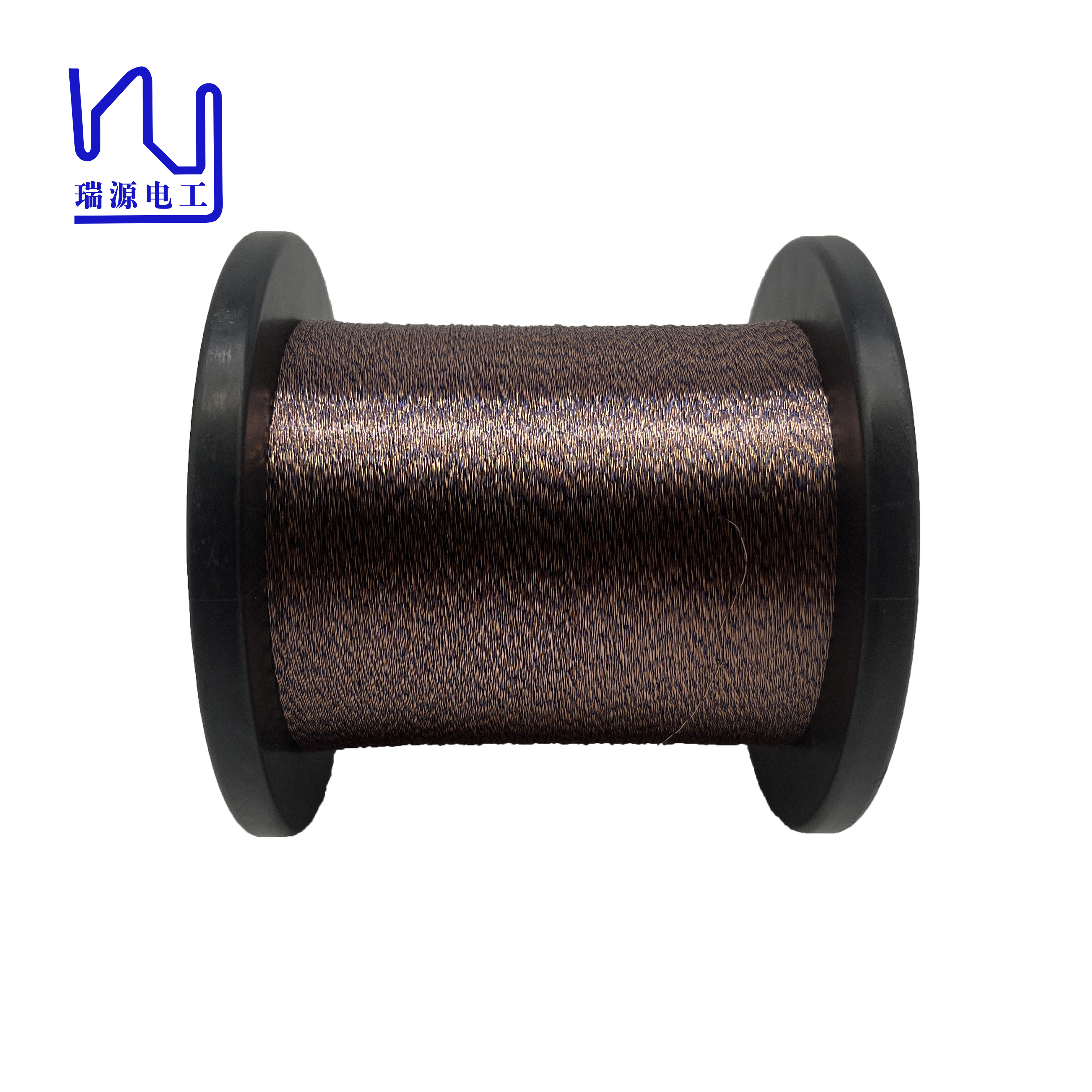

UEW H 0.125mm High-frequency Litz Wire
Litz wire has a wide range of uses. It can be used as a cable conductor to transmit electrical energy or signals to ensure the normal operation of the circuit.
At the same time, Litz wire can also be used for internal connections of various electronic products to ensure the stability and efficiency of the circuit.
Description Conductor diameter*Strand number |
1UEW 0.125*2(mm) | Test result(mm) | |
Single wire |
Conductor diameter(mm) | 0.125±0.003 | 0.125-0.127 |
Outer conductor diameter(mm) | 0.134-0.155 | 0.138-0.145 | |
Maximal overall diameter (mm) | 0.35 | 0.30 | |
Pitch(mm) | 4±1 | √ | |
Max resistance (Ω/Km at20℃) | Max 0.7375 | 0.6947 | |
Mini breakdown voltage (V ) | 1300 | 2000 | |
Name |
UEW H 0.125mm High-frequency Litz Wire |
||
Key word |
UEW H 0.125mm High-frequency Litz Wire |
