| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom UEW 155 Litz Wire 2 Shares Enameled Vanish Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.125mm | Conductor: | Copper |
| Insulation: | Enamel | Rated Temperature: | 155 |
| Key Word: | Solderable Blue Color 0.125mm*2 Copper Winding Using Stranded WireCustom UEW 155 Litz Wire 2 Shares Enameled Vanish Copper Wire | No. Of Strands: | 2 |
| High Light: | copper litz wire enamel coated,uew 155 copper litz wire,litz copper wire enamel coated |
||

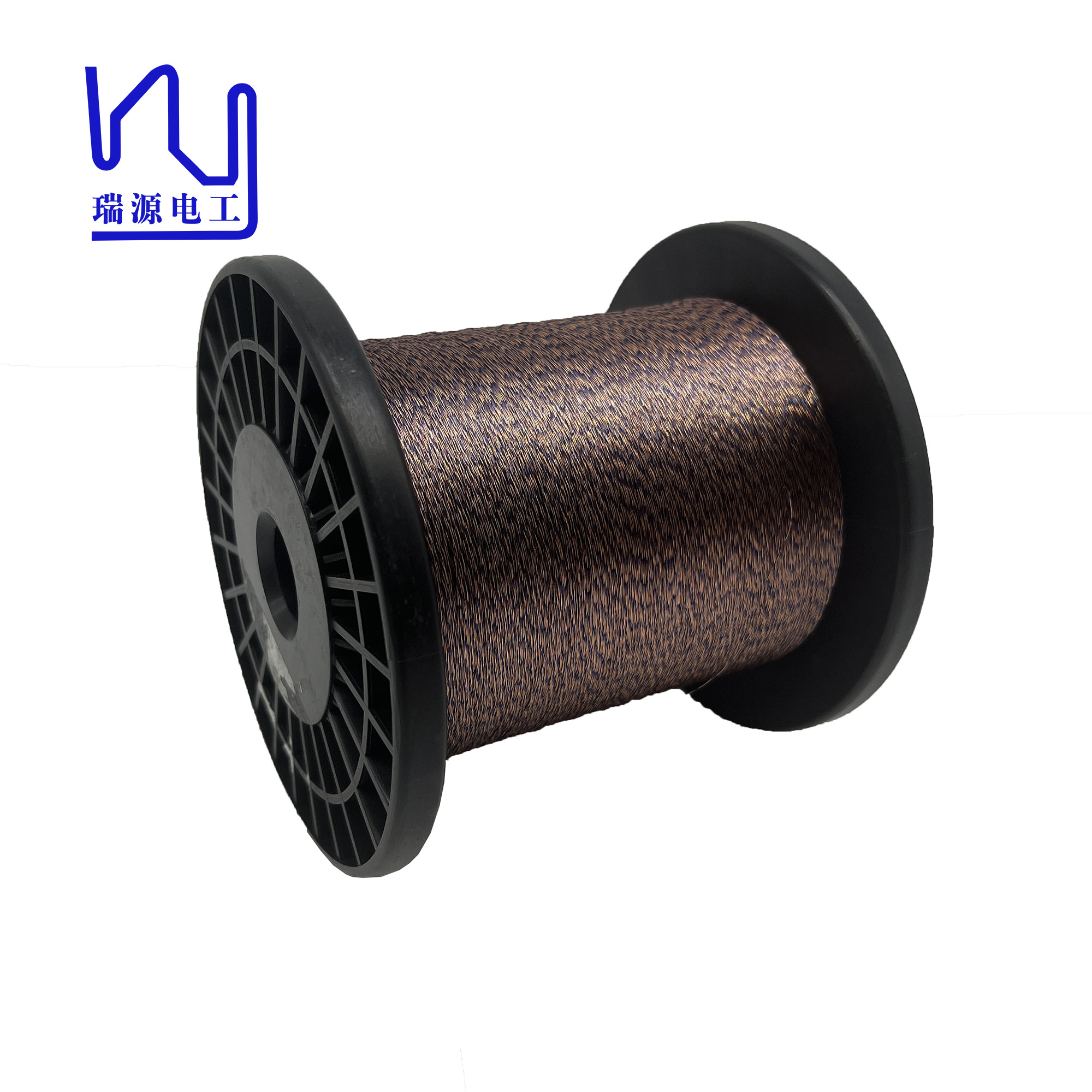

Custom UEW 155 Litz Wire 2 Shares Enameled Vanish Copper Wire
The enameled insulation layer of the Litz wire has been carefully processed and has excellent insulation properties, which effectively isolates the wire from interference with the external environment and extends the service life of the wire.
Enameled copper stranded wire is also wear-resistant and corrosion-resistant, making it perform well in harsh working environments. The specially treated outer layer resists friction and chemical reactions, maintaining the integrity and stability of the wire.
This makes Litz wire the first choice in many industrial fields, such as electrical equipment, communication equipment, instrumentation, and even home appliances.
| Description Conductor diameter*Strand number |
1UEW 0.125*2(mm) | Test result(mm) | |
Single wire |
Conductor diameter(mm) | 0.125±0.003 | 0.125-0.127 |
| Outer conductor diameter(mm) | 0.134-0.155 | 0.138-0.145 | |
| Maximal overall diameter (mm) | 0.35 | 0.30 | |
| Pitch(mm) | 4±1 | √ | |
| Max resistance (Ω/Km at20℃) | Max 0.7375 | 0.6947 | |
| Mini breakdown voltage (V ) | 1300 | 2000 | |
| Name | Custom UEW 155 Litz Wire 2 Shares Enameled Vanish Copper Wire | ||
| Key word | Custom UEW 155 Litz Wire 2 Shares Enameled Vanish Copper Wire | ||
