| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | 0.05mm Taped Litz Wire Copper Insulated Stranded RF Transformer PI Insulation Ruiyuan |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | 0.05mm Taped Litz Wire Copper Insulated Stranded RF Transformer PI Insulation Ruiyuan |
| No. Of Strands: | 250 | ||
| High Light: | pi insulation copper litz wire,30 awg copper litz wire,30 awg stranded copper wire |
||

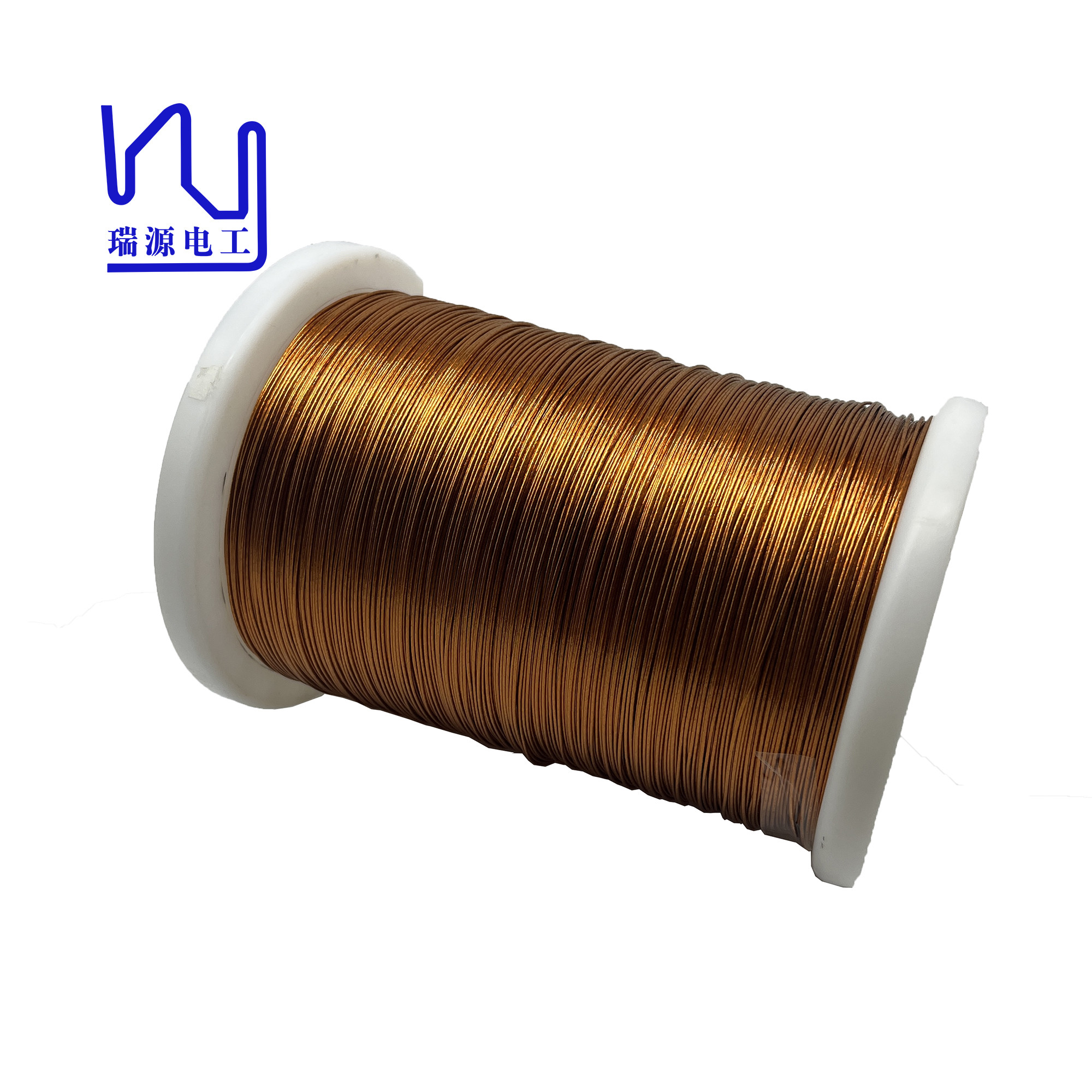

0.05mm Taped Litz Wire Copper Insulated Stranded RF Transformer PI insulation Ruiyuan
The wire can also be used in the automotive industry, such as the manufacturing of automotive wiring harnesses and the connection of battery components to ensure the reliable operation of automotive electrical systems.
In the field of new energy, polyesterimide film-coated litz wire also plays an important role, providing reliable solutions for circuit connections in wind power generation and solar power generation.
| Outgoing test report for litz wire served with tape | ||
| Name:Litz wire, class 155 | Spec:0.05*225 | |
| Tape Spec:0.05*6 | Model: 2UEW-F-2PI | |
| Item | Tech requirement | Test result |
| Single wire diameter(mm) | 0.058-0.069 | 0.058-0.061 |
| Conductor diameter(mm) | 0.05±0.003 | 0.048-0.050 |
| O.D.(mm) | ≤1.44 | 1.23-1.33 |
| Resistance Ω/m | ≤0.04551 | 0.04126 |
| Dielectric strngth (v) | ≥6000 | 15000 |
| Pitch(mm) | 29±5 | 27 |
| No. Of strand | 225 | 225 |
| Tape overlap% | ≥50 | 55 |
Name | 0.05mm High voltage PI taped copper litz wire |
Key word | 0.05mm High voltage PI taped copper litz wire |
Insulation | Enamel |
Thermal rating | 155 degree |
Diameter of the enameled copper wire | 0.05mm |
Number of strands | 225 |
Type | 2UEW-F-2PI 44AWG/0.05 225 High Frequancy Taped Copper Litz Wire |
