Name: High Frequency 0.025mm Copper Litz Wire Super Thin Strands
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	High Frequency 0.025mm Super Thin Strands Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.025mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	High Frequency 0.025mm Super Thin Strands Copper Litz Wire
No. Of Strands:	28
Highlight:	super thin copper litz wire , 0.025 mm copper litz wire , 0.025 mm enamelled copper wire

Product Description

High Frequency 0.025mm Super Thin Strands Copper Litz Wire

In the field of medical devices, Litz wire can be used in high-precision medical devices such as cardiac pacemakers, nerve electrical implantable devices in the body. In addition, Litz wire is widely used in aerospace, automotive and industrial fields.

Name:High Frequency 0.025mm Super Thin Strands Copper Litz Wire
Key word:High Frequency 0.025mm Super Thin Strands Copper Litz Wire
No.	Characteristics	Technical requests	Test Results
1	Surface	Good	OK
2	Single wire outer diameter (mm)	0.026-0.029	0.027
3	Single wire inner diameter(mm)	0.025±0.003	0.024
4	Overall diameter(mm)	Max. 0.183	0.17
5	Pitch(mm)	6.61	√
6	Breakdown Voltage	Min. 200V	1000V
7	Conductor Resistance Ω/m(20℃)	Max. 1.685	1.300

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

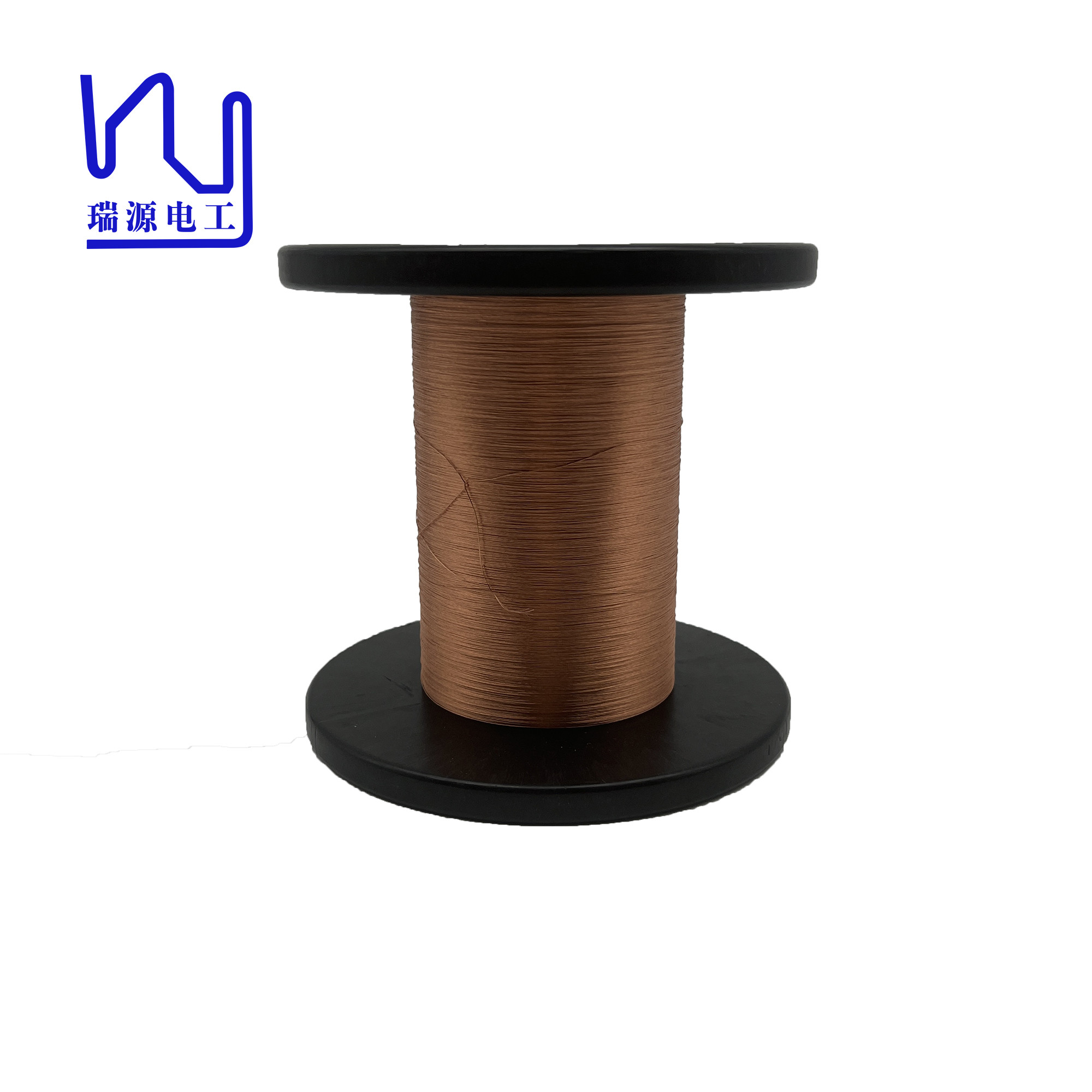

High Frequency 0.025mm Copper Litz Wire Super Thin Strands 0

High Frequency 0.025mm Copper Litz Wire Super Thin Strands 1

High Frequency 0.025mm Copper Litz Wire Super Thin Strands 2

High Frequency 0.025mm Copper Litz Wire Super Thin Strands 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

High Frequency 0.025mm Copper Litz Wire Super Thin Strands

super thin copper litz wire

0.025 mm copper litz wire

0.025 mm enamelled copper wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
